Brother PR600 - Y-Motor Final Assembly Removal; Y-Motor Disassembly

2 - 17
Feed unit
Main unit
Disassembly
3

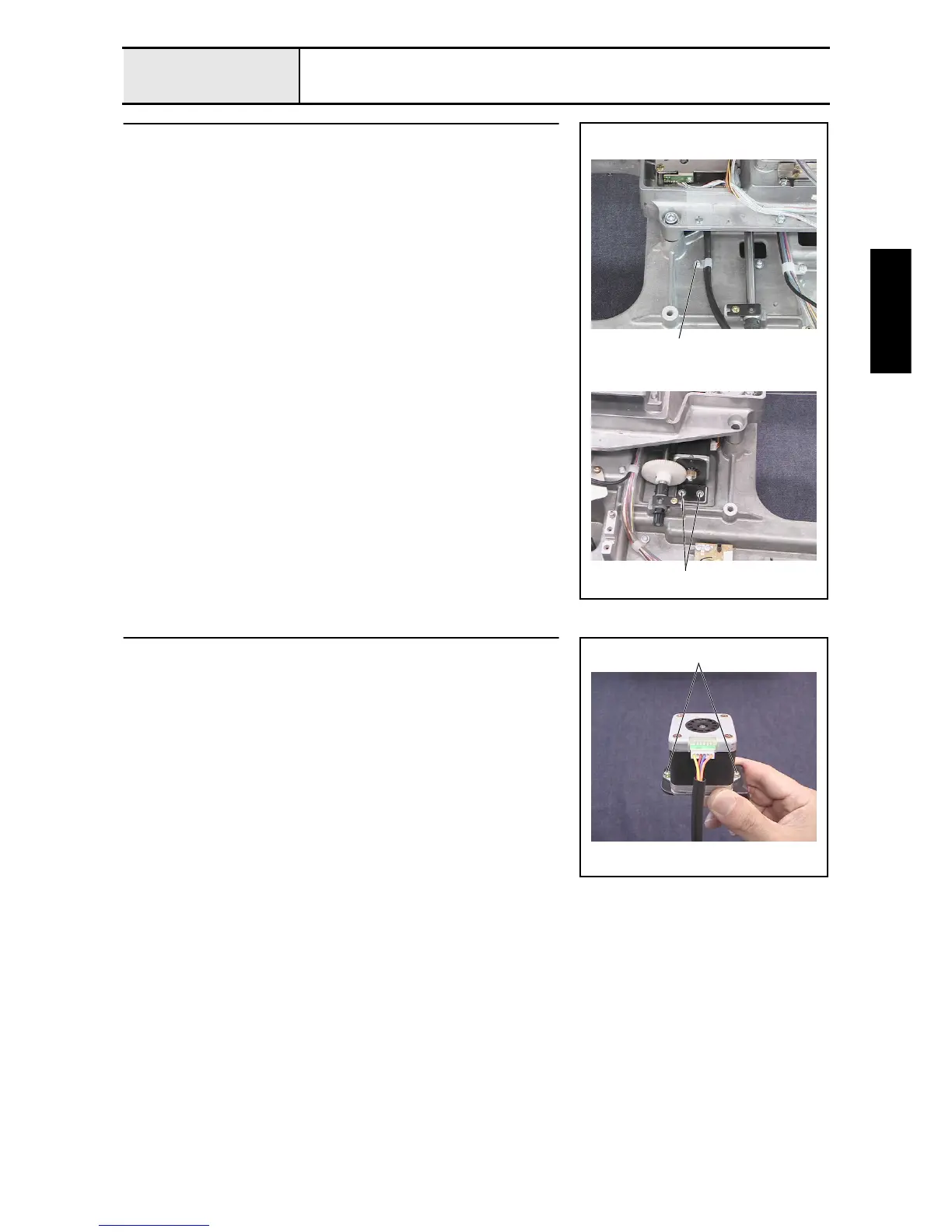

Y-motor final assembly removal
1. Remove the screw 1, and then remove the cord clamp NK-4N and the Y-
motor assembly's lead wire from the base frame.
2. Remove the 2 screws 2, and then remove the Y-motor final assembly.
1
2
4
Y-motor disassembly
1. Remove the 2 screws 1, and then remove the Y-motor assembly from the
Y-motor stay.
1
