Brother PR600 Service Manual

3 - 43
Upper shaft unit
Main unit
Assembly
7
Thread take-up driving lever final assembly attachment

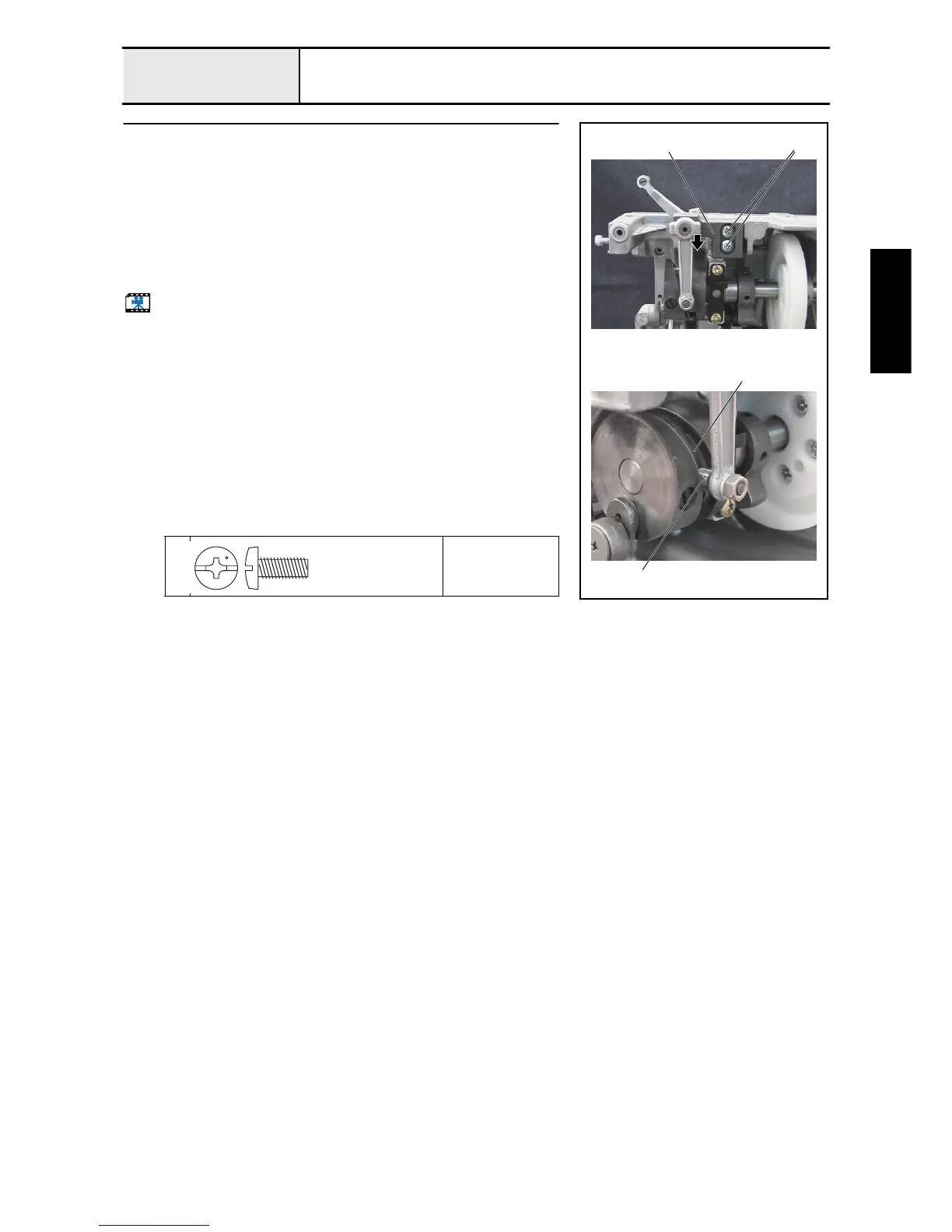

1. Attach the thread take-up driving lever final assembly 1 to the arm bed
with the 2 screws 1.
*Key point
• Align the roller 2 with the groove 3 on the thread take-up
cam.
• Press the bottom of the thread take-up driving lever final
assembly against the arm bed, and then secure them with the
2 screws 1.
Start movie clip (CD-ROM version only)
1
Torque
1.57 – 1.96 N-m
1
3
2
1
Screw, Bind
M5X12
Color; Silver
