Brother PR600 Service Manual

4 - 34
Adjustment XY-guide origin adjustment
1. Attach the hoop stay assembly to the feed unit.
2. Attach the LL-hoop to the hoop stay assembly.
3. Attach the embroidery sheet to the LL-hoop.

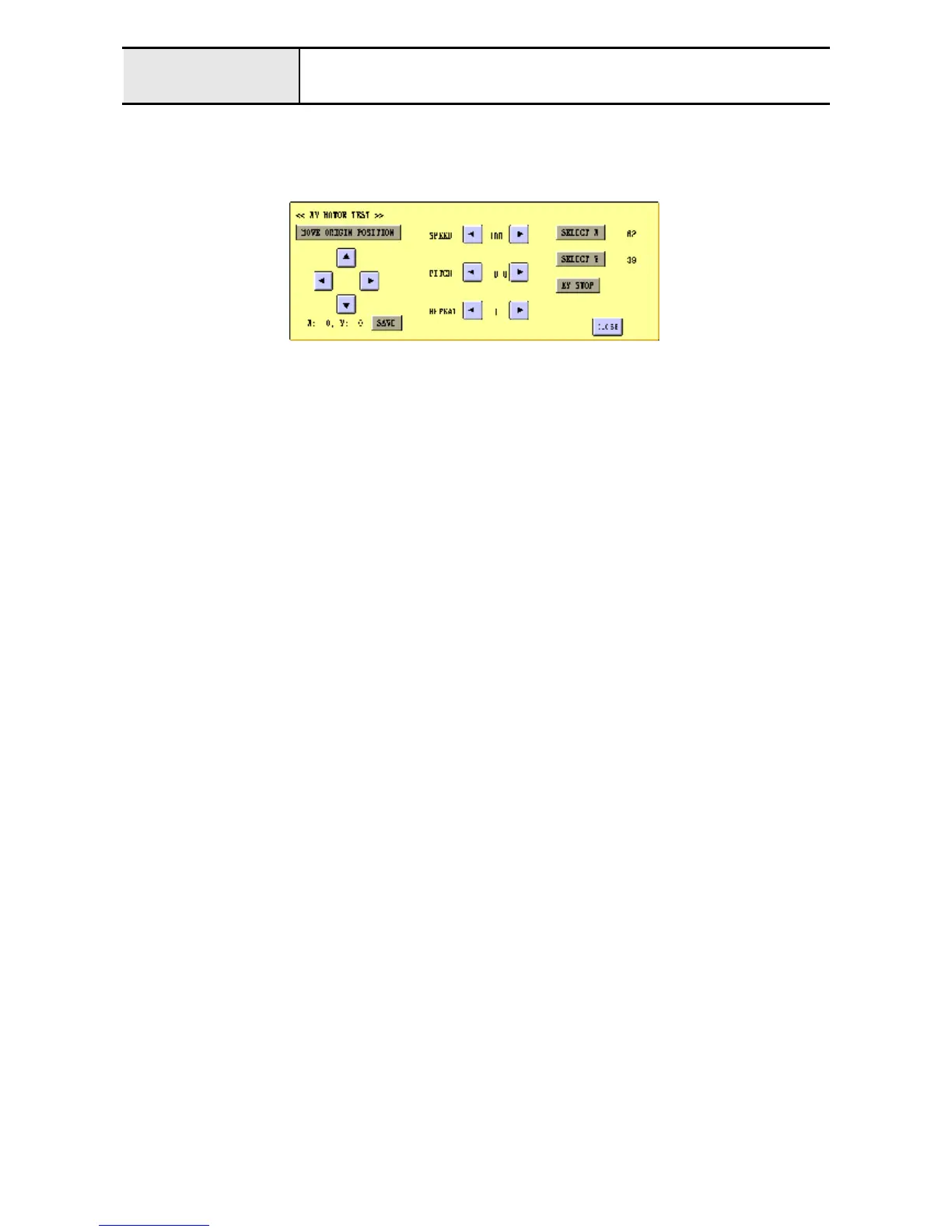

4. Enter the test mode, and press [MAIN BOARD TEST MODE] and then [XY MOTOR TEST].
5. Press [MOVE ORIGIN POSITION] to move the feed unit to its origin.
6. Use the [
↑
], [
↓
], [
←
] and [
→
] keys to adjust the position of the embroidery hoop so that the needle bar presser
is aligned with the hole on the embroidery hoop.
7. Press [SAVE].
