Brother PR600 Service Manual

2 - 23
Feed unit
Main unit
Disassembly
16

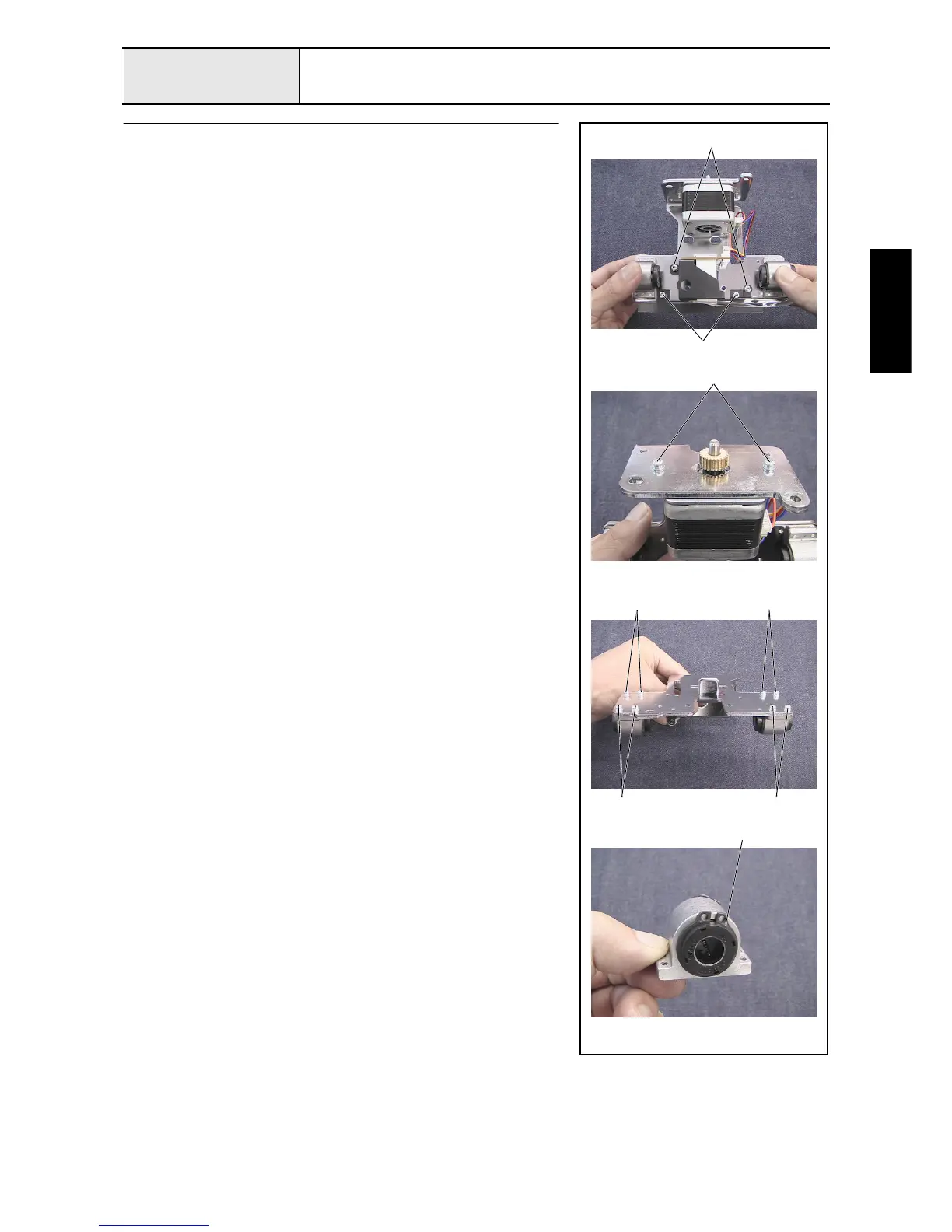

Y-carriage L disassembly
1. Remove the 2 screws 1, and then remove the connect PCB final assembly.
2. Remove the 2 screws 2, and then remove the Y-sensor dog.
3. Remove the 2 screws 3, and then remove the X-motor assembly.
4. Remove the 4 screws 4, and then remove the bearing case Y assembly (2
sets).
5. Remove the 2 external retaining rings C19, and then remove the linear
bearing (10) from the bearing case Y assembly (2 sets).
2
1
3
4 4
4 4
External retaining rings C19
