Brother PR600 Service Manual

4 - 17
Inspection and
Adjustment

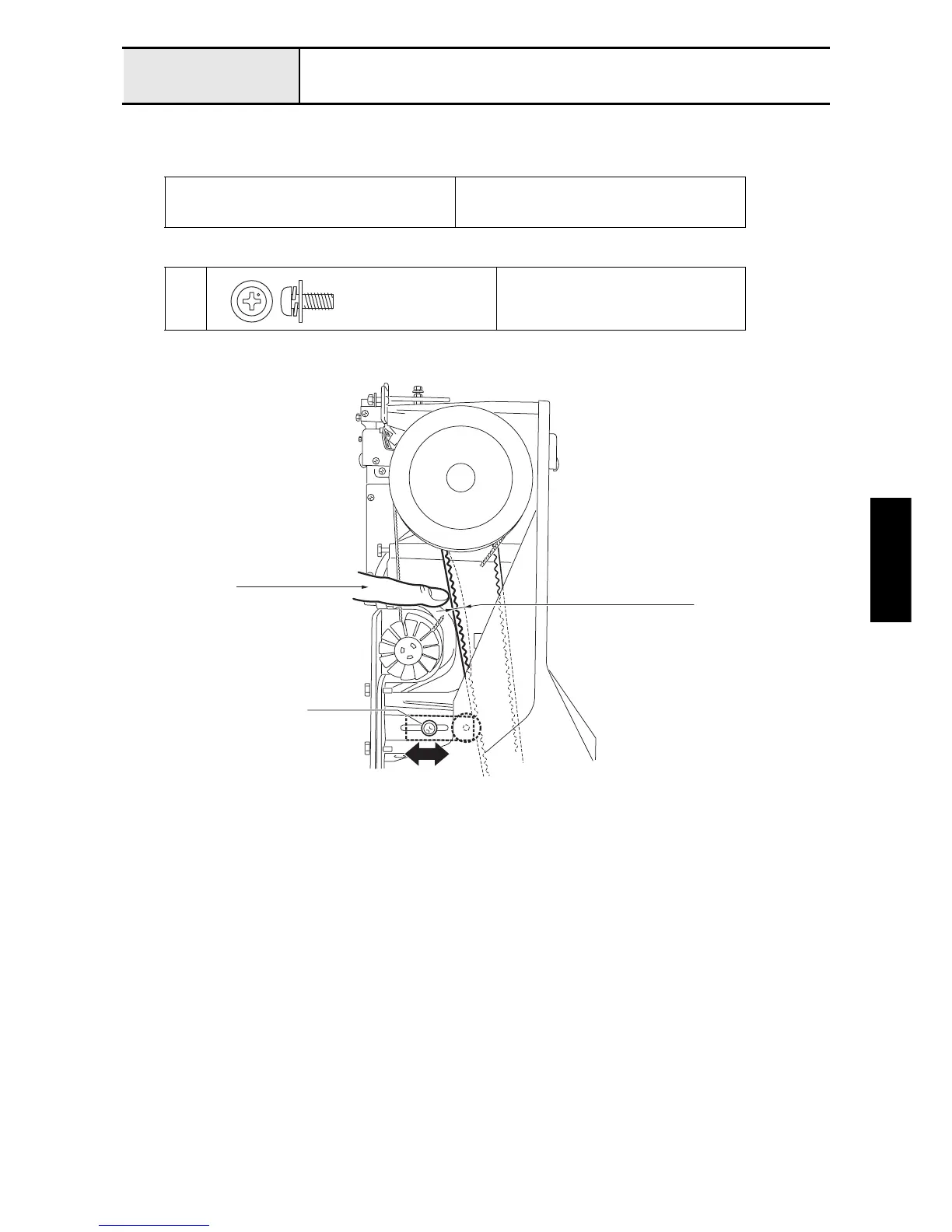

Adjustment Timing belt tension adjustment
1. Loosen the screw
1
.
2. Move the tension pulley right and left to adjust the timing belt tension.
3. Tighten the screw
1
.
Timing belt deflection when a load of approx.
1.96 N (200 g) is applied to the center of the
timing belt
3.0 - 4.0 mm
1
Torque
1.18 - 1.57 N-m
Screw, Pan (S/P washer)
M4X10DB
Color; Silver
1.96N (200g)
3.0 - 4.0mm
1
