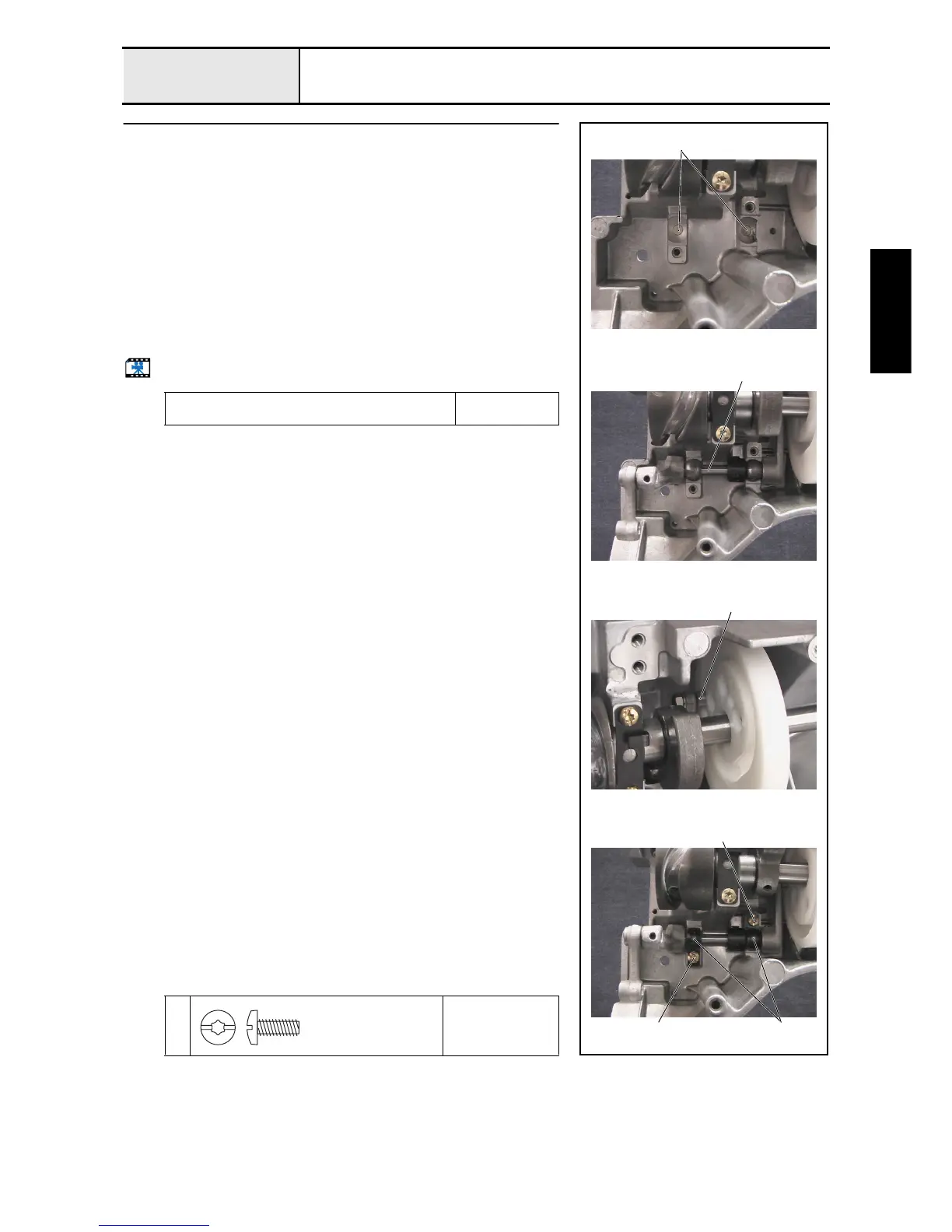

Upper shaft unit

Main unit

Assembly

Presser foot driving shaft assembly attachment

1. Apply turbine oil to the 2 felts 1.

2. Attach the felts to the lower shaft metal collars on the arm bed. (2

locations)

3. Align the presser foot driving shaft assembly's 2 2 lower shaft metals with

the lower shaft metal collar on the arm bed, and then attach the presser foot

driving shaft assembly to the arm bed.

*Key point

• Place the presser foot driving shaft assembly's roller 3 into

the groove on the presser foot cam.

4. Secure the 2 bushing pressers with the 2 screws 1.

5. Apply sewing-machine oil to the presser foot driving shaft assembly's

metal 4.

Start movie clip (CD-ROM version only)

Apply sewing-machine oil to the presser foot driving

shaft assembly's metal.

1 to 2 drops

Torque

1.47 –

1.96 N-m

1 4

Taptite, Bind S

M4X10

Color; Gold
