Brother PR600 Service Manual

3 - 63
Thread wiper unit
Main unit
Assembly
2

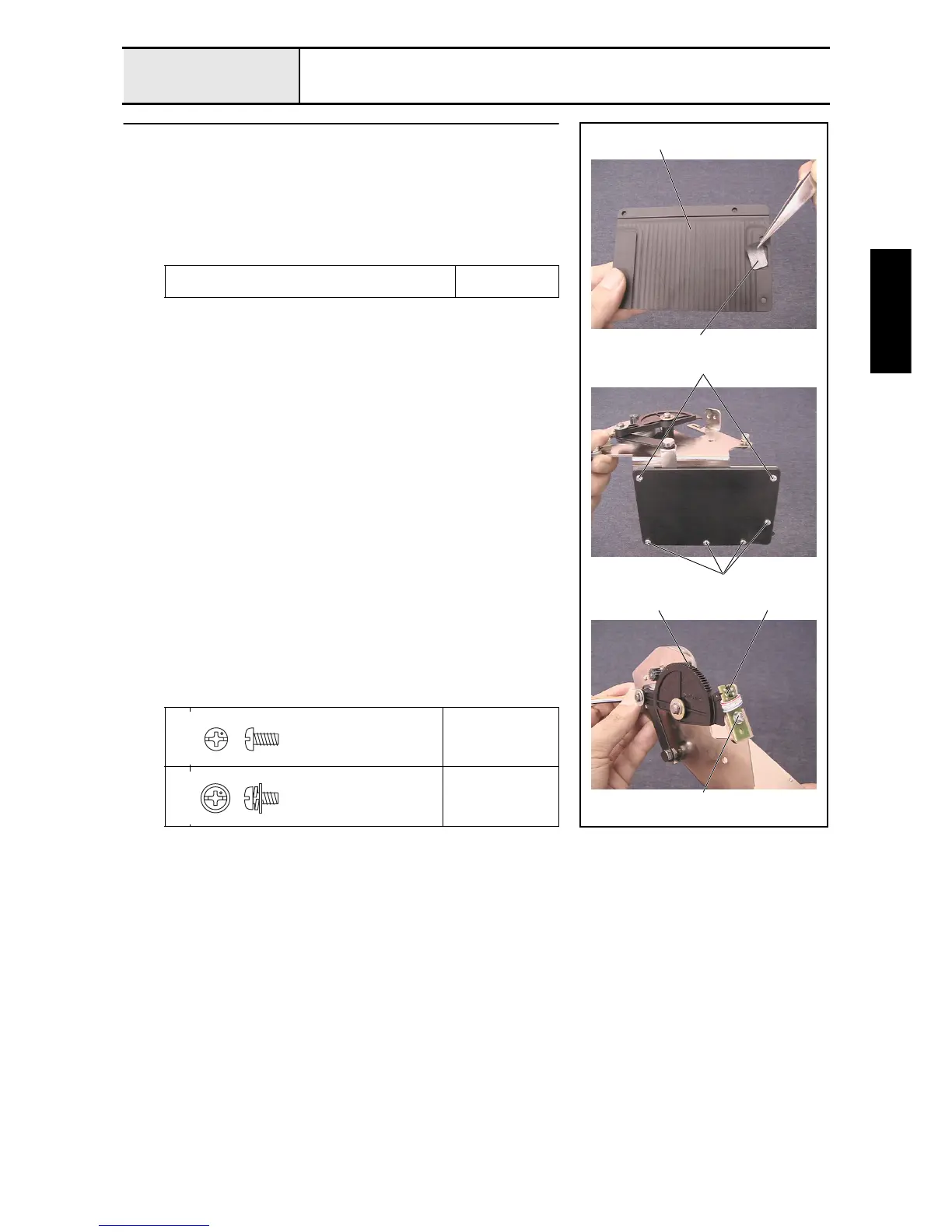

Wiper guide and wiper sensor attachment
1. Attach the wiper cushion 2 to the wiper guide 1.
2. Attach the wiper guide assembly to the wiper base assembly with the 6
screws 1.
3. Attach the wiper sensor assembly 3 to the wiper base assembly with the
screw 2.
4. Apply MOLYKOTE EM-30L grease to the wiper lever gear 4.
Apply MOLYKOTE EM-30L grease to the wiper lever
gear.
Size of a grain of
rice
1
Torque
0.59 – 0.78 N-m
2
Torque
0.59 – 0.78 N-m
3
1
2
2
4
2
2
Screw, Pan
M3X6
Color; Silver
Screw, Pan (S/P washer)
M3X6
Color; Silver
