Brother PR600 Service Manual

5 - 24

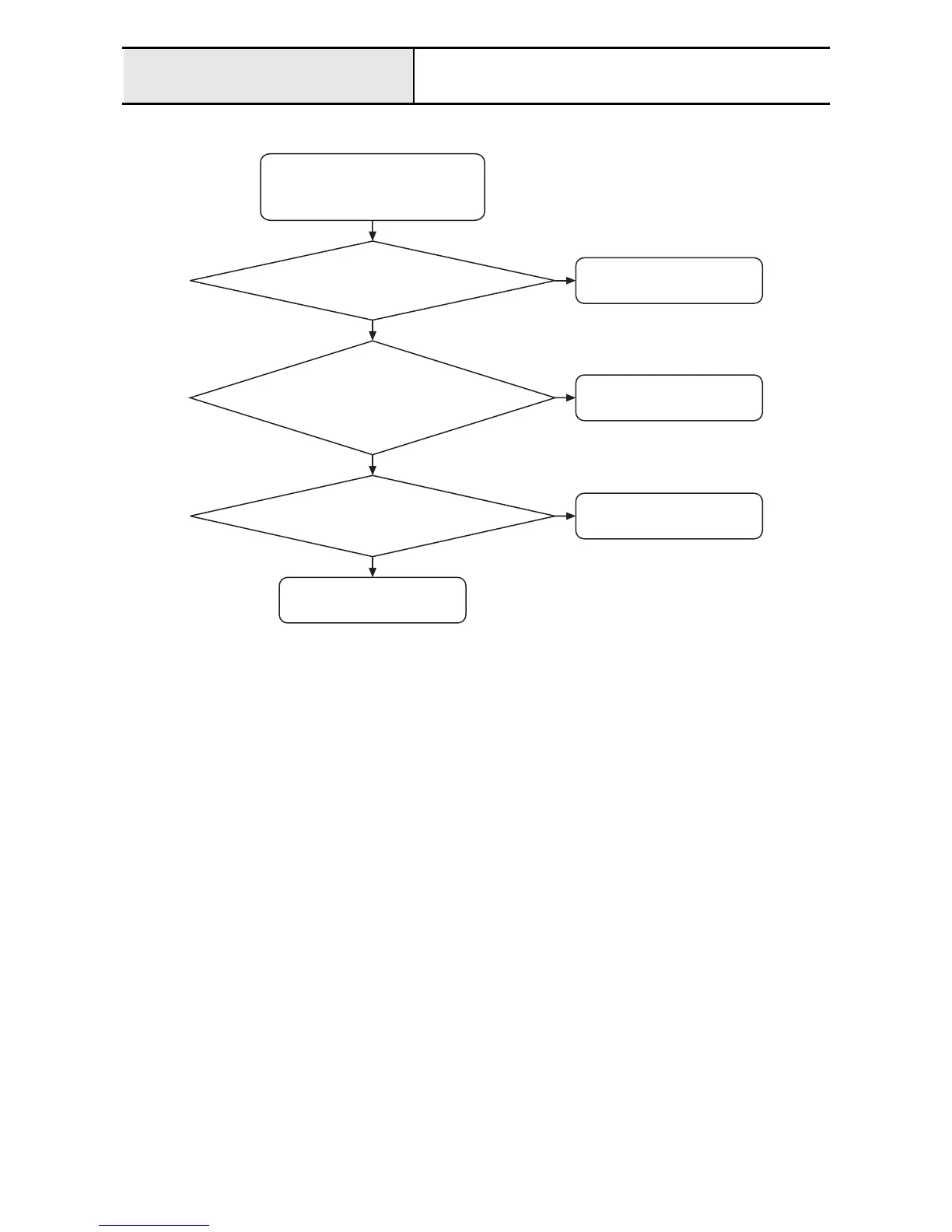

Failure Investigation for Electronic Parts Error message
• Main motor encoder signal error
• Main motor encoder connect error
(Dialog message)
Change main shaft encoder.
N
Y
Change Y area sensor PCB.
Is the main shaft sensor's lead
properly connected to CN17 on the
main PCB?
N
Y
Change main PCB.
Does the machine function normally when the main
shaft sensor PCB is replaced with a reliable one?
N
Y
Is the main shaft encoder deformed,
bent, or damaged due to contact?
Change main shaft sensor PCB.

Brother PR600 Specifications

General

Type	Embroidery machine
LCD Screen	Yes
USB Port	Yes
Built-in Memory	Yes
Connectivity	USB
Maximum Embroidery Area	200mm
Embroidery Area	200mm
Needle Count	6 needles
