Brother PR600 Service Manual

3 - 28
Main unit
Power unit
2
Power PCB assembly

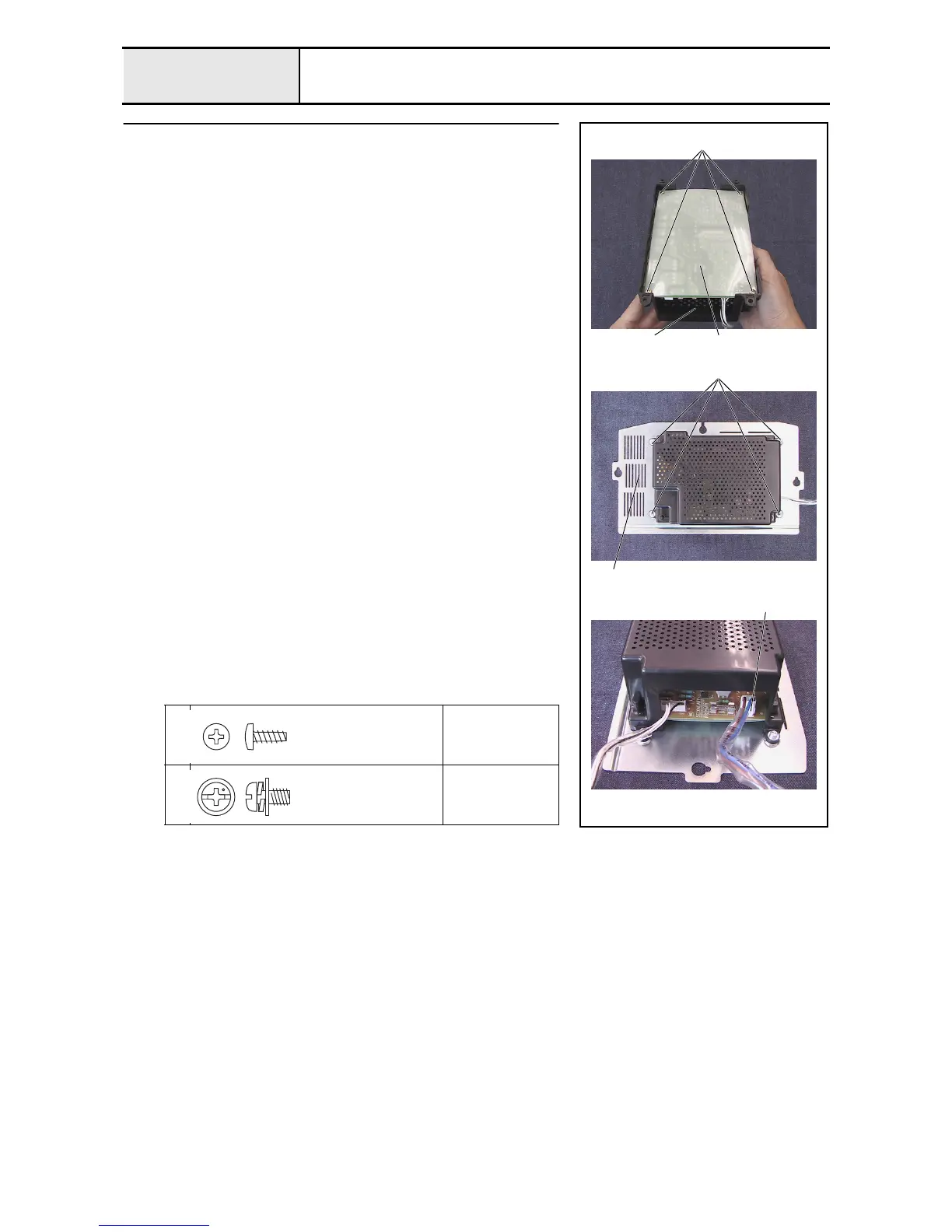

1. Attach the power PCB assembly and the insulation sheet 2 to the power
unit cover 1 with the 4 screws 1.
2. Attach the power unit cover assembly to the power unit stay 3 with the 4
screws 2.
3. Connect the power lead wire assembly 4 to the power PCB assembly.
1
Torque
0.39 – 0.78 N-m
2
Torque
0.78 – 1.18 N-m
1
3
4
2
2
1
Taptite, Bind B
M3X8
Color; Gold
Screw, Pan (S/P washer)
M4X8
Color; Silver
