4 - 21
Inspection and
Adjustment

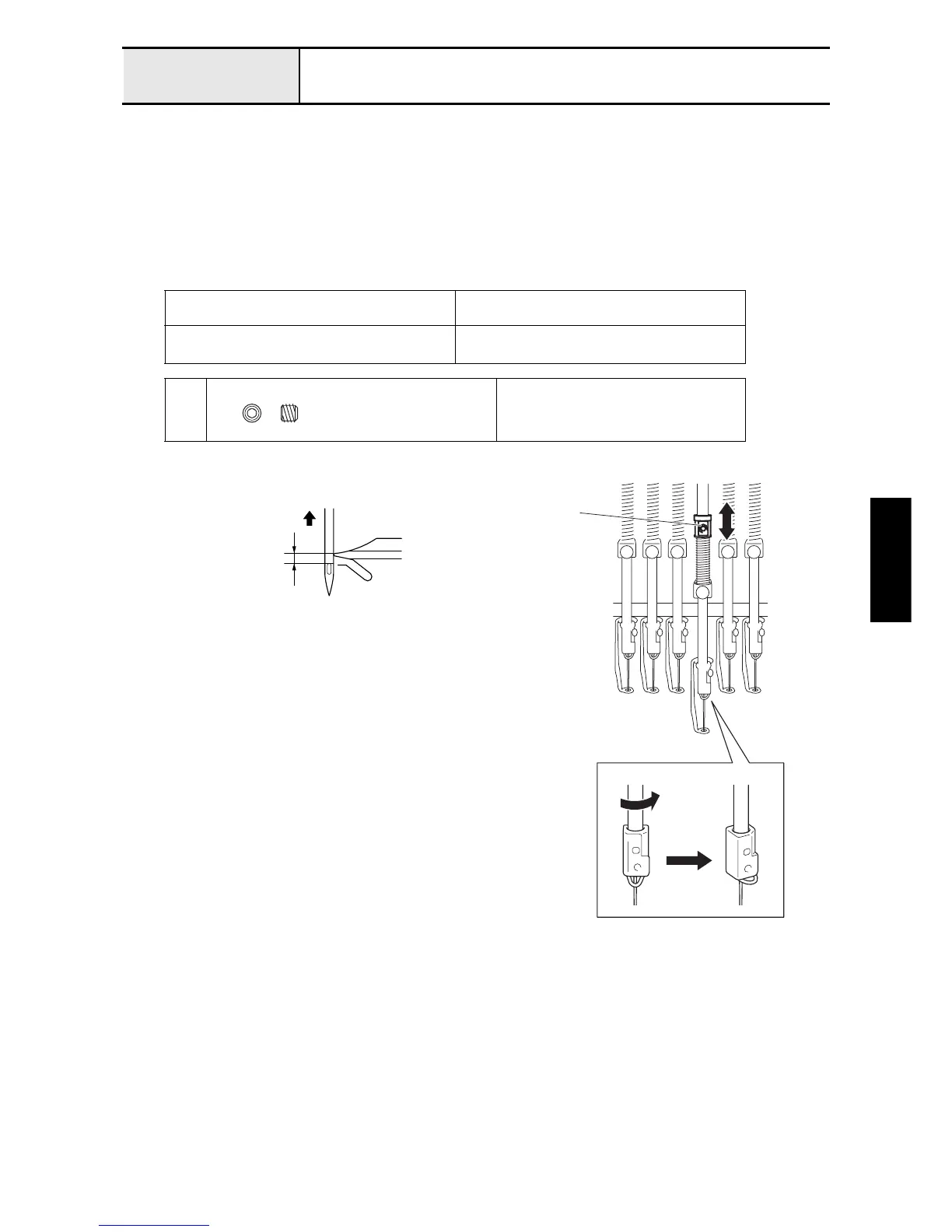

Adjustment Needle bar height adjustment
1. Rotate the pulley manually to move the needle bar until the needle's right edge matches the rotating hook's tip.
2. Loosen the screw
1
.
3. Adjust the needle bar height and alignment.
4. Tighten the screw
1
.
5. Repeat the same steps to adjust the needle bar height for the other 5 needle bars.
*Key point
• Pressing [←] and [→] selects the other needle bars.
Clearance between top edge of rotating hook's
tip and top edge of needle hole
1.8 - 2.2 mm
Alignment of needle bar and needle guard
relative to upper shaft
Tilt to the right (when viewed from the front)
0 to 2°.
1
Torque
0.78 - 1.18 N-m
Set Screw, Socket (CP)
SM4.37-40X4
Color; Black
The clearance between the top edge of rotating hook's tip and
top edge of needle hole should be 1.8 - 2.2 mm.
Face the needle hole to the front.
1
1.8 - 2.2 mm
0 to 2°
To Next Page
