Brother PR600 Service Manual

3 - 79
Feed unit
Main unit
Assembly
5
T-belt (X-drive) attachment

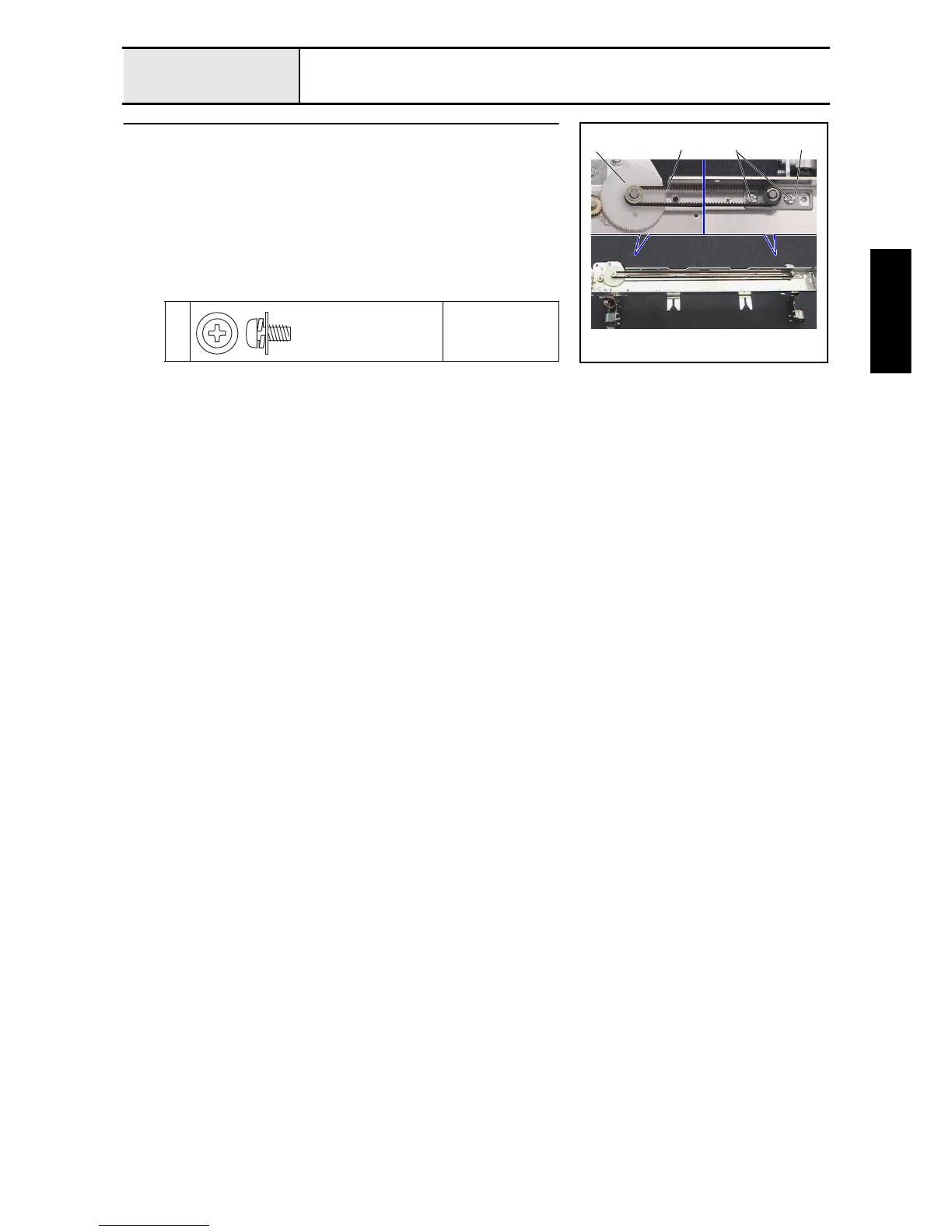

1. Hang the T-belt B60S796 3 over the Y driving gear pulley assembly 1
and the tension pulley plate final assembly 2, and then secure the tension
pulley plate final assembly to the feed frame assembly with the 2 screws
1.
*Key point
• Temporarily tighten the screws 1 first. Firmly tighten them
after completing 4 - 29 "X-belt tension adjustment."
1
Torque
Hand start
31 1 2
Screw, Pan (S/P washer)
M4X8DB
Color; Silver
