Brother PR600 - Cutter Unit Assembly (Step 1)

3 - 23
Thread cut unit
Main unit
Assembly
1

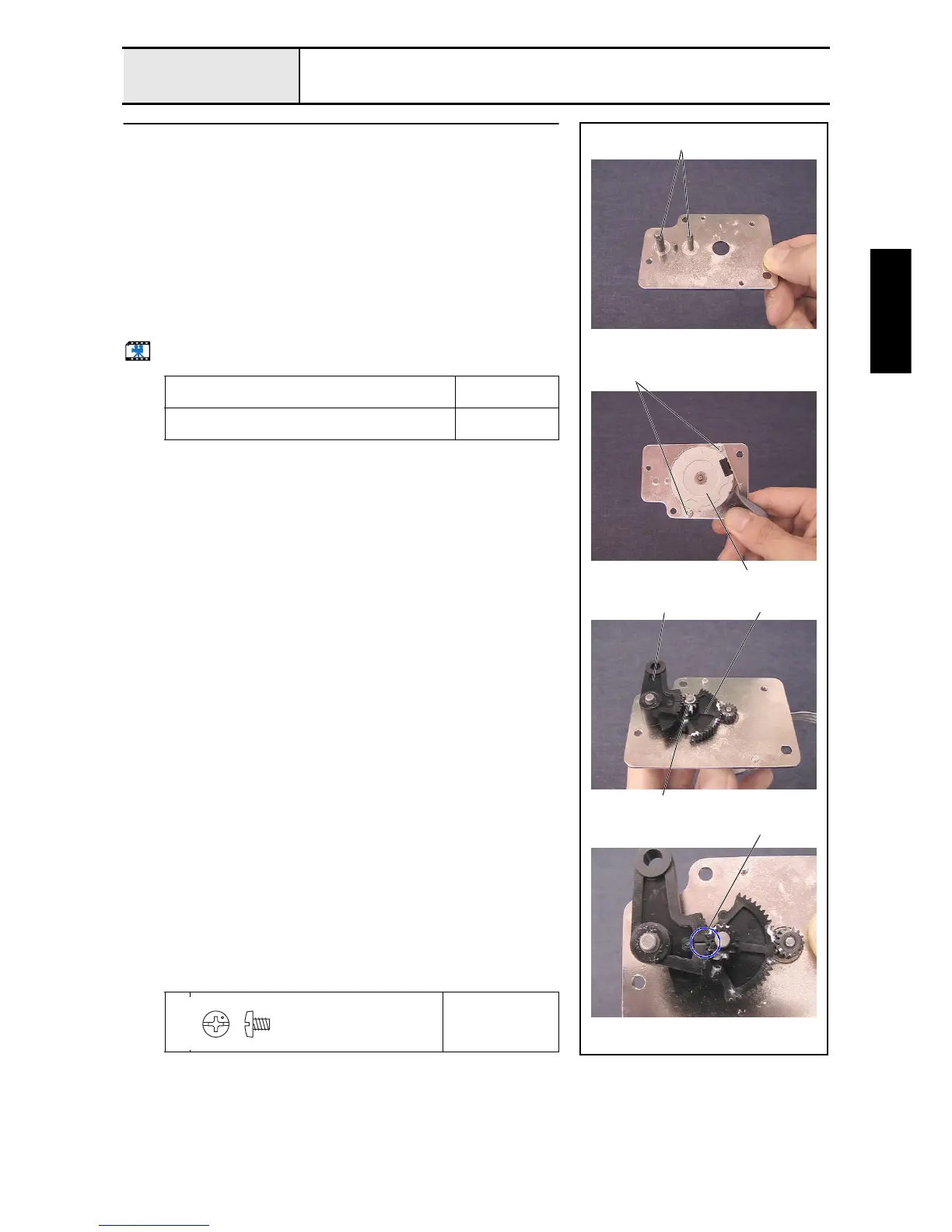

Cutter unit assembly (Step 1)
1. Apply MOLYKOTE EM-30L grease to the CT motor bracket assembly's
shaft 1.
2. Attach the thread cutter motor assembly 2 to the CT motor bracket
assembly with the 2 screws 1.
3. Attach the initial gear 3 to the motor bracket assembly's shaft, and then
attach the retaining ring E2.
4. Attach the lever gear 4 to the motor bracket assembly's shaft, and then
apply MOLYKOTE EM-30L grease to the gear.
*Key point
• Align the marking 5 on the lever gear with the marking on the
initial gear.
Start movie clip (CD-ROM version only)
Apply MOLYKOTE EM-30L grease to the CT motor
bracket assembly's shaft.
Size of a grain of
rice
Apply MOLYKOTE EM-30L grease to the lever gear.
Size of a grain of
rice
1
Torque
0.78 – 1.18 N-m
1
2
43
Retaining ring E2
1
5
Screw, Bind
M3X4
Color; Silver
