Brother PR600 Service Manual

3 - 98
Main unit
Main unit
8

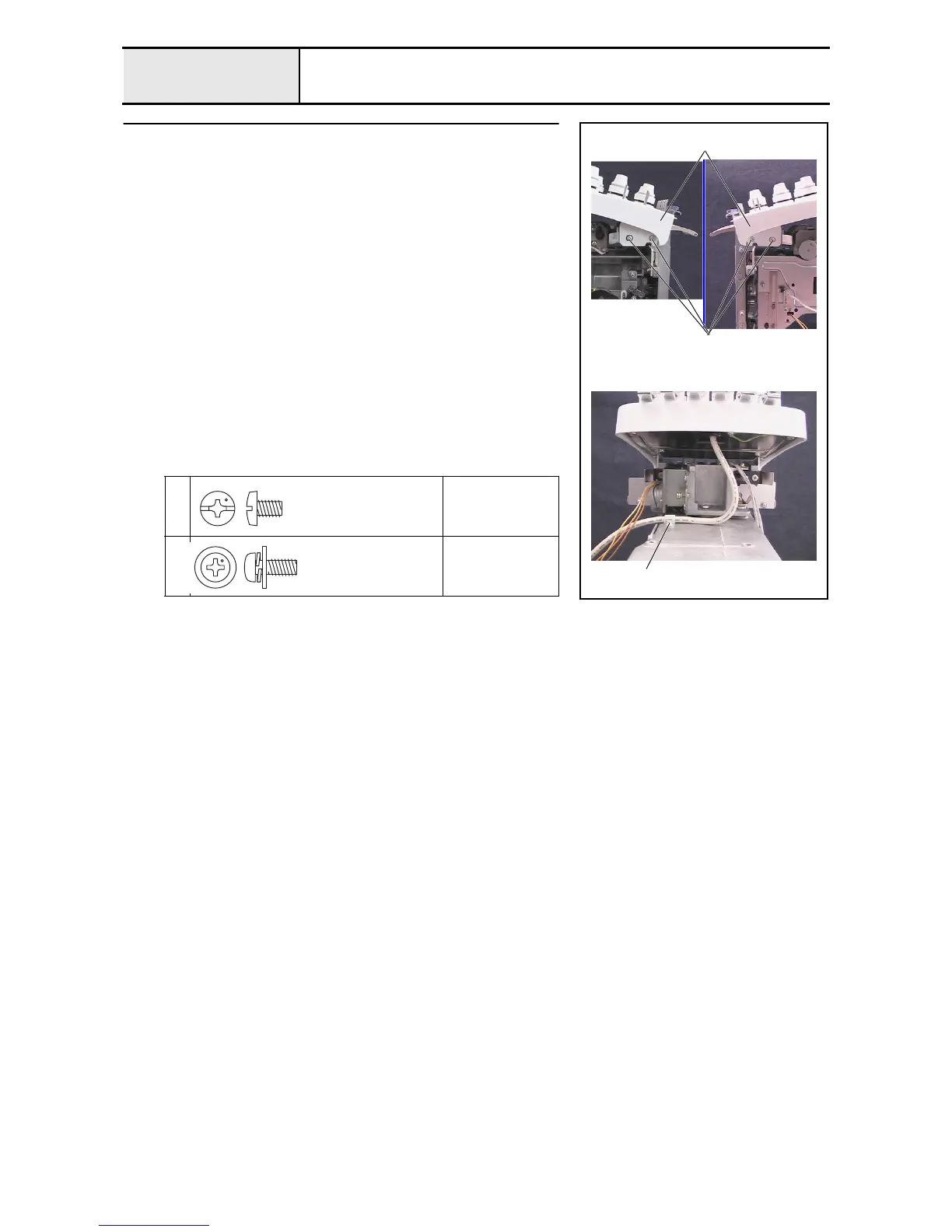

Tension base attachment
1. Attach the tension base assembly 1 to the needle bar case final assembly
with the 4 screws 1.
2. Attach the cord clamp (NK-4N) to the tension base cord at a point 125 mm
from the tension base, and secure it to the arm bed with the screw 2.
1
Torque
1.18 – 1.57 N-m
2
Torque
0.78 – 1.18 N-m
2
1
1
Screw, Bind
M4X6
Color; Silver
Screw, Pan (S/P washer)
M4X10DB
Color; Silver
