Brother PR600 Service Manual

2 - 61
Thread cut unit
Main unit
Disassembly
1

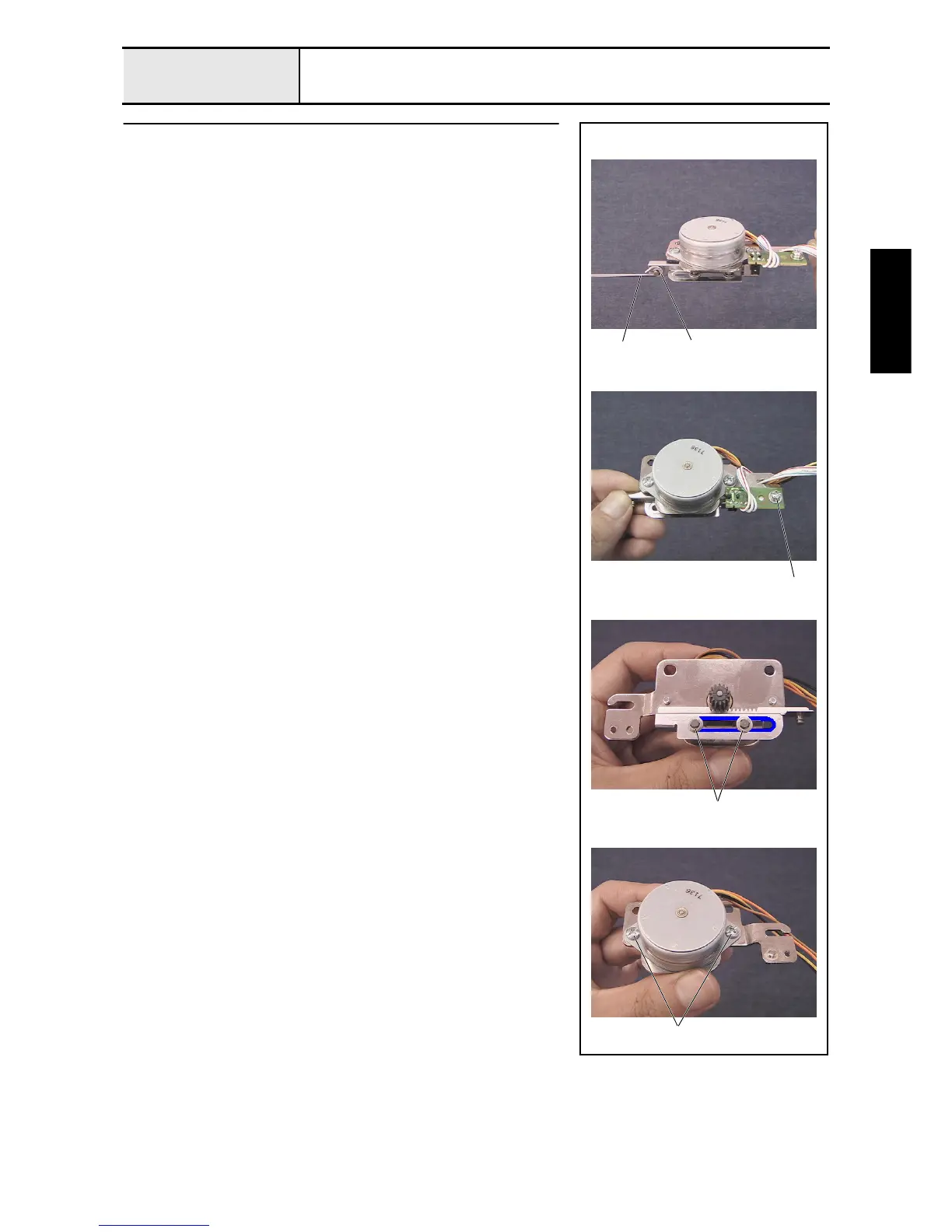

Picker disassembly
1. Remove the retaining ring E2, and then remove the washer and the picker
link 1.
2. Remove the screw 1, and then remove the picker sensor assembly.
3. Remove the 2 retaining rings E2, 2 plain washers S3, rack assembly, and 2
plain washers S3.
4. Remove the 2 retaining rings E2.
5. Remove the 2 screws 2, and then remove the picker motor assembly.
1
Retaining ring E2
Retaining ring E2
2
1
