Brother PR600 Service Manual

2 - 13
Main parts
Main unit
Disassembly
19
Cutter unit final assembly and picker final assembly removal

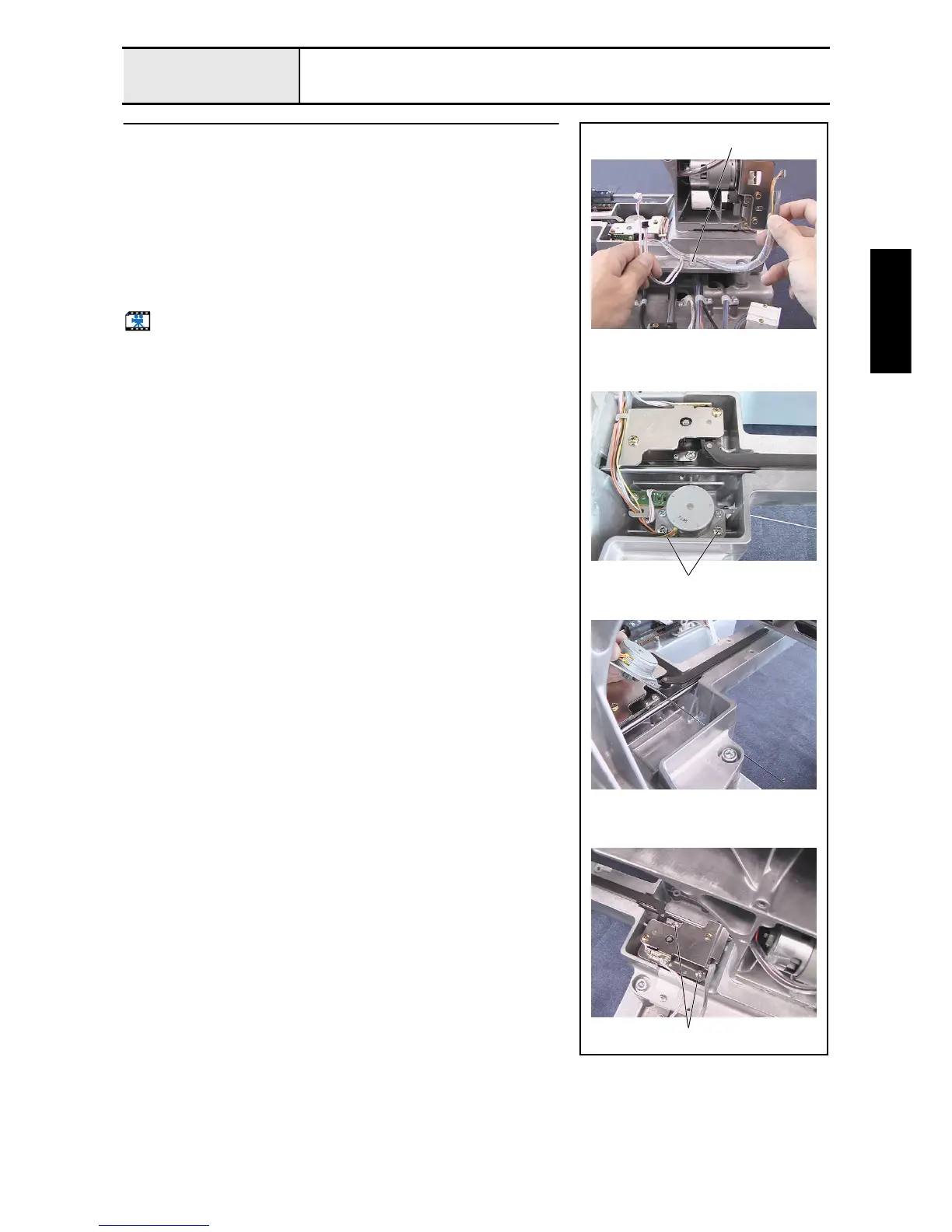

1. Remove the screw 1, and then remove the cord clamp NK-5N and the
lead wire from the arm bed.
2. Remove the 2 screws 2, and then remove the picker final assembly.
*Key point
• Fully draw the feed final assembly toward you before
removing the cutter unit final assembly and the picker final
assembly.
• Be careful not to bend the picker link.
3. Remove the 2 screws 3, and then remove the cutter unit assembly.
Start movie clip (CD-ROM version only)
1
2
3
