Brother PR600 Service Manual

3 - 90
Feed unit
Main unit
16

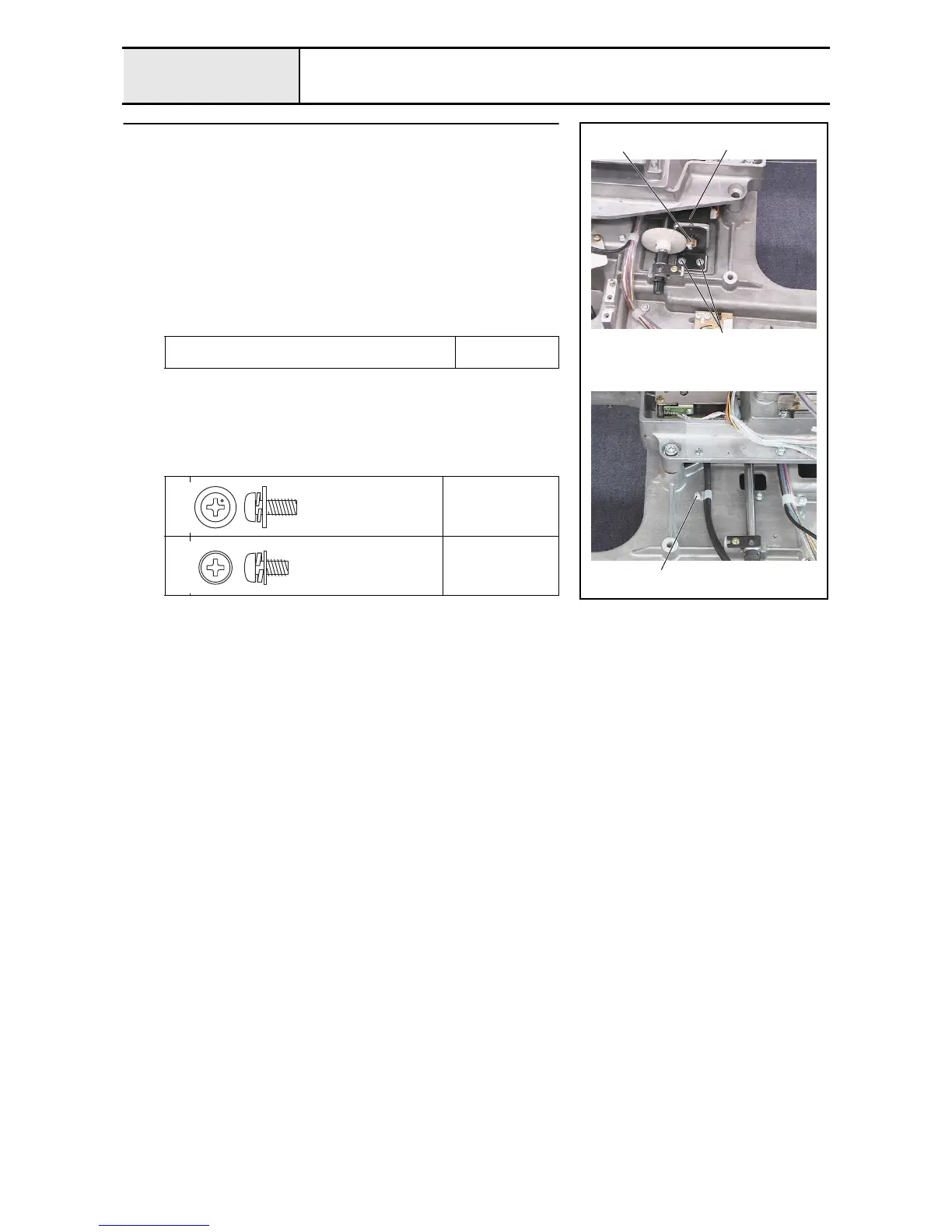

Y motor final assembly attachment
1. Attach the Y motor final assembly 1 to the base frame with the 2 screws
1.
*Key point
• Adjust the backlash of the Y motor gear and the Y-guide shaft
gear to zero.
• Make sure the Y motor gear and the Y-guide shaft gear are
parallel.
2. Apply MOLYKOTE EM-30L grease to the Y motor gear 2.
3. Secure the Y motor final assembly's lead wire and the cord clamp NK-4N
to the base frame with the screw 2.
0
Apply MOLYKOTE EM-30L grease to the Y motor
gear.
Size of a grain of
rice
1
Torque
1.18 – 1.67 N-m
2
Torque
1.18 – 1.57 N-m
1
2
1
2
Screw, Pan (S/P washer)
M4X10DB
Color; Silver
Screw, Pan (S/P washer)
M4X8DA
Color; Silver
