Brother PR600 Service Manual

3 - 106
Main unit
Main unit
18

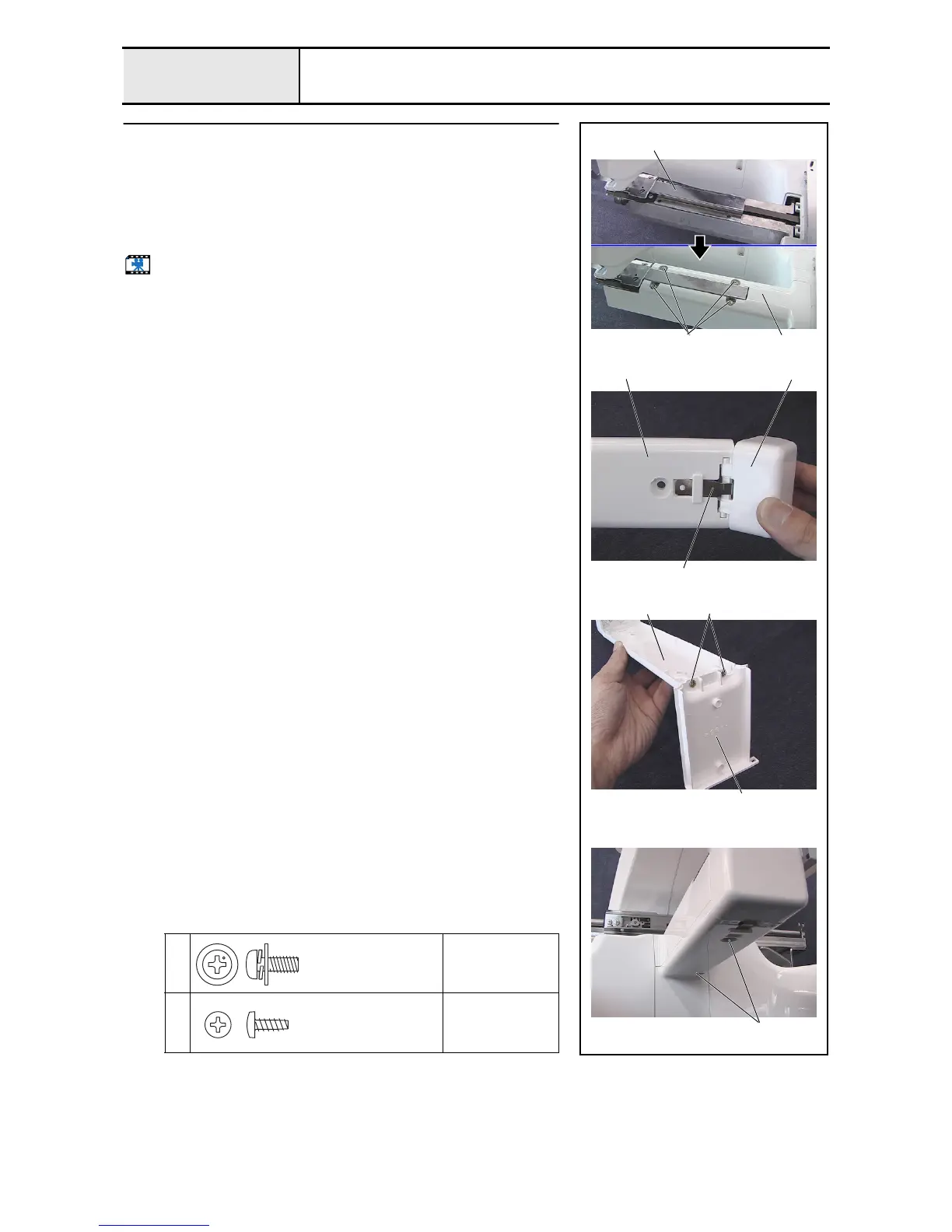

Bed cover attachment
1. Attach the bed cover 1 and the bed cover top 2 to the arm bed with the 4
screws 1.
2. Attach the spring 4 and the hinged door 5 to the bed cover bottom 3.
3. Attach the bed cover lid 7 to the bed cover bottom assembly 6 with the 2
screws 2.
4. Attach the bed cover bottom assembly to the arm bed with the 2 screws 3.
Start movie clip (CD-ROM version only)
1
3
Torque
0.78 – 1.18 N-m
2
Torque
0.39 – 0.78 N-m
2
4
1
1
35
7
3
2
6
Screw, Pan (S/P washer)
M4X10DB
Color; Silver
Taptite, Bind B
M3X8
Color; Gold
