Brother PR600 Service Manual

3 - 42
Main unit
Upper shaft unit
6

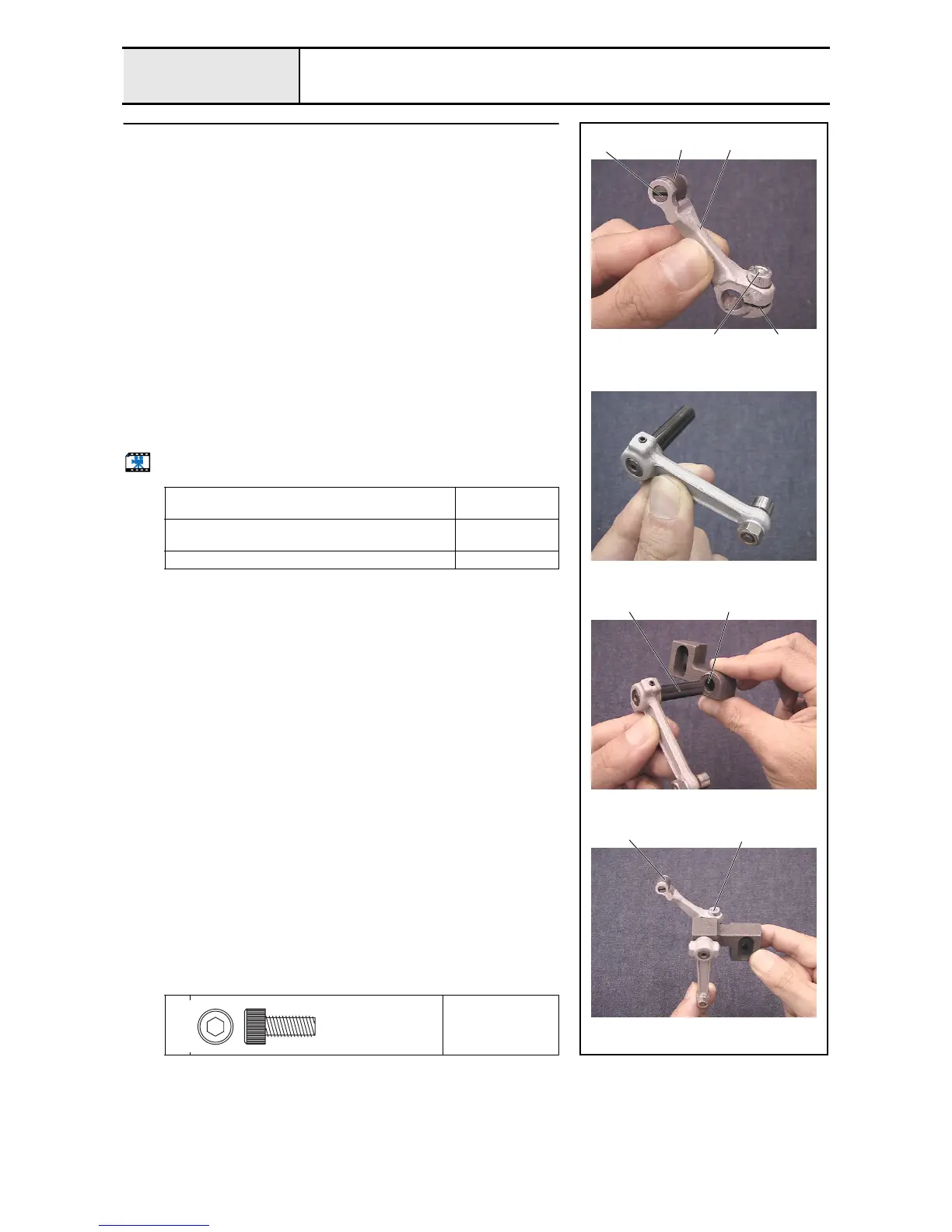

Thread take-up driving lever final assembly
1. Attach the roller 2 to the thread take-up differential lever 1, and tighten
the thread take-up roller pin 3.
2. Attach the spacer 4 to the thread take-up differential lever, and
temporarily tighten the screw 1.
3. Attach the roller shaft assembly to the thread take-up driving lever with the
nut (1, M5) and the spring washer (2-5).
4. Apply MOLYKOTE EM-30L grease to the shaft hole 5 on the thread
take-up bearing.
5. Thread the thread take-up lever assembly's shaft 6 through the hole on the
thread take-up bearing, attach the thread take-up differential lever
assembly to the tip of the thread take-up driving lever assembly's shaft, and
temporarily tighten the screw 1.
*Key point
• Temporarily tighten the screw 1 first. Firmly tighten it after
completing thread take-up differential lever height adjustment
in 3 - 60 "Needle bar case final assembly attachment."
6. Apply MOLYKOTE EM-30L grease to the thread take-up differential
lever's roller 7.
Start movie clip (CD-ROM version only)
Apply MOLYKOTE EM-30L grease to the shaft hole on
the thread take-up bearing.
Size of a grain of
rice
Apply MOLYKOTE EM-30L grease to the thread take-
up differential lever's roller.
Size of a grain of
rice
Tightening torque of thread take-up roller pin: 0.78 - 1.18
1
Torque
Hand start
2
6 5
3 1
1 4
7 1
Bolt, Socket
M5X12
Color; Black
