Brother PR600 Service Manual

3 - 72
Needle thread unit
Main unit
2

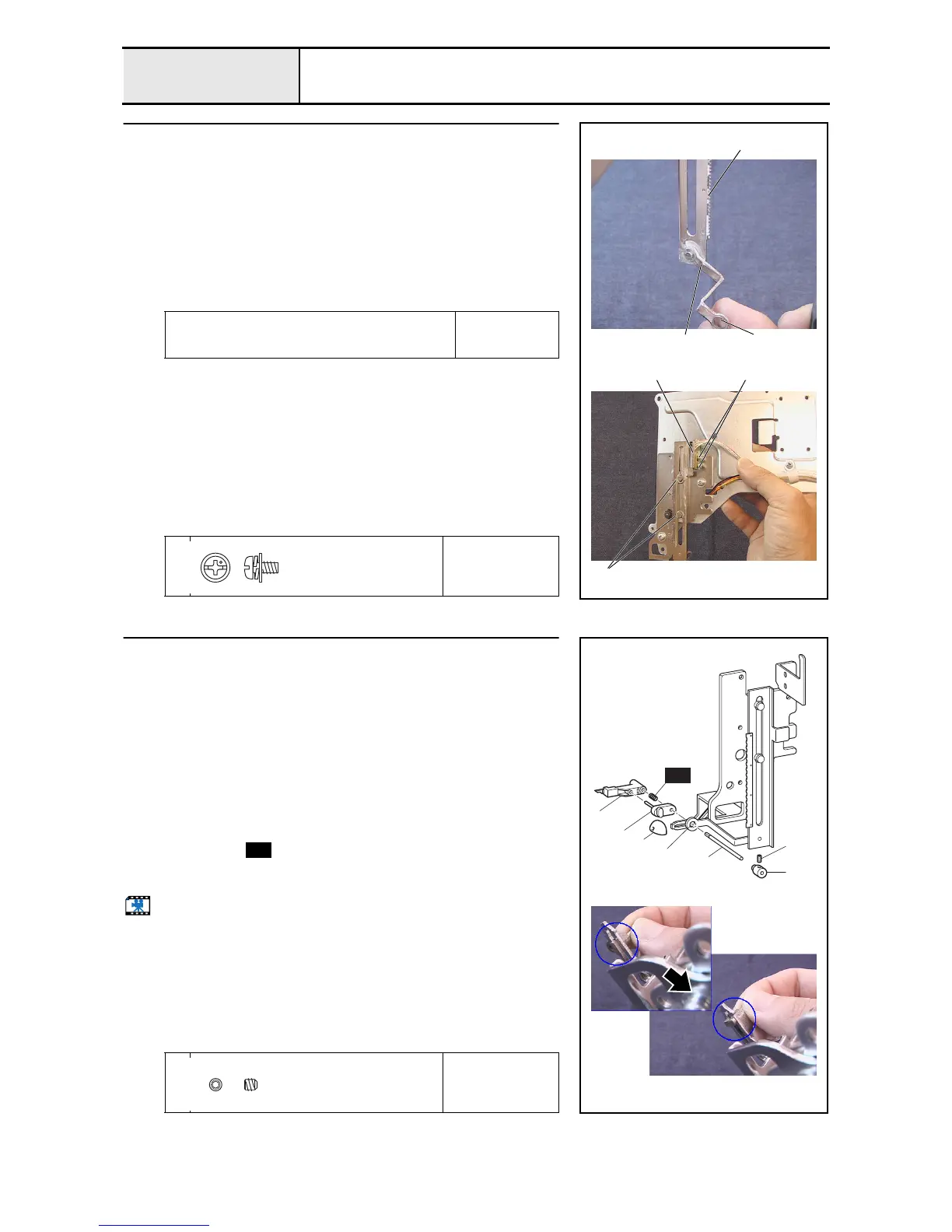

Rack assembly and hook holder link attachment
1. Attach the hook holder link 1 to the rack assembly's shaft, and then attach
the retaining ring E3.
2. Apply MOLYKOTE EM-30L grease to the gear face 2 and the
connecting face on the rack assembly, and the hook holder shaft
attachment hole 3 on the hook holder link.
3. Attach the rack assembly to the base plate assembly's 2 shafts, and then
attach the 2 retaining rings E4.
4. Attach the needle thread sensor assembly 4 to the base plate assembly
with the 2 screws 1.
Apply MOLYKOTE EM-30L grease to the gear face and
the connecting face on the rack assembly, and the hook
holder shaft attachment hole on the hook holder link.
Size of a grain of
rice
1
Torque
0.59 – 0.78 N-m
2
1
Retaining rings E4
1 3
4
Screw, Pan (S/P washer)
M3X6
Color; Silver
3
Hook assembly
1. Attach the bush 2 to the hook holder axis B 1 with the screw 1.
*Key point
• Temporarily tighten the screw 1 first. Firmly tighten it after
completing 4 - 26 "Needle threader adjustment (right/left)."
2. Attach the set collar assembly 3 to the base plate assembly.
*Key point
• Thread the set collar assembly through the slot on the base
plate, and turn it 90 degrees.
3. Thread the hook holder axis B assembly through the hole 4 on the hook
holder link, the groove on the base plate assembly, the set collar assembly,
and the spring , and then attach the hook holder assembly 5 to the
hook holder axis B assembly and the set collar assembly's axis.
4. Attach the cap 6 to the tip of the slot on the base plate assembly.
Start movie clip (CD-ROM version only)
1
Torque
0.59 – 0.78 N-m
1
2
1
4
6
3
5
S56
S56
Set Screw, Socket (CP)
M3X3
Color; Black

Brother PR600 Specifications

General

Type	Embroidery machine
LCD Screen	Yes
USB Port	Yes
Built-in Memory	Yes
Connectivity	USB
Maximum Embroidery Area	200mm
Embroidery Area	200mm
Needle Count	6 needles
