Brother PR600 Service Manual

2 - 8
Main parts
Main unit
6

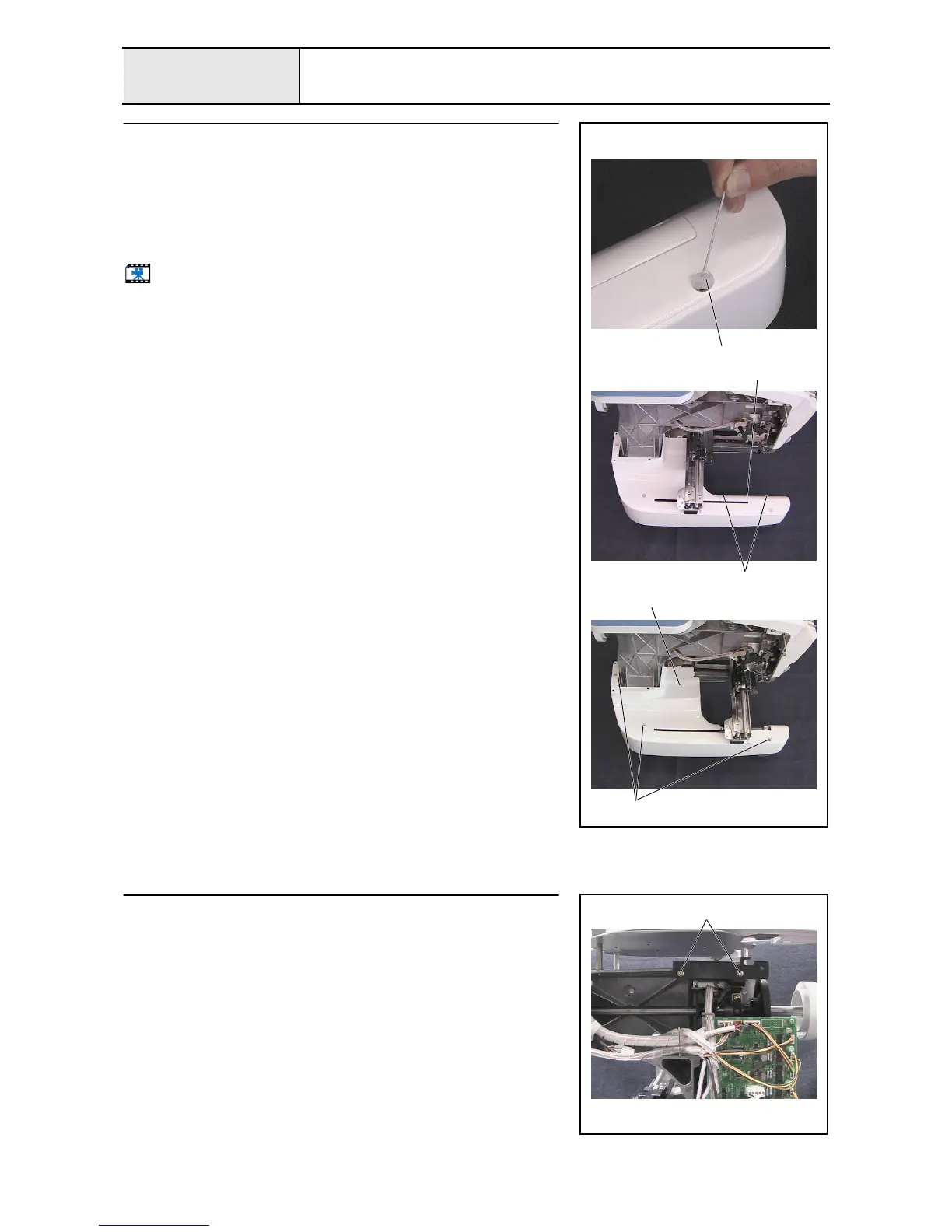

Base cover L removal
1. Remove the 2 screw covers 1.
2. Remove the 2 screws 1, and then remove the base cover L lid 2.
3. Remove the 3 screws 2, and then remove the base cover L 3.
*Key point
• Fully draw the feed final assembly toward you before
removing the base cover L.
Start movie clip (CD-ROM version only)
1
1
2
3
2
7
Oil box holder removal
1. Remove the 2 screws 1, and then remove the oil box holder.
1
