Brother PR600 Service Manual

2 - 15
Feed unit
Main unit
Disassembly
1

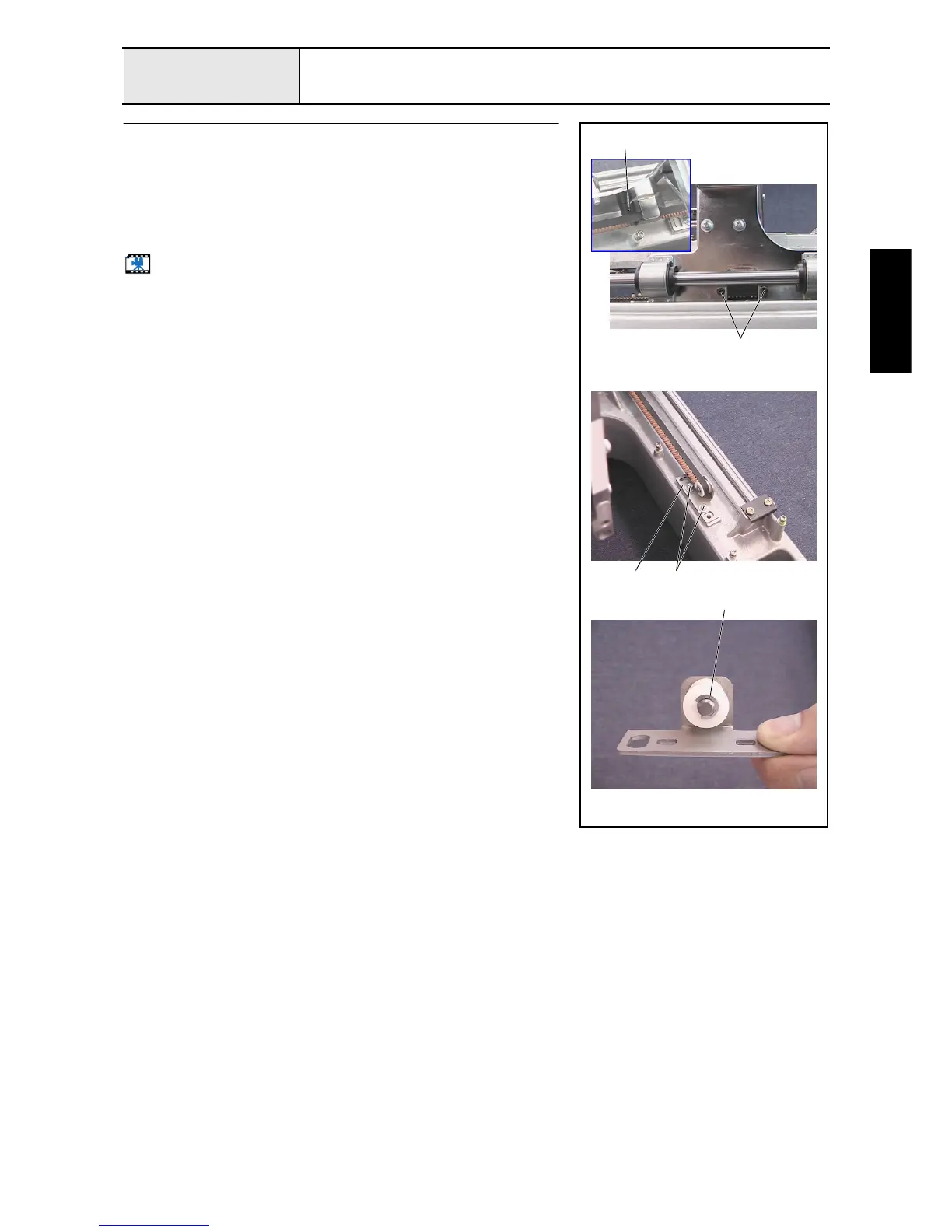

T-belt (Y-guide) removal
1. Remove the 2 screws 1, and then remove the Y-belt presser 1 (one each
on left and right).
2. Remove the 2 screws 2, and then remove the Y-tension plate assembly 2
and T-belt (one each on left and right)
3. Remove the retaining ring E4, and then remove the Y-tension pulley and
the washer 7 X 2 from the Y-tension plate assembly.
Start movie clip (CD-ROM version only)
1
1
2 2
Retaining ring E4
