Brother PR600 - Cutter Unit Disassembly (Step 2)

2 - 63
Thread cut unit
Main unit
Disassembly
3

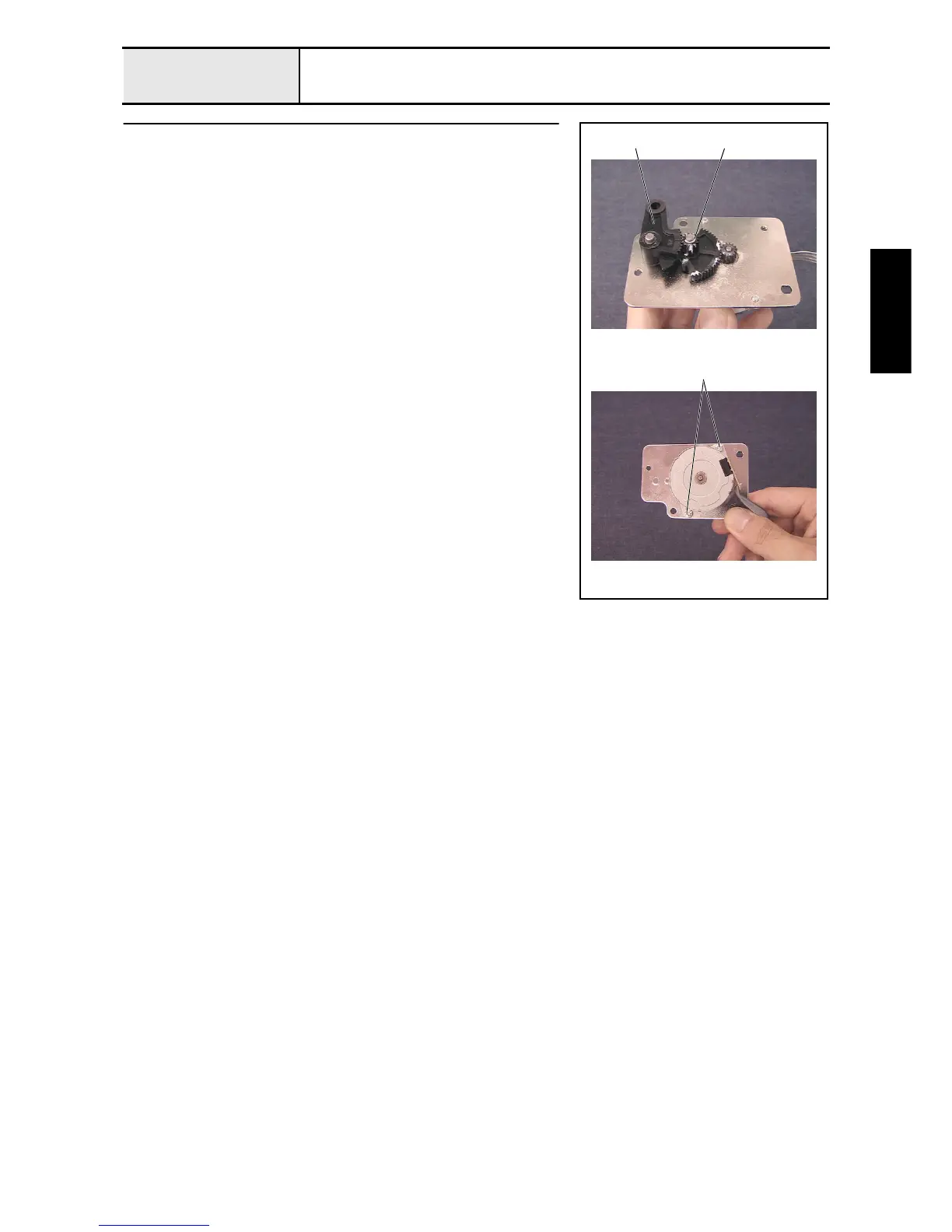

Cutter unit disassembly (Step 2)
1. Remove the lever gear 1.
2. Remove the retaining ring E2, and then remove the initial gear.
3. Remove the 2 screws 1, and then remove the thread cutter motor
assembly.
1
1
Retaining ring E2
