Brother PR600 - Thread Take-Up Bracket Disassembly

2 - 72
Main unit
Thread tension unit
12
Thread take-up bracket disassembly
*Key point
• Disassemble the six thread take-up bracket assemblies.

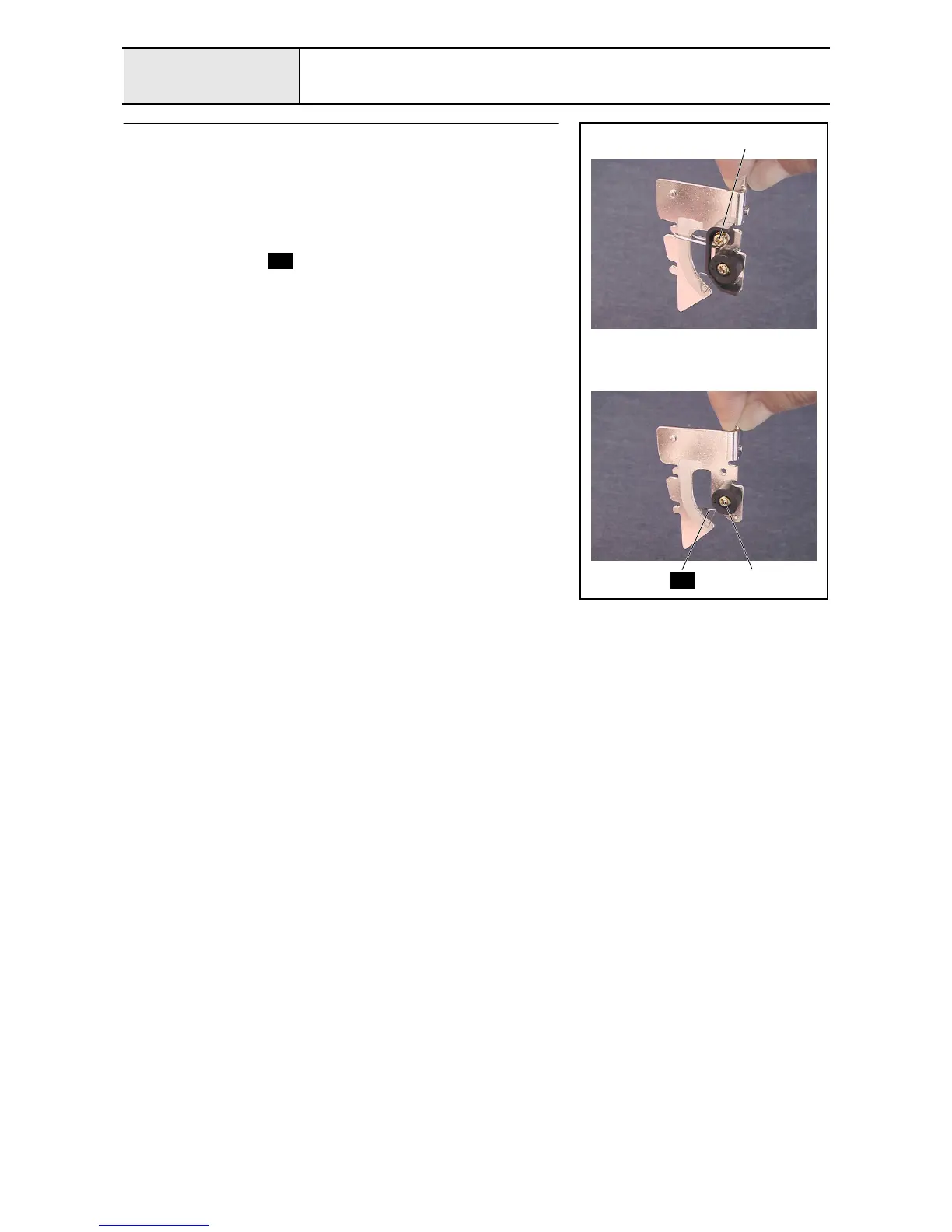

1. Remove the screw 1, and then remove the thread guide wire and the
thread guard.
2. Remove the screw 2, and then remove the thread catching spring case
assembly.
3. Remove the spring from the thread catching spring case.
1
2
S49
S49
