4 - 23
Inspection and
Adjustment

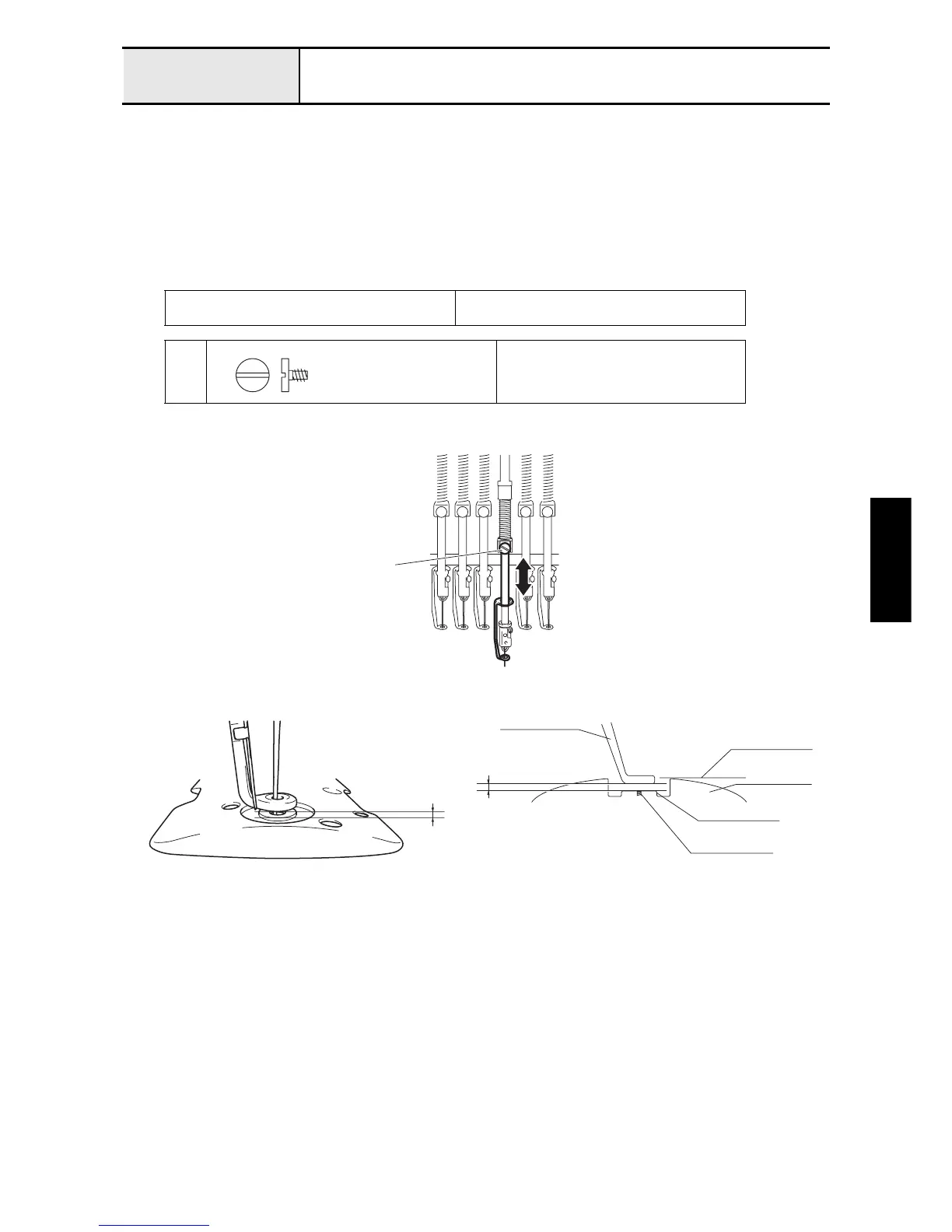

Adjustment Presser foot height adjustment
1. Rotate the pulley manually to move the needle bar to the bottom point.
2. Loosen the screw
1
.
3. Adjust the presser hoot height.
4. Tighten the screw
1
.
5. Repeat the same steps to adjust the presser hoot height for the other 5 needle bars.
*Key point
• Pressing [←] and [→] selects the other needle bars.
Clearance between section surrounding eye of
needle and bottom face of presser foot
0.5 - 1.1 mm
1
Torque
0.78 - 1.18 N-m
Screw
Color;
The clearance between the section surrounding
the eye of the needle and the bottom face of the
presser foot should be 0.5 - 1.1 mm.
(The bottom face of presser foot is slightly lower
than the top face of the needle plate.)
Needle plate
Top face of needle plate
Presser foot
Section surrounding eye of needle
Eye of needle
0.5 - 1.17 mm
1
0.5 - 1.1 mm
To Next Page
