4-2 Section 4-3 - General Procedure
Section 4-3
General Procedure
4-3-1 Power On / Boot Up
NOTE: After turning off a system, wait at least ten seconds before turning it on again. The system may not be
able to boot if power is recycled too quickly.
4-3-1-1 Scanner Power On
1.) Connect the Power Cable to the back of the system.
2.) Ensure the Cable Clip slips securely over the shoulders on the molded plug.
3.) Connect the Power Cable to an appropriate mains power outlet.
4.) Switch ON the Circuit Breaker at the rear of the system.
When power is applied to the scanner and the rear Circuit Breaker is turned ON, power is distributed to
the Cooling Unit, Control Panel, Monitor, Internal and External I/O Boards, Peripherals and the Back-
end Processor.
CAUTION
SYSTEM REQUIRES ALL COVERS
Operate this unit only when all board covers and frame panels are securely in place. The
covers are required for safe operation, good system performance and cooling purposes.
NOTICE
Energy Control and Power Lockout
When servicing parts of the system where there is exposure to voltage greater than 30 Volts:
Unplug the system
Maintain control of the system power plug
Wait for at least 20 seconds for capacitors to discharge
Beware that some parts of the system may be energized even if the power is turned off but the cord
is still plugged into the AC Outlet.

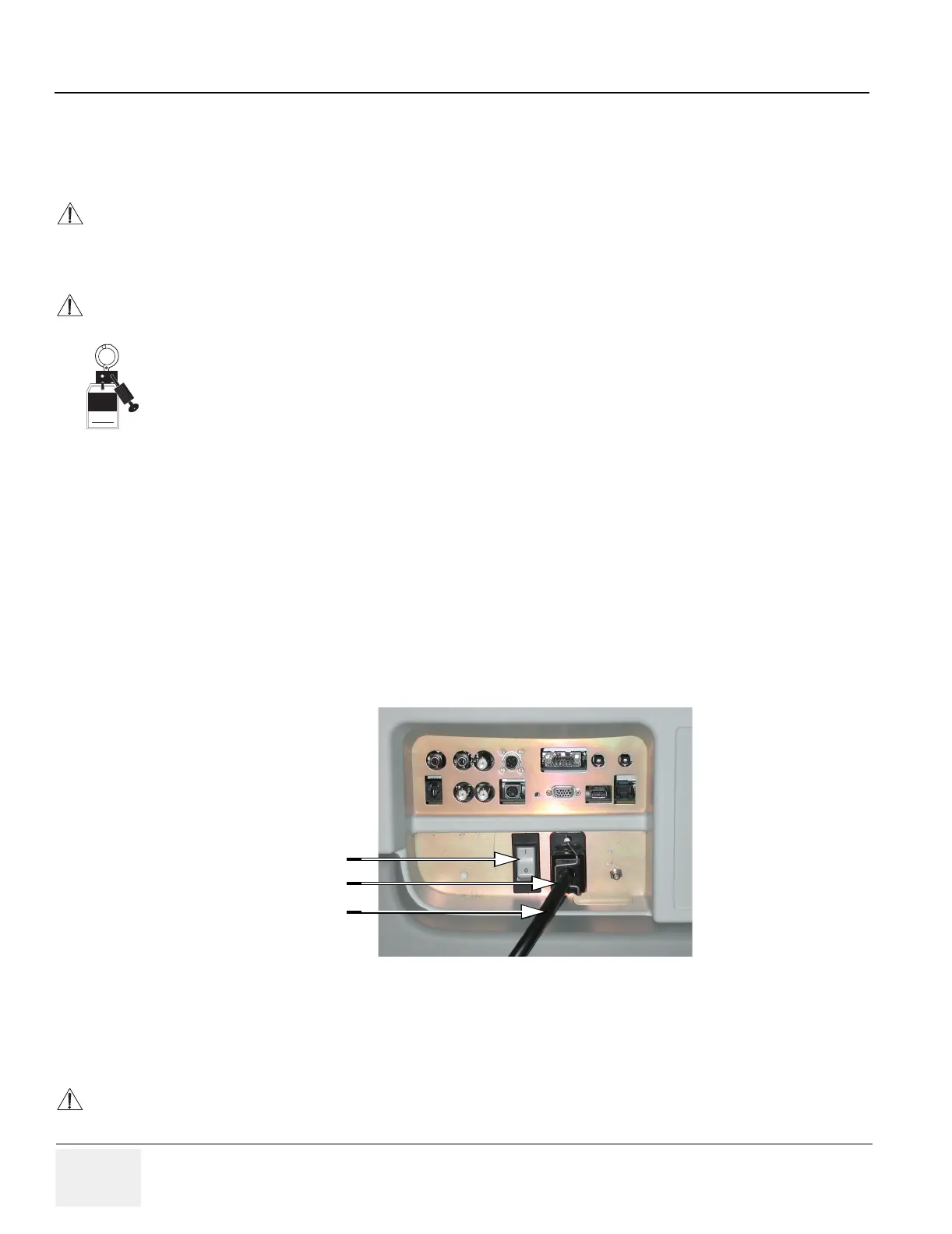

Figure 4-1 Circuit Breaker and Power Cable on Back of Scanner
NOTICE
When AC power is applied to the scanner, the Standby switch on the Control panel illuminates amber,
indicating the Backend Processor is in standby mode.
6LJQHG
'DWH
7$*
/2&.287
Circuit Breaker
Mains Power Cable
Cable Clip
