5-46 Section 5-9 - Monitor
Section 5-9
Monitor
17-inch High Resolution Monitor with no interlace scan includes loudspeakers for stereo sound output
(used during Doppler scanning).
Section 5-10
External I/O
The External I/O is the interface between the scanner and all external items.
5-10-1 Location in the Unit
On the rear of the scanner, above the power inlet and power breaker.

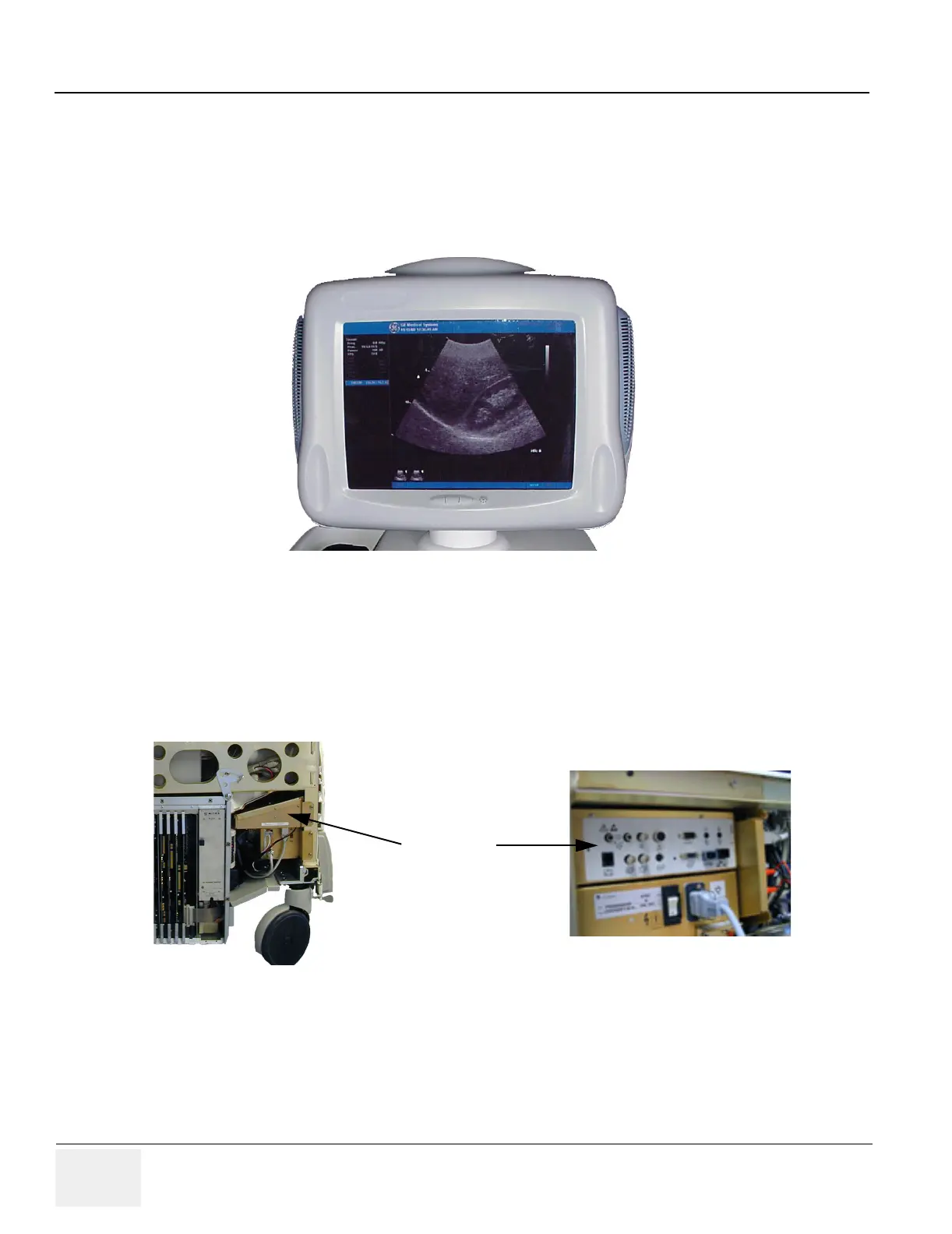

Figure 5-33 Monitor
Figure 5-34
External I/O
