Chapter 9 Renewal Parts 9-11
Section 9-8
Operator Control Panel Brackets

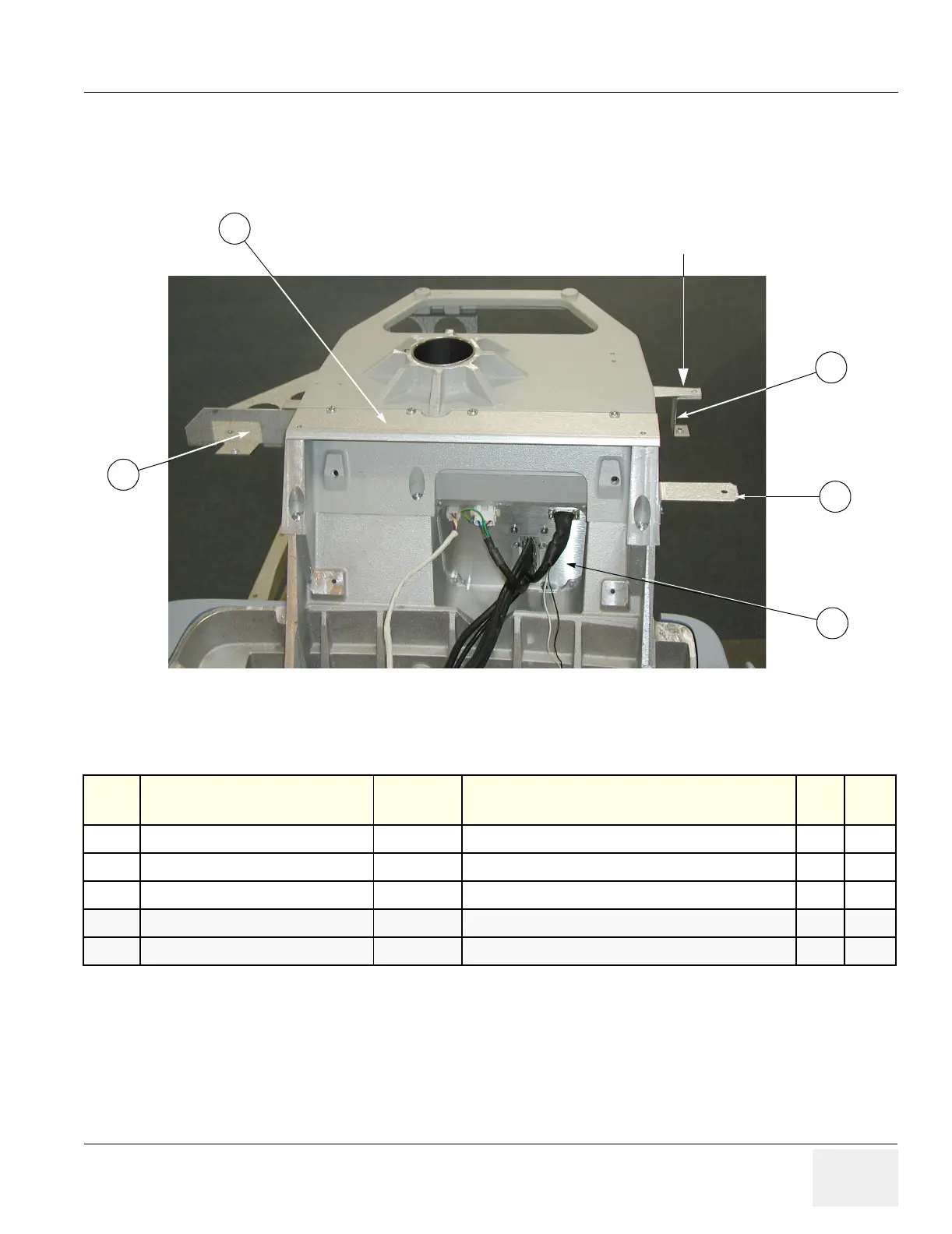

Figure 9-6 Operator Panel Brackets
Table 9-9 Operator Panel Brackets
ITEM PART NAME
PART
NUMBER
DESCRIPTION QTY FRU
190 Storage Tray Bracket 2306018 1 2
191 Upper Casting Bracket 2291449 1 2
192 “U” Bracket 2330476 ‘U’ Shaped Bracket, Nut is Attached to Casting 1 2
193 TV/TR Front Bracket 2306021 1 2
194 Bulkhead Bracket 2305886 Does Not Include Cables 1 2
190
191
192
193
194
Bracket on units built before Mid-2002.
Replaced by Item # 192.
To Next Page
