IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-162 Section 8-42 - Left and Right Frogleg Bumper Replacement Procedure
Section 8-42
Left and Right Frogleg Bumper Replacement Procedure
8-42-1 Manpower
One person 30 minutes
8-42-2 Tools
No special tool are needed
8-42-3 Left and Right Frogleg Bumper Replacement Procedure
1.) Move Top Console to front position.
2.) Tear off bumpers.
3.) Remove old glue from the Frogleg.
4.) Install new bumpers. Use glue adhesive to paint and rubber (Araldite 2026).

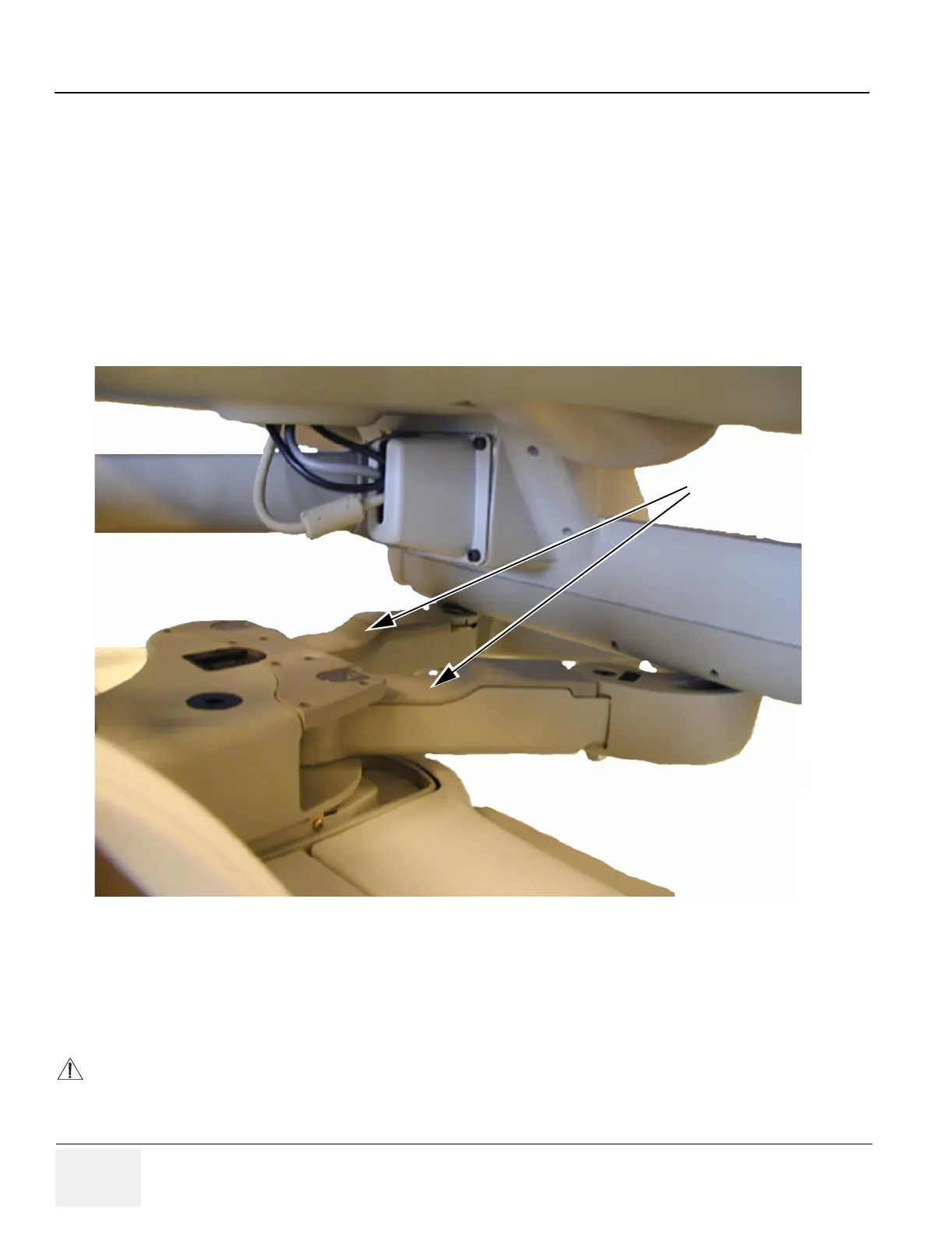

Figure 8-168 Left and Right Frogleg Bumpers
CAUTION
Be aware of the risk of squeezing fingers in Frogleg Assembly
Left and right Frogleg
bumpers
