Chapter 8 Replacement Procedures 8-165
Section 8-45
Inner Boss Crash Bumper Replacement Procedure
8-45-1 Manpower
8-45-2 Tools
Hexagon key 2,5 mm
8-45-3 Inner Boss Crash Bumper Replacement Procedure
1.) Move Top Console in front.
2.) Unscrew 4 hexagon screws.
3.) Remove Bumper brackets.
4.) Replace the bumpers.
CAUTION
Be aware of the risk of squeezing fingers in Frogleg Assembly.

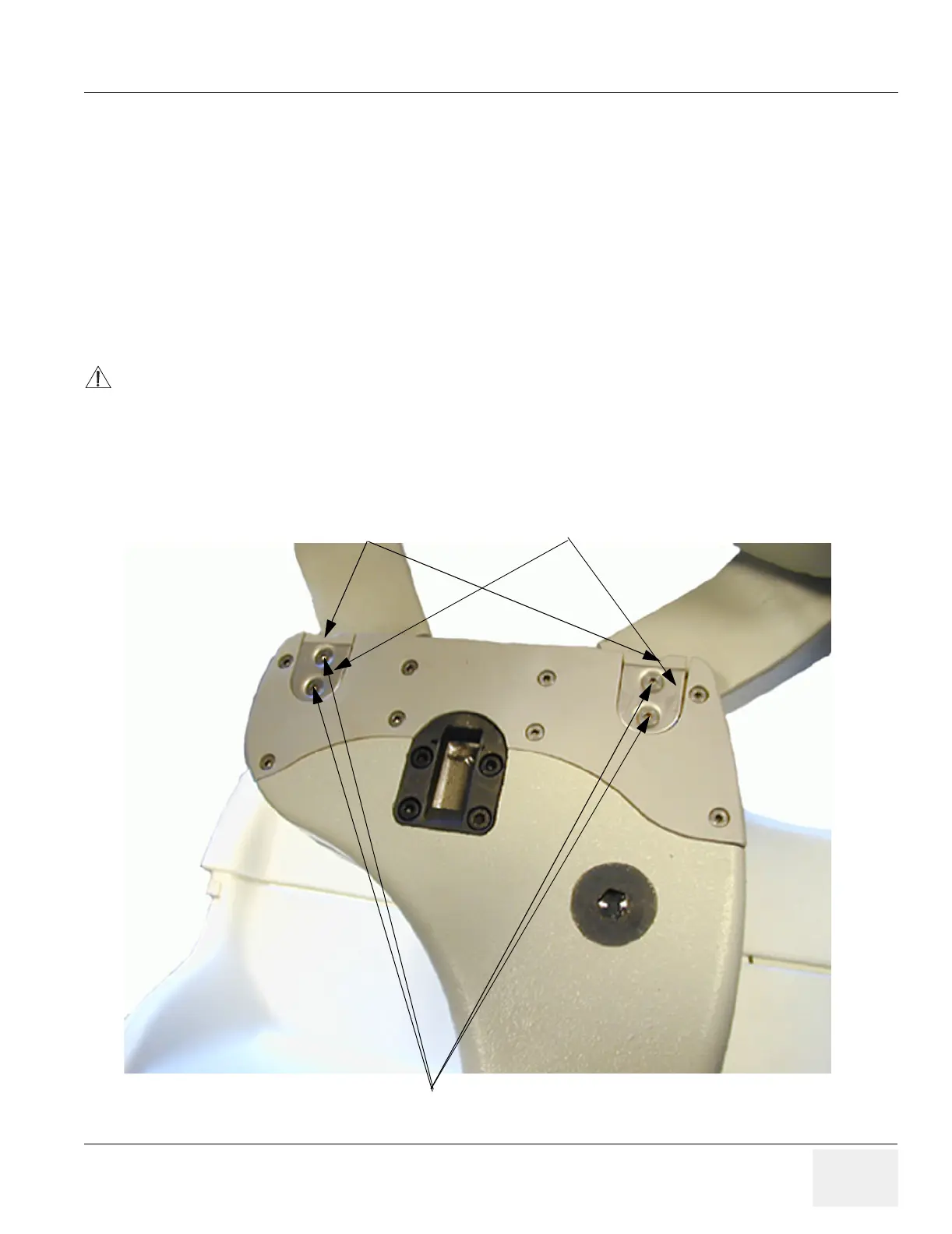

Figure 8-171 Frogleg base
Hexagon screws
Bumper brackets
Bumpers
