Chapter 4 Functional Checks 4-23
4-6-2 Brakes and Direction Locks Checks
Check that the brakes and direction locks function as described below.
NOTE: The swivel lock and brake cannot be engaged (pressed down) at the same time since pressing the main
brake releases the swivel lock and pressing the swivel lock releases the main brake. Therefore, if the
swivel lock is engaged you need to press the main brake pedal (#2) twice to lock the scanner from
rolling. Once will release the swivel lock and once again will engage the main brake in full lock as stated
in step 1.

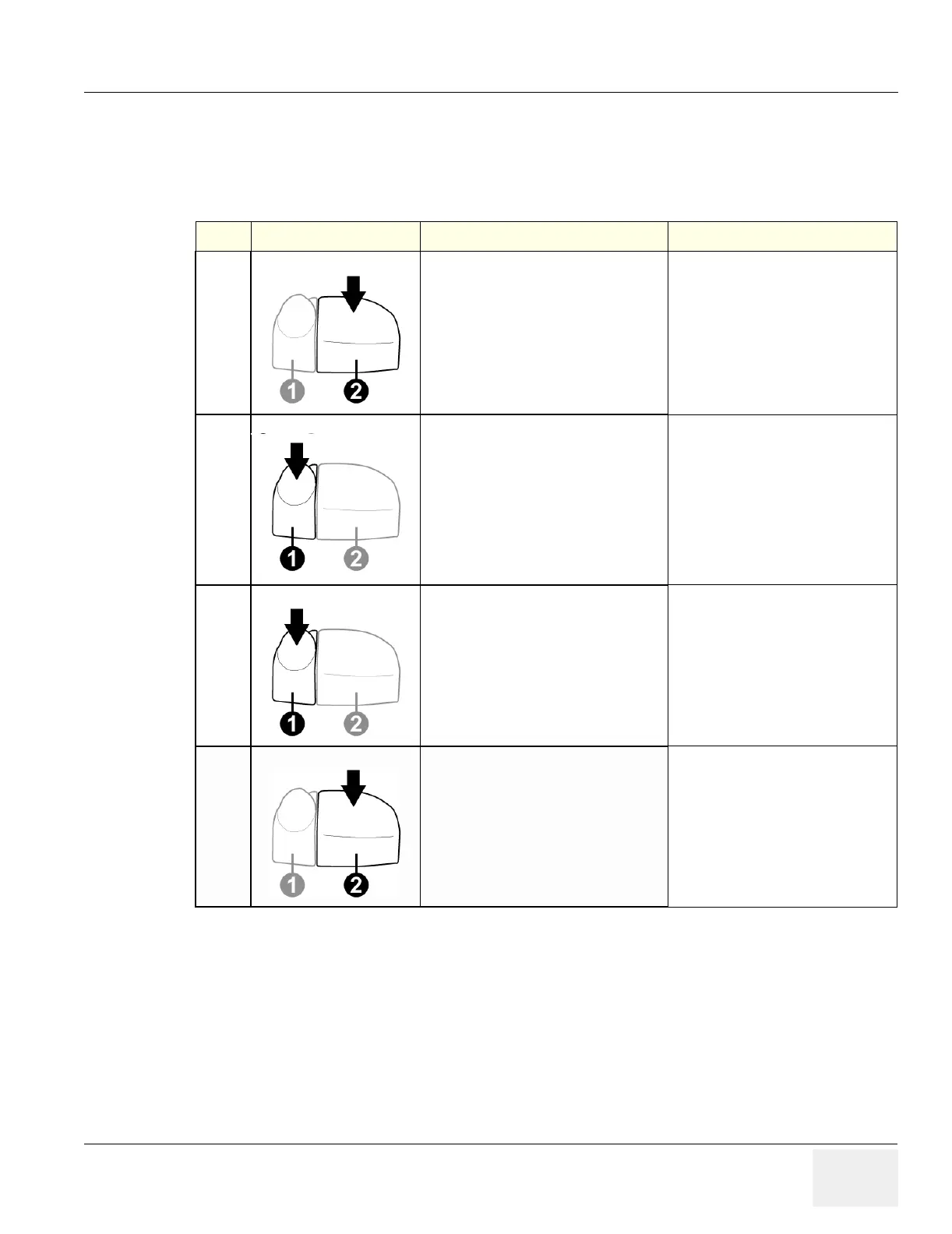

Table 4-9 Brakes and Direction Lock Instructions
Step Task Expected Result(s) If Not, Remedy
1. Press on pedal no. 2
To engage the brakes in full lock
Test Rods Bolts and nuts and wheel
rubber as described in Brake Adjustment
on page 6-14.
2. Press on pedal no.1
To release the brake
3. Press on pedal no.1
To engage swivel lock.
You may need to move the system around a
little to get the wheels to lock into the locked
direction.
4. Press on pedal no. 2
To release swivel lock
