Chapter 5 Components and Functions (Theory) 5-57
Section 5-14
Mechanical Descriptions
5-14-1 Monitor
• Tilt: 10° forwards and backwards
• Swivel: 90° rotation.
5-14-2 Top Console Positioning
• Vertical Access: The control panel offers 27 inches (200 mm) of vertical adjustment.
• Horizontal Access: The control panel offers 45° of horizontal adjustment when the Z-arm is
released.

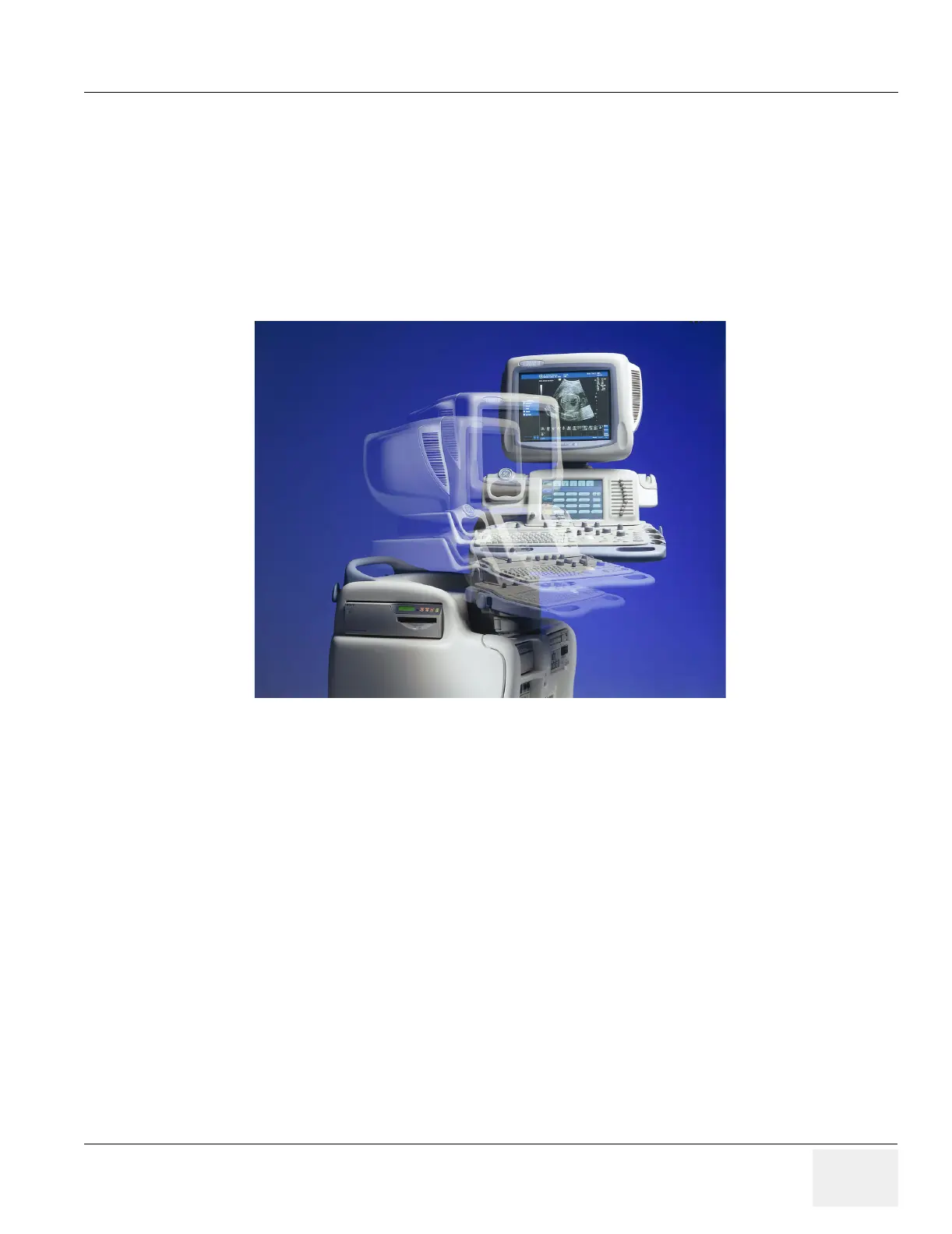

Figure 5-43 Top Console Positioning
