GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 4 Functional Checks 4-7
4-3-3-3 Monitor Display

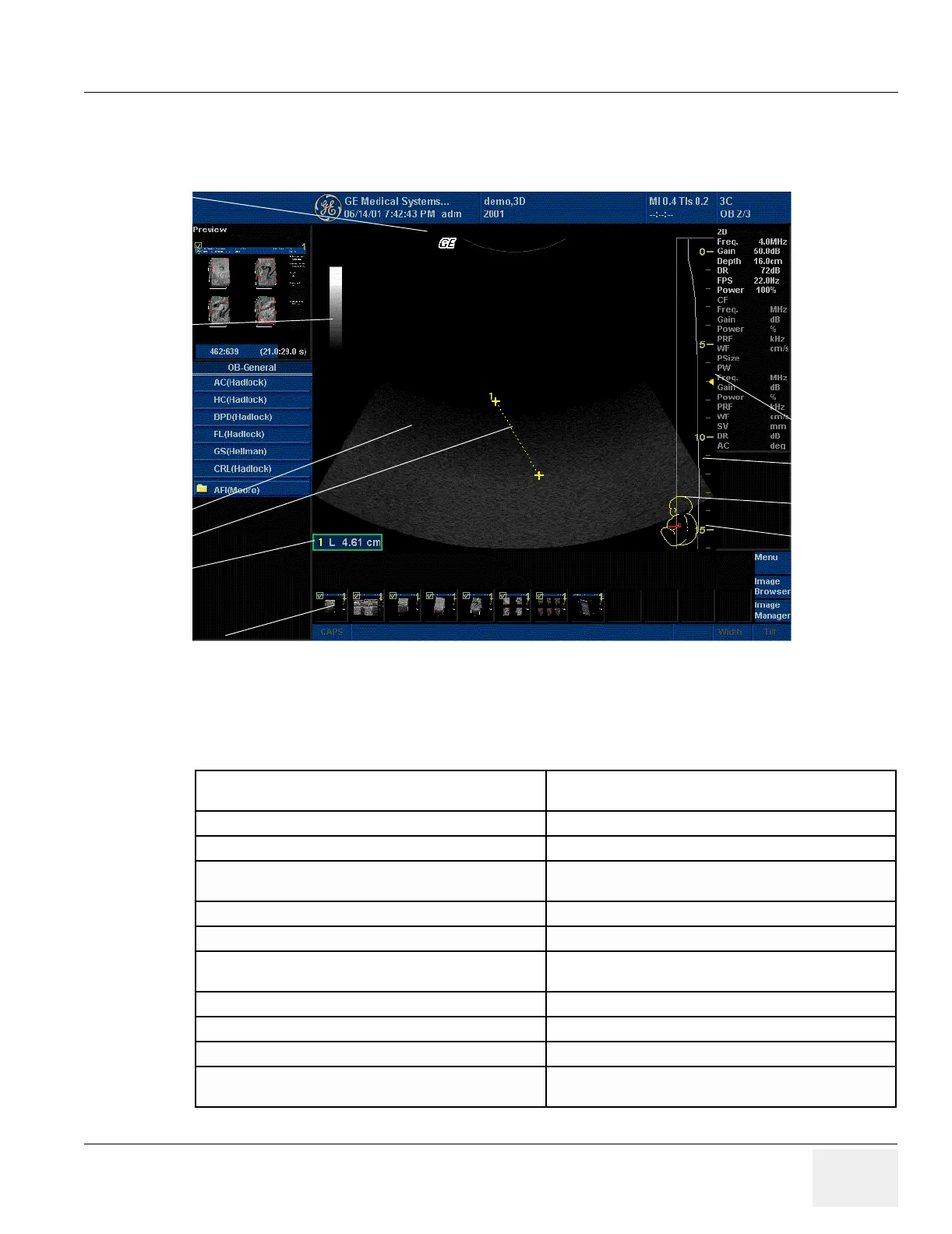

Figure 4-7 Monitor Display Tour
Table 4-2 Monitor Display Features
1. Institution/Hospital Name, Date, Time, Operator
Identification.
12. Probe Identifier. Exam Study.
2. Patient Name, Patient Identification. 13. Imaging Parameters by Mode (current mode highlighted).
3. Power Output Readout, System Status (real-time or frozen) 14. Focal Zone.
4. GE Symbol: Probe Orientation Marker. Coincides with a
probe orientation marking on the probe.
15. TGC.
5. Image Preview. 16. Body Pattern.
6. Gray/Color Bar. 17. Depth Scale.
7. Cine Gauge. 18. Image Management Menu: Menu, Delete, and Image
Manager.
8. Measurement Summary Window. 19. Image Palette.
9. Image. 20. Caps Lock: On/Off.
10. Measurement. 21. System Messages Display.
11. Results Window. 22. Trackball Functionality Status: Scroll, M&A (Measurement
and Analysis), Position, Size, Scan Area Width and Tilt.
1
2
3
4
5
6
7
8
9
10
11
19
20
21
22
18
12
17
16
15
14
13
