9-14 Section 9-10 - Monitor Assembly
Section 9-10
Monitor Assembly

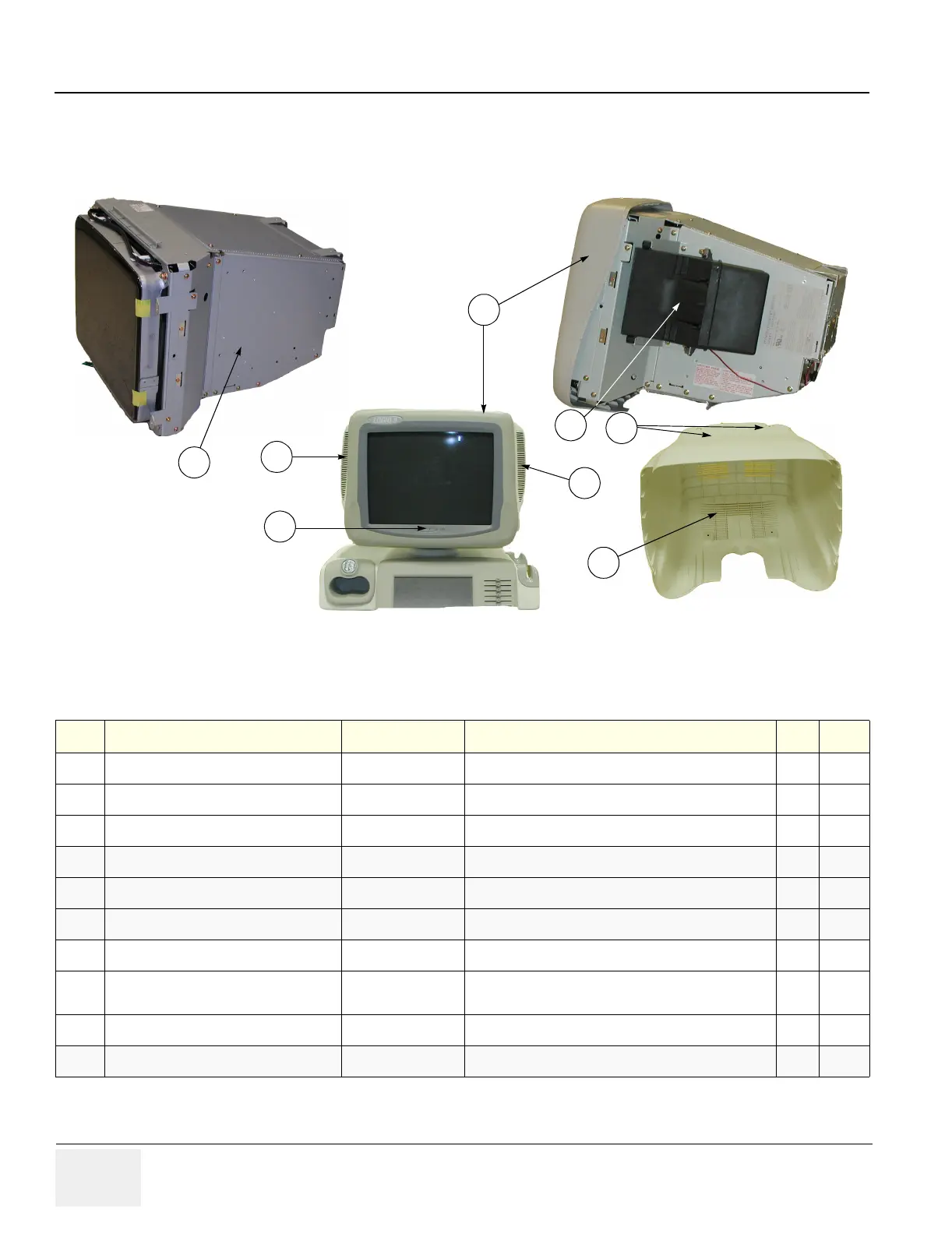

Figure 9-8 Monitor Assembly
Table 9-11 Monitor Assembly
Item Part Name Part Number Description Qty FRU
301
Open Frame Monitor
2283334 - Same as Vivid 7 & LOGIQ 7- 11
302
Monitor Cable Assembly
2304171 - Same as Vivid 7 & LOGIQ 7- 12
303
Speaker and Mounting Bracket Kit
2297882 22
304
Monitor Tilt/Swivel/Male Post
2284225 Neck Assembly 1 2
305
Monitor Rear Cover Assembly
2303930 Assembly with Speaker Grills 1 2
306
Monitor Left Speaker Grill
2279675 Labeled as the LEFT Speaker Grill 1 2
307
Monitor Right Speaker Grill
2279676 Labeled as the RIGHT Speaker Grill 1 2
308
Monitor Screw Caps (covers)
2303932
Covers the screws on each side in the back of the
cover - Same as Vivid 7 & LOGIQ 7-
22
309
Monitor Front Bezel Assembly
2303929 Includes three logos Vivid 7, LOGIQ 7 and LOGIQ 9 1 2
310
Monitor Switch Assembly
2297050 User Switch Assembly 1 2
