Chapter 3 Installation 3-5
Section 3-4
Preparing for Installation
3-4-1 Verify Customer Order
Compare items received by the customer to that which is listed on the delivery order. Report any items
that are missing, back ordered or damaged.
3-4-2 Physical Inspection
3-4-2-1 System Voltage Settings
Verify that the scanner is set to the correct voltage.
The Voltage settings for the LOGIQ™ 9 Scanner is found on a label to the right of the Power switch and
External I/O, on the rear of the system.
3-4-2-2 Video Formats
Check that the video format is set to the locally used video standard, NTSC or PAL.
3-4-3 EMI Protection
This unit has been designed to minimize the effects of Electo-Magnetic Interference (EMI). Many of the
covers, shields, and screws are provided primarily to protect the system from image artifacts caused by
this interference. For this reason, it is imperative that all covers and hardware are installed and secured
before the unit is put into operation.

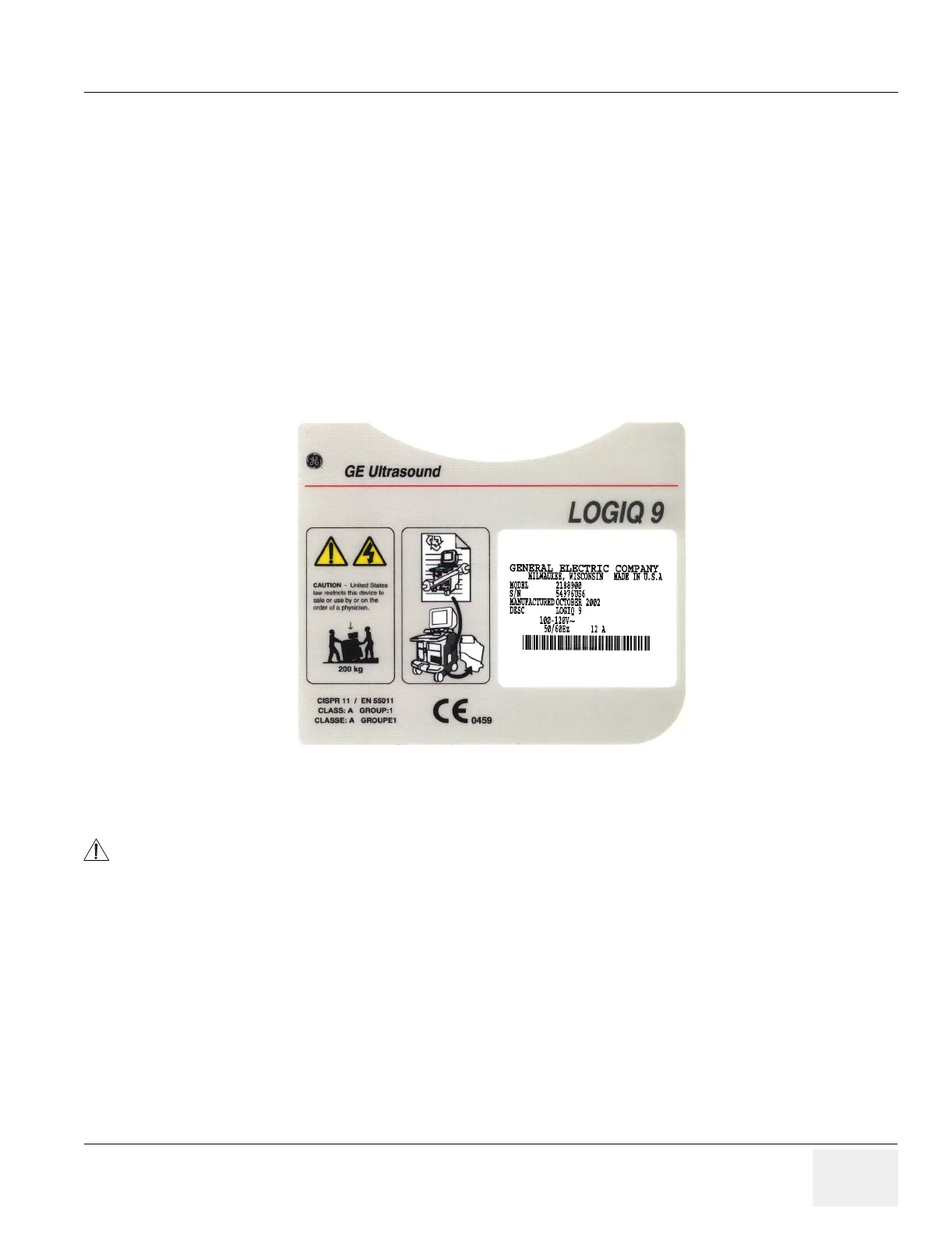

Figure 3-2 Rating Plate Example
WARNINGWARNING
CONNECTING A LOGIQ™ 9 SCANNER TO THE WRONG VOLTAGE LEVEL WILL MOST
LIKELY DESTROY THE SCANNER.
