6-12 Section 6-6 - Brake Arm Adjustment
Section 6-6
Brake Arm Adjustment
Adjustments to the brake arm may be necessary if the pedals do not depress readily nor engage so the
front wheels lock in place and do not swivel.
6-6-1 Tools
Flat-head screwdriver
6-6-2 Manpower
One person, 1 hour + travel
6-6-3 Preparations
1.) Remove the front bumper as described in Front Bumper Replacement Procedure on 8-11.
Select the movie camera icon to view the video of the brake arm
adjustment procedure.
1 minute and 58 seconds

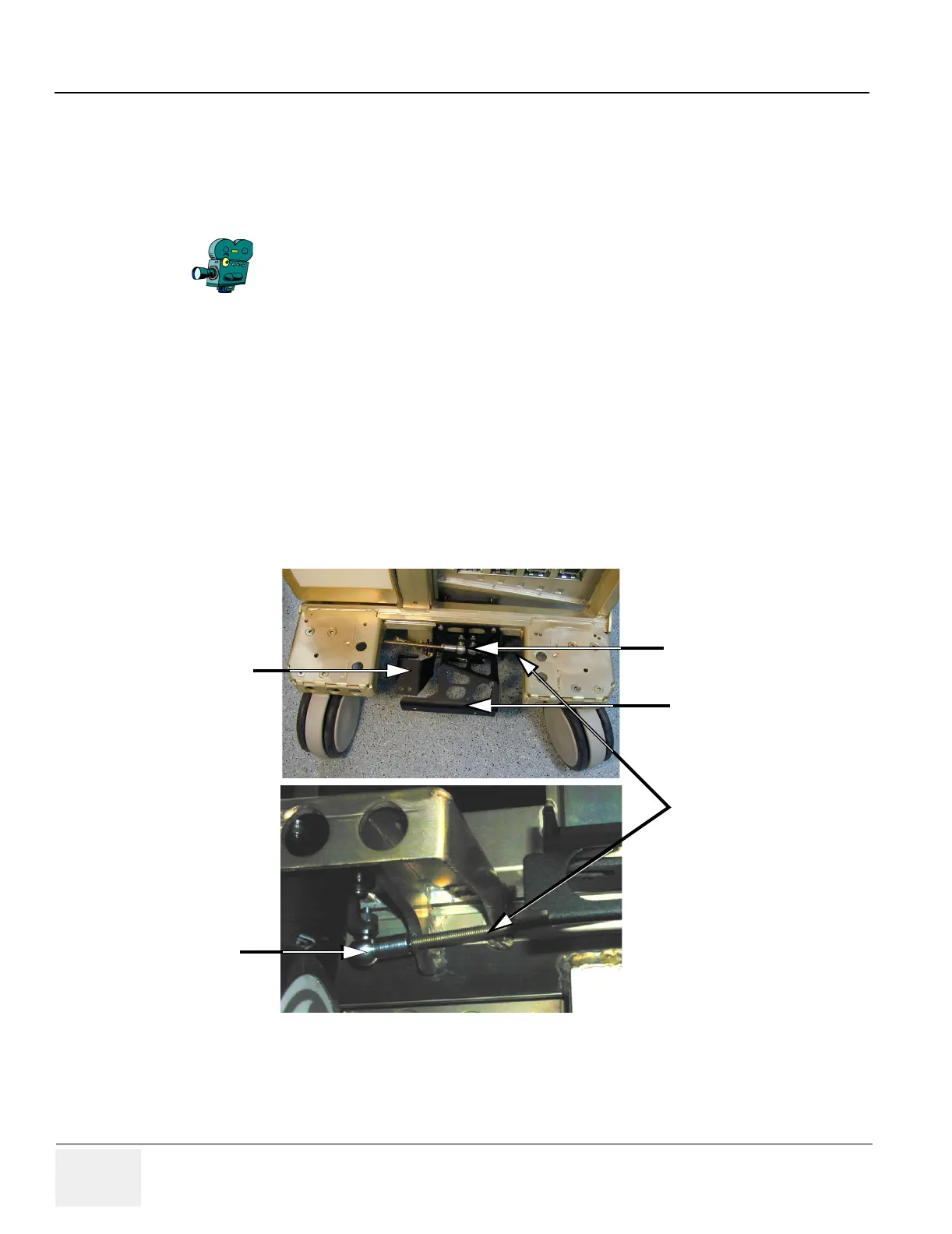

Figure 6-9 Brake Adjustment
TOP VIEW
UNDERSIDE VIEW
Swivel Lock Pedal /
Brake Pedal Release
Brake Pedal /
Swivel Lock Release
Brake Arm
Adjustment Rod
Front Brake Arm
Adjustment Nuts
Rear Brake Arm
Adjustment Nut
