GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 5 Components and Functions (Theory) 5-17
5-3-5 B/M Mode Processor (BMP) Board
5-3-5-1 General Description
The B/M-mode Processor (BMP) subsystem takes the digital complex data from the EQ subsystem and
converts it to either B-mode (2D) or M-mode (timeline) data.
• Processes I & Q data for B-Mode and M-Mode imaging.
• Calculates echo signal’s amplitude.
• Converts sample rate to display rate.
• Implements dynamic range and edge enhancement.
• Splices multiple focal zones into one image.
• Sends processed B/M data to the Scan Control Board.

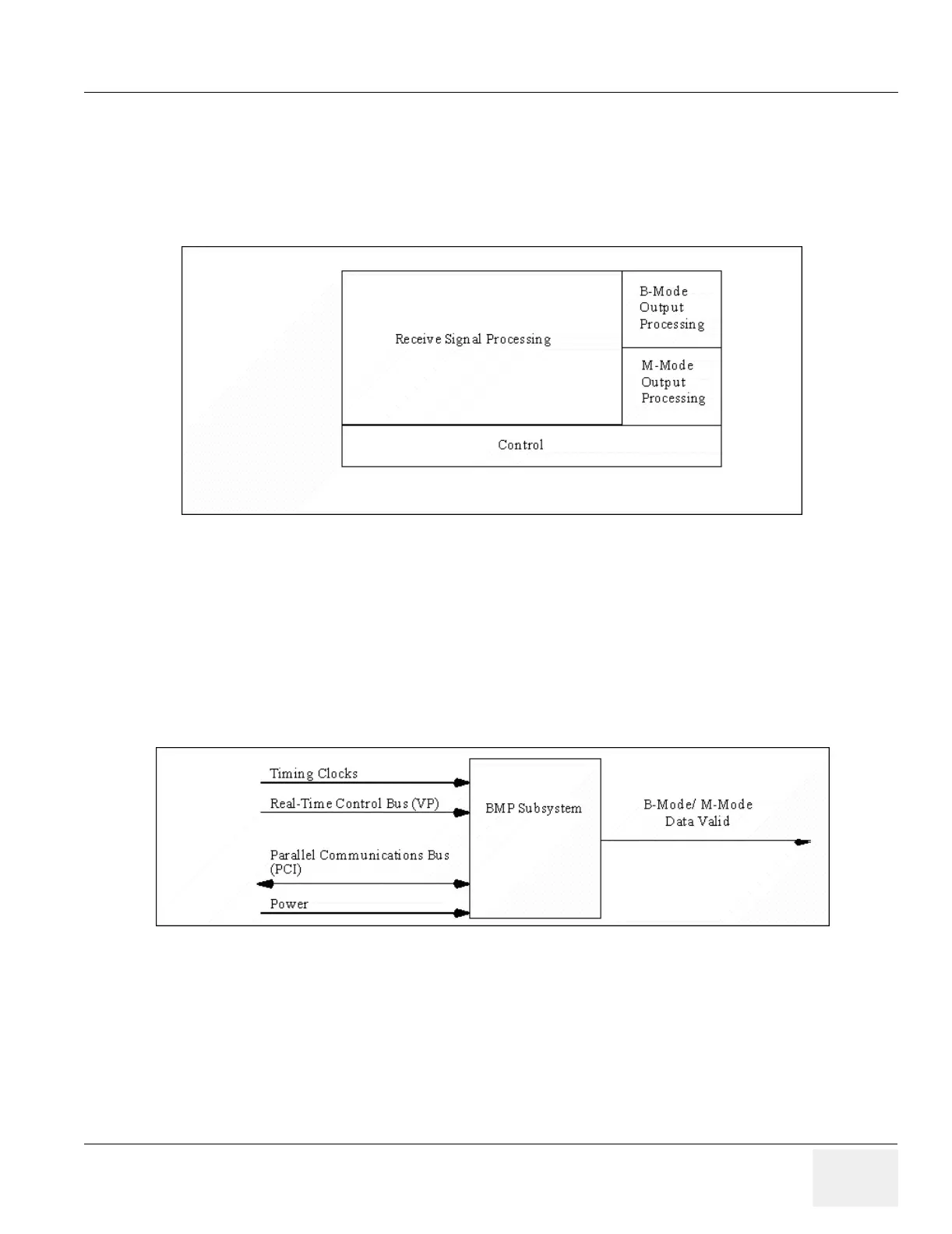

Figure 5-13 BMP Internal Functions
Figure 5-14 BMP Control Inputs/Outputs
