8-90 Section 8-17 - AC Transformer Replacement Procedure
8-17-4 AC Transformer Removal Procedure
1.) Loosen screw A, B and C (See Figure 8-100) a few turns. Unscrew screw D and E while you hold
AC Transformer to prevent it from tilting forwards.
2.) Push AC Transformer to the left, tilt it forwards to free screw keyholes from screw heads (A,B and
C) and lift the transformer off hooks along its the lower inner edge.
8-17-5 AC Transformer Installation Procedure
1.) Hang the inner lower edge of AC Transformer in its hooks.
2.) Adjust its position so that screw keyholes matches screw heads (A,B and C).
3.) Tilt AC Transformer upwards and push it to the right, screw heads into the keyholes.
4.) Hold it steady while you fasten screw D and E.
5.) Fasten screw A, B and C.
6.) Connect two cables.

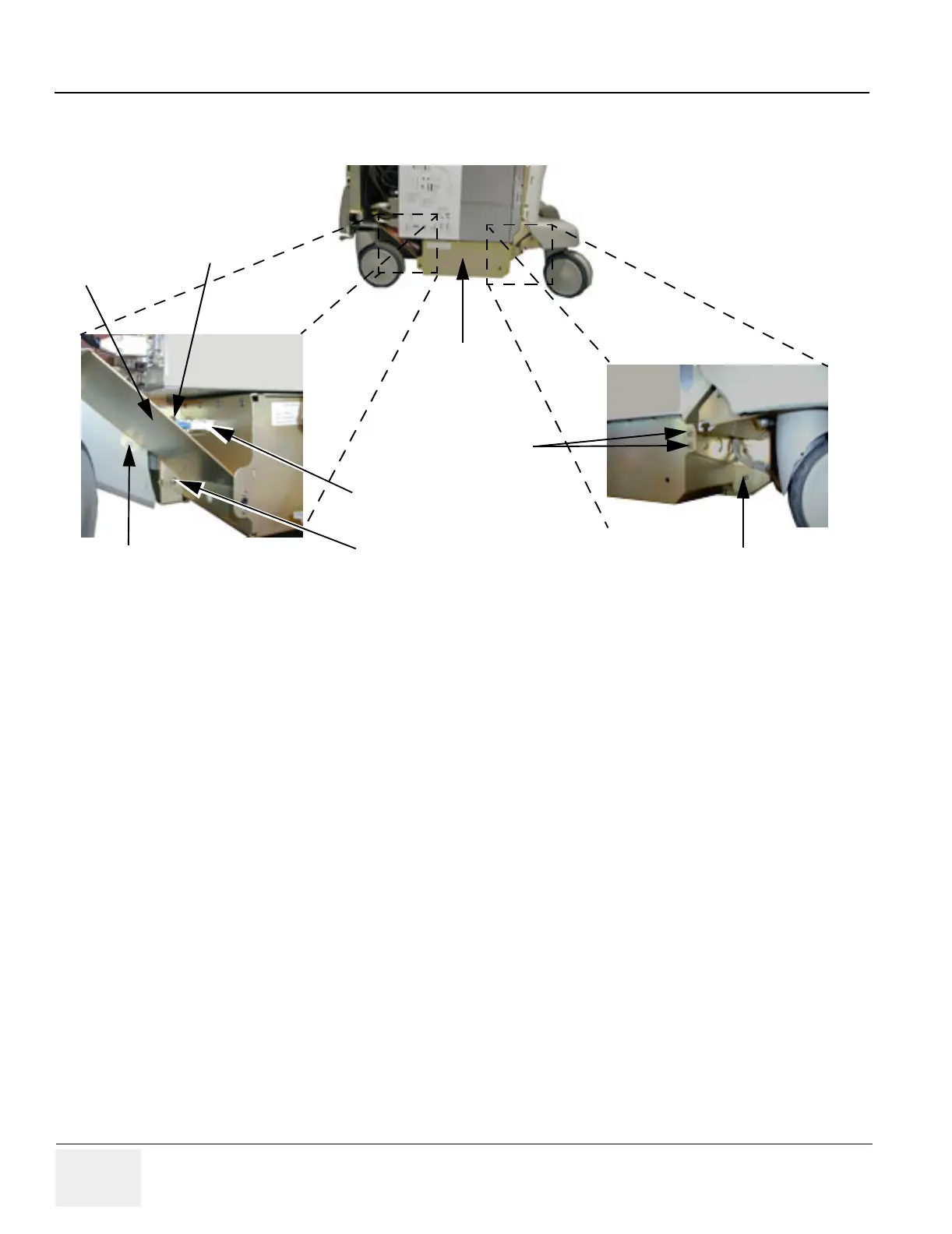

Figure 8-100 AC Transformer
Cable connectors.
Screw C
Rat Guard
Screws D, E
Old expansion plug
Screw A
AC Transformer
Screw B
