GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
5-2 Section 5-2 - General Information
Section 5-2
General Information
LOGIQ™ 9 is a phased and linear array ultrasound imaging scanner. It has provisions for analog input
sources like ECG and Phono. A Doppler probe may also be connected and used.
The system can be used for:
- 2D Gray Scale and 2D Color Flow Imaging
- M-Mode Gray Scale Imaging
- Color M-Mode
- Doppler
- Different combinations of the above modes
LOGIQ™ 9 is a digital beamforming system.
Signal flow travels from the Probe Connector Panel to the Front End Electronics, to the Back-End
Processor, and finally displayed on the monitor and peripherals.
System configuration is stored on the hard drive and all necessary software is loaded from the hard
drive on power up.

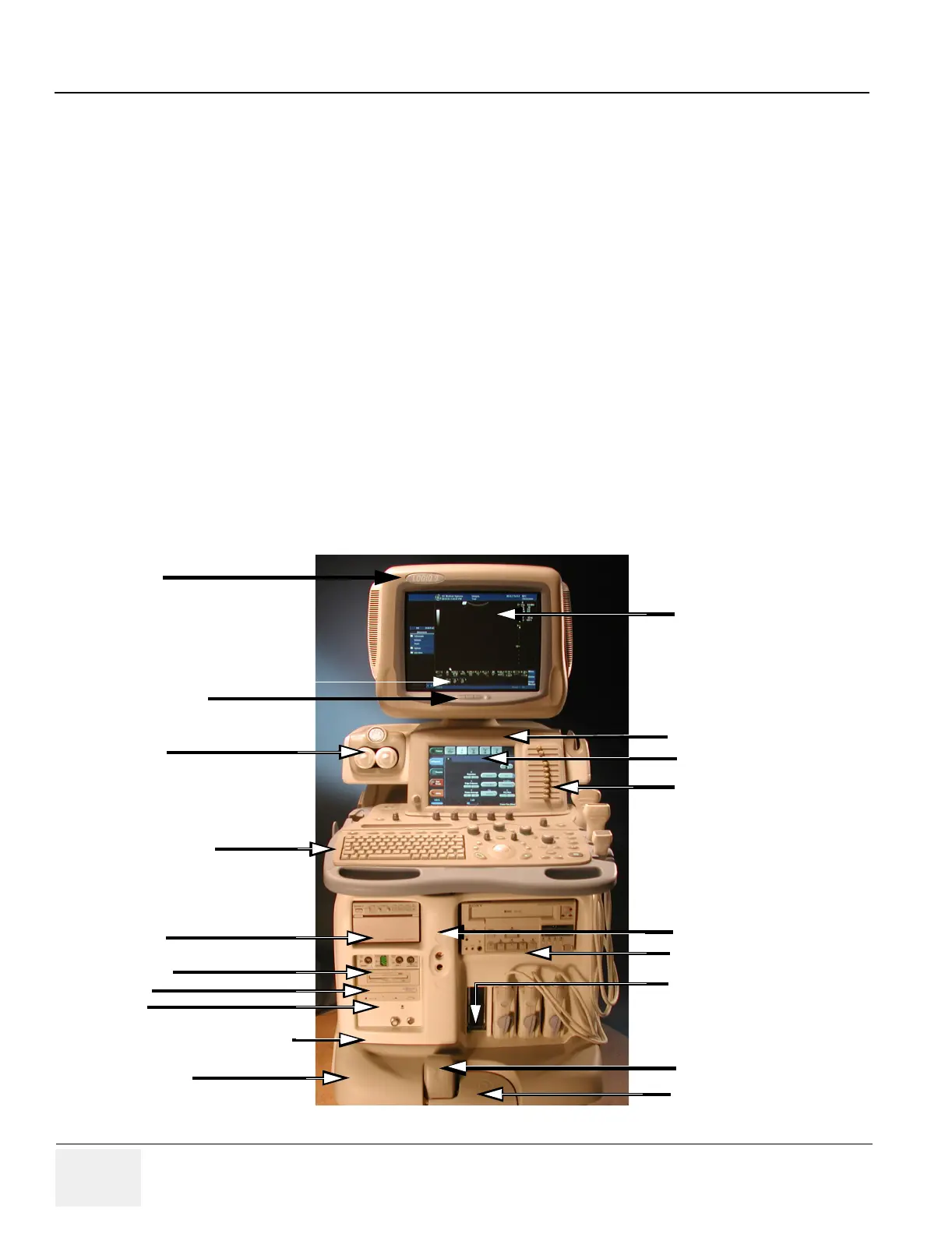

Figure 5-1 LOGIQ™ 9 Major Components
Front Bumper
Backend Processor Chassis
CD-ROM
3.5” MOD
ECG Module
B/W Printer
Operator Console
Gel Warmer
Monitor Controls
Name Plate
Monitor
Op. Panel Upper Bezel
Touchscreen/Display
TGC Slidepot Knobs
Front Cover
VCR
Probe Connector
Swivel Lock &
Brake Release
Brake & Swivel Release
