GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
6-4 Section 6-3 - Monitor
6-3-2 Monitor Tilt
The monitor is capable of a full 10° forward and backward tilt. Although the default setting of the tilt
tension on the monitor should be adequate to tilt the monitor for your viewing preference, it can be easily
adjusted.
The monitor chassis is attached to the monitor mount plate that has a shaft that inserts into the top plate
of the scanner. This feature allows the monitor to swivel without need for adjustment.
The monitor mount plate has two points for adjustment.
6-3-2-1 Monitor Tilt Adjustment Procedure
Passing through the monitor mount plate on its underside is a large bolt, with a locking nut on its left
side, that provides the tension for monitor tilt. Adjust the tilt tension by loosening or tightening the locking
nut on this bolt.
NOTE: The right side of this bolt will receive an Allen wrench to provide resistance when loosening and
tightening the locking nut.
6-3-2-2 Monitor Counter-balance Adjustment Procedure
At the back of the monitor mount plate is a nut securing a bolt passing through the shaft. This bolt has
a tapered end and several spring washers that when seated into the cylinder provides a proper counter-
balance for the monitor.
6-3-2-3 Tools
Phillips screwdriver
Open-ended wrenches
6-3-2-4 Manpower
1 person, 1 hour + travel or
2 people, 1 hour + travel if the monitor needs to be removed.

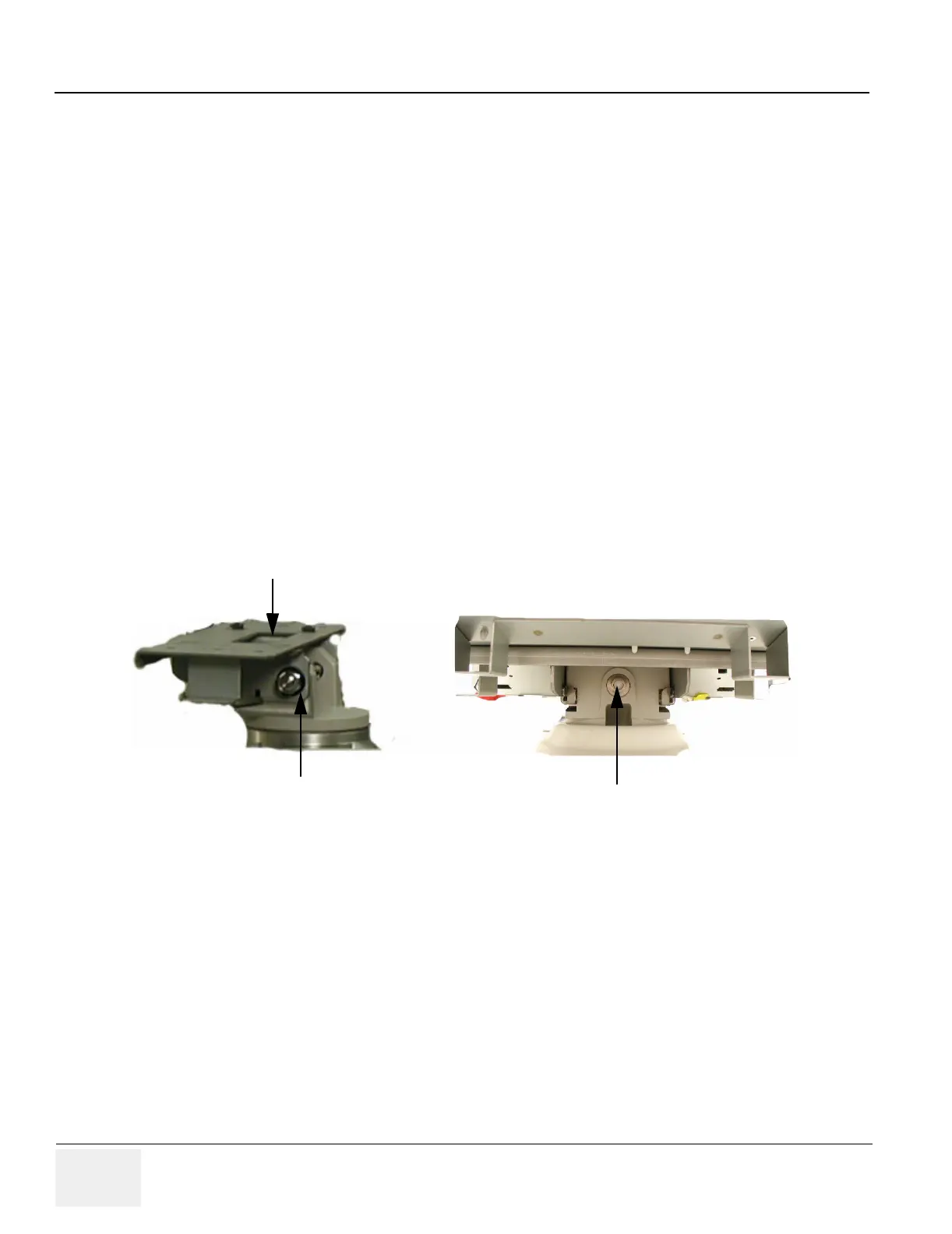

Figure 6-3 Monitor Tilt Tension Adjustment
Monitor Mount Plate
Tilt Adjustment Bolt
Counter-balance Adjustment Bolt
