GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-100 Section 8-21 - Z-Release Handle Replacement
Section 8-21
Z-Release Handle Replacement
8-21-1 Manpower
One person, 30 minutes
8-21-2 Tools
Hexagon key 3 mm
8-21-3 Z-Release Handle Removal Procedure
1.) Unscrew 1 hexagon screw.
2.) Release the wire-end lock from the handle.
3.) Remove the handle.
8-21-4 Z-Release Handle Installation Procedure
1.) Install wire-end lock in the handle.
2.) Install handle.
3.) Fasten hexagon screw.

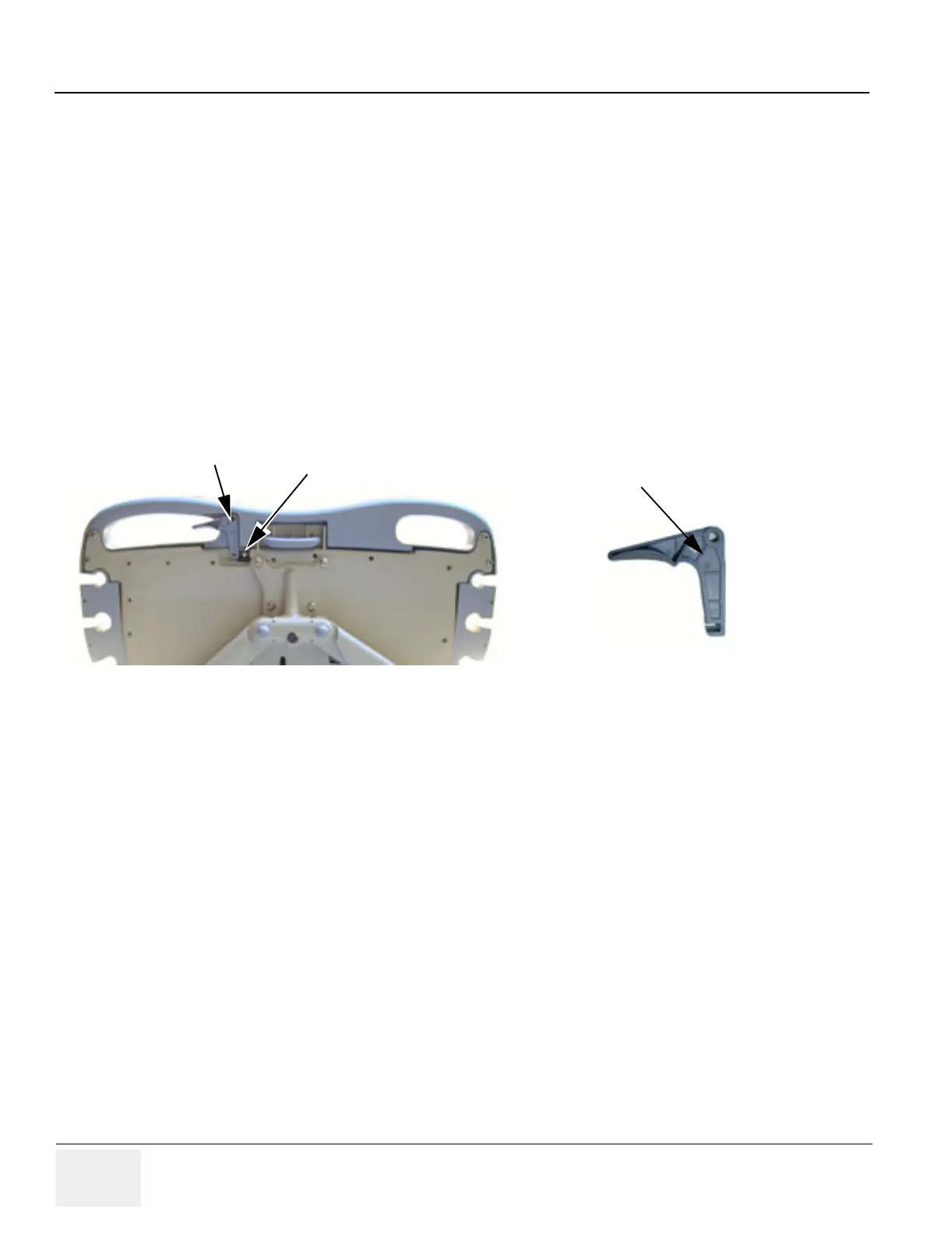

Figure 8-111 Z-release handle
Screw
Wire-end lock
Z-Handle
