GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
Chapter 8 Replacement Procedures 8-39
Section 8-7
BEP MOD Replacement Procedure (BEP 2.x and above only)
8-7-1 Manpower
One person, 1 hour + travel
8-7-2 Tools
Phillips screwdriver
8-7-3 Preparations (click here to view the cover removal video)
1.) Power Down/Shutdown the system as described in Section 4-3-2 on page 4-3.
2.) Remove the left- and/or right-side covers as shown in Section 8-2-2 on page 8-5.
3.) Remove the front cover as shown in Section 8-2-5 on page 8-9.
8-7-4 MOD Drive Removal Procedure
NOTE: Mounting hardware may vary in size from M3 to 4-40 threads. Hardware length may seem the
same but in fact may be different and very critical. ALWAYS keep track of EXACTLY where
each screw was removed so that it is returned to the same place on re-assembly.
1.) Remove the side cover from the BEP. Carefully disconnect the cover fan power cable and set the
cover aside.
2.) The MOD is enclosed in a metal case. The power connector will have to be unplugged at the power
supply connectors. The IDE Cable will have to be unplugged from the CD-RW Drive and the
Motherboard. See Figure 8-43 on page 8-41 for reference.
3.) Remove the one screw attaching the side of the MOD as shown in Figure 8-40 on page 8-40 .

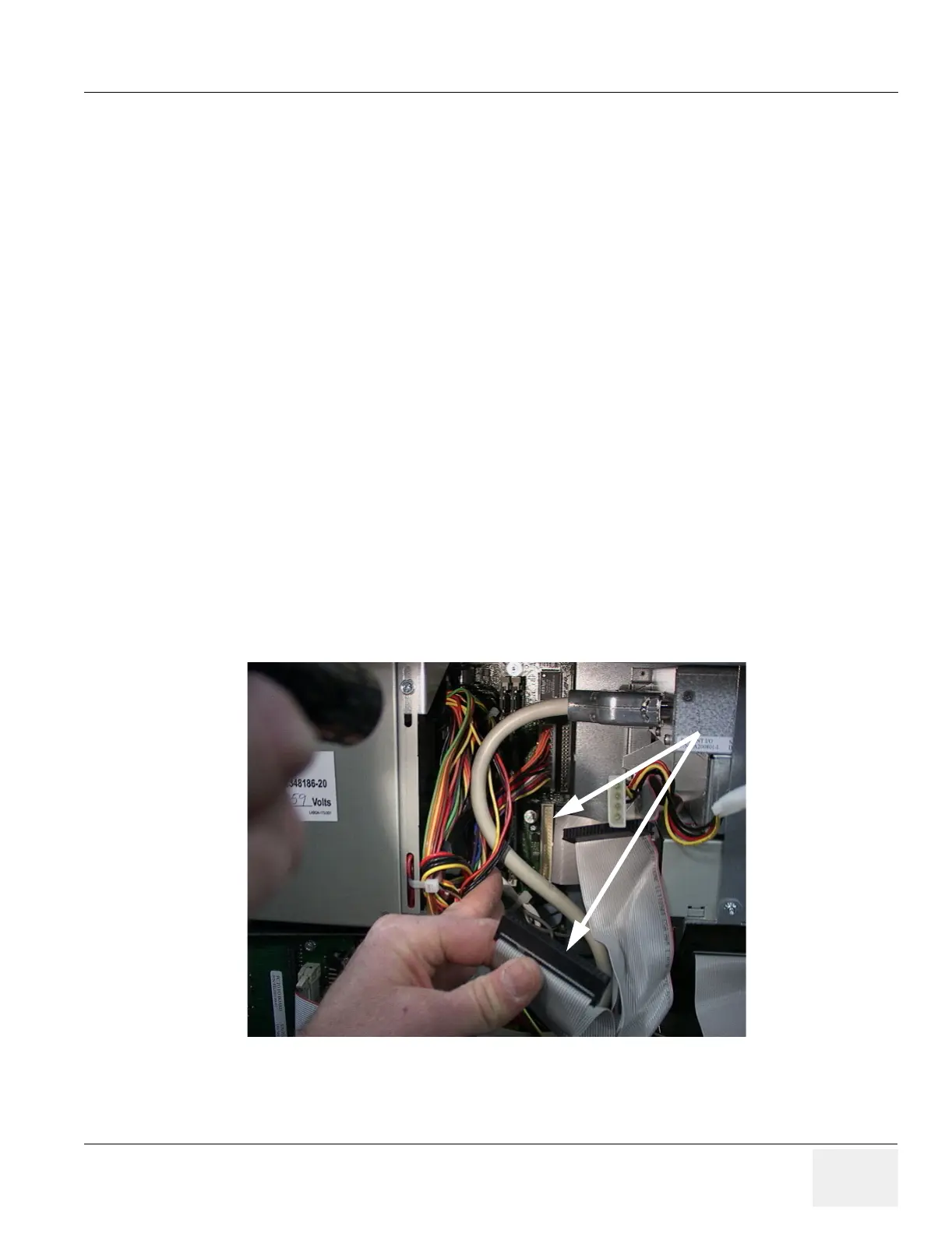

Figure 8-39 BEP Motherboard IDE Connection
To Next Page
