Chapter 7 Diagnostics/Troubleshooting 7-27
7-7-4-5 Board-Level TD Diagnostics
• All Board-Level TD Diags: This configuration, again, tests the SCB's Clock Generation and PCI
Bridge. Additionally, the TD access functionality is more fully tested, building on the SCB's board-
level tests.
The following subsections outline the Board-Level TD Diagnostics.
• TD Memory Diag: This diagnostic shall test all of the on-board memory, for all installed TD boards,
including registers.
NOTE: Guidelines in Section 7-9 will enumerate the memory locations.
• TD Access Diag: Tests all of the Access Modes utilized for Host/TD communication, as well as
Channel RAM to Rigel transfers.
This diagnostic includes single-location accesses, single-board broadcasts, and multiple-board
broadcasts. The diagnostic will adjust its parameters depending upon how many TD boards are
installed in the system.
7-7-4-6 Board-Level XDIF Diagnostics
• All Board-Level XDIF Diags: Targets the XDIF. The system setup required for this Diagnostic
Group is shown in Figure 7-26.
• This Diagnostic Group consists of a single diagnostic, outlined in the following subsection.
• XDIF Interface Diag: Tests the non-probe generated communication between the EQ and the
XDIF.
This diagnostic shall test all of the XDIF functionality that is testable without a probe or probe
simulator attached to the system, including the IIC communication.

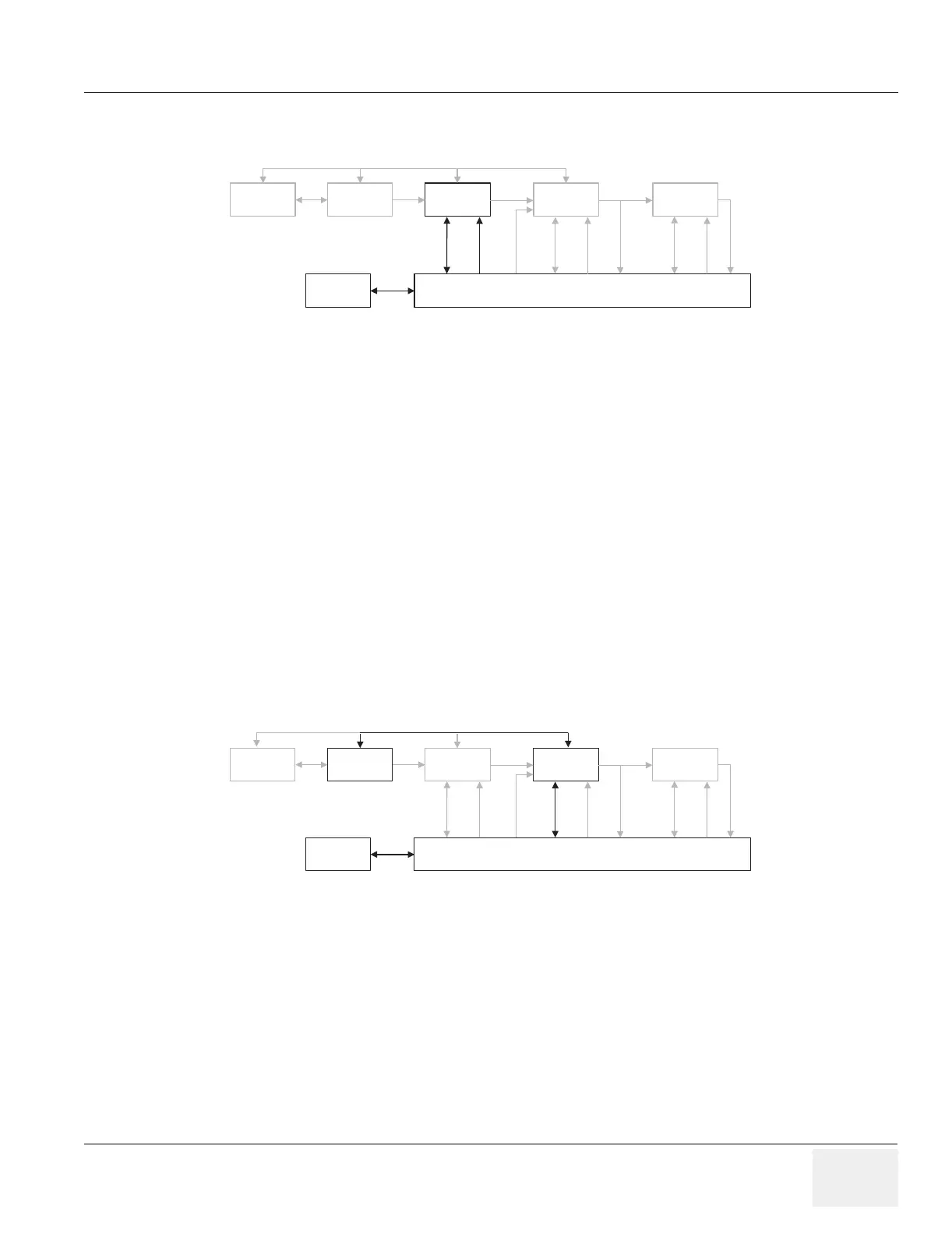

Figure 7-25 Board-Level TD Block Diagram
Figure 7-26 Board-Level XDIF Block Diagram
XDIF/RF TD’s EQ BMP
Scan Control Board
Host
PCI
PCI
PCI
IQ,
RxSYNC
BM
IQ
IIC
RF
Probe
RF
TD
CTRL
TxSYNC
RxSYNC
TxSYNC
TxSYNC
XDIF/RF TD’s EQ BMP
Scan Control Board
Host
PCI
PCI
PCI
IQ,
RxSYNC
BM
IQ
IIC
RF
Probe
RF
TD
CTRL
TxSYNC
RxSYNC
TxSYNC
TxSYNC
