GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-12 Section 8-2 - Plastic Covers and Bumpers
8-2-8 Rear Handle Replacement Procedure
8-2-8-1 Manpower
One person, 15 minutes
8-2-8-2 Tools
• Phillips screwdriver size 2
• Hexagon key 5 mm
8-2-8-3 Preparations
1.) Shut down the system as described in 4-3-2 "Power Off / Shutdown" on page 4-3.
2.) Remove Side Covers as described in Side Covers (with Bumper) Replacement Procedure on page
8-5.
3.) Remove Top Cover as described in Top Cover Replacement Procedure on page 8-8.
8-2-8-4 Rear Handle Removal procedure
1.) Remove the two (2) hex-screws on each side of Rear Handle (See Figure 8-8).
2.) Pull the handle upwards.
8-2-8-5 Rear Handle Installation procedure
1.) Push Rear Handle down its slides. Fasten four (4) hex-screws.
2.) Install Top Cover as described in Top Cover Replacement Procedure on page 8-8 and Side Covers
as described in Side Covers (with Bumper) Replacement Procedure on page 8-5. (click here to view
the cover installation video)

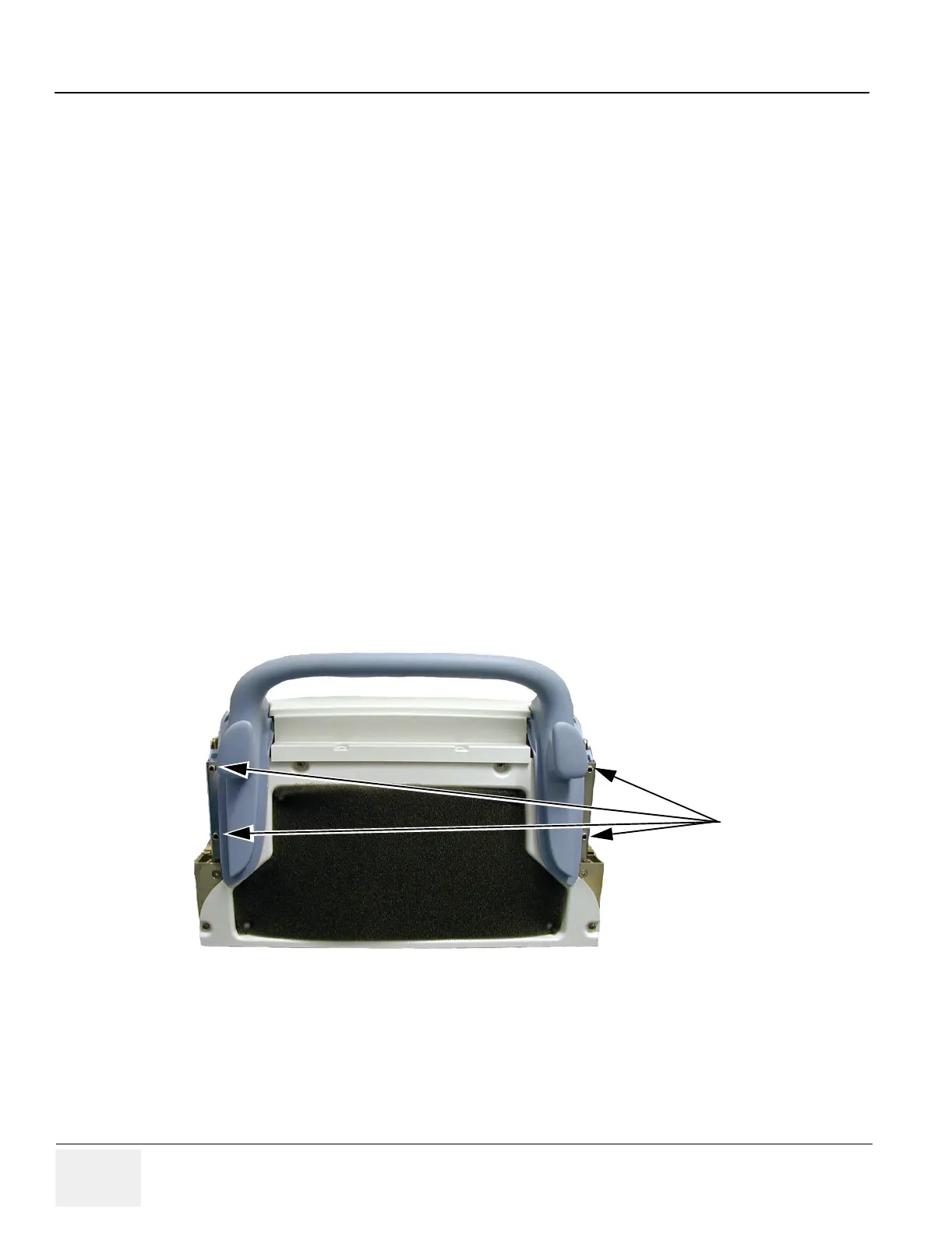

Figure 8-8 Rear Handle
Hexagon Screws
