GE MEDICAL SYSTEMS PROPRIETARY TO GE
D
IRECTION 2294854-100, REVISION 3 LOGIQ™ 9 PROPRIETARY MANUAL
8-46 Section 8-8 - BEP Patient I/O Replacement Procedure (BEP 2.x and above only)
Section 8-8
BEP Patient I/O Replacement Procedure (BEP 2.x and above only)
8-8-1 Manpower
One person, 1 hour + travel
8-8-2 Tools
Phillips screwdriver
8-8-3 Preparations (click here to view the cover removal video)
1.) Power Down/Shutdown the system as described in Section 4-3-2 on page 4-3.
2.) Remove the left- and/or right-side covers as shown in Section 8-2-2 on page 8-5.
3.) Remove the front cover as shown in Section 8-2-5 on page 8-9.
8-8-4 Patient I/O Removal Procedure
NOTE: Mounting hardware may vary in size from M3 to 4-40 threads. Hardware length may seem the
same but in fact may be different and very critical. ALWAYS keep track of EXACTLY where
each screw was removed so that it is returned to the same place on re-assembly.
1.) Remove the side cover from the BEP. Carefully disconnect the cover fan power cable and set the
cover aside.
2.) Disconnect the cable from the back of the patient I/O. It may be easier to disconnect this cable at
the I/O VIC Tray because access is limited due to space behind the Patient I/O.
3.) Remove the one screw attaching the side of the Patient I/O as shown in Figure 8-50 on page 8-47 .

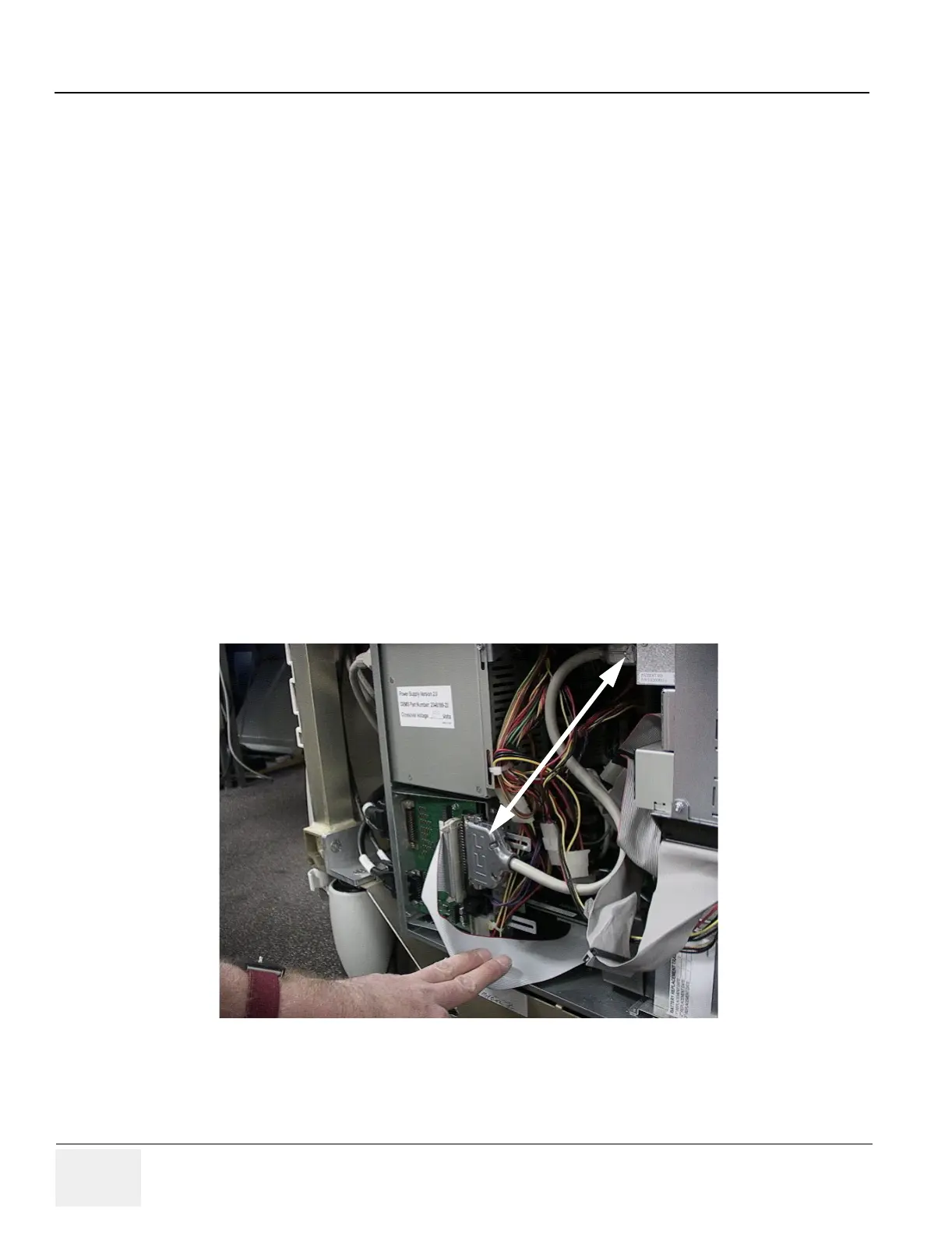

Figure 8-49 Patient I/O Connection
