SCADA Communications
P4
4x/EN SC/
H
b
6
MiCOM P40 A
gile
P442, P44
4
(SC) 12
-
29

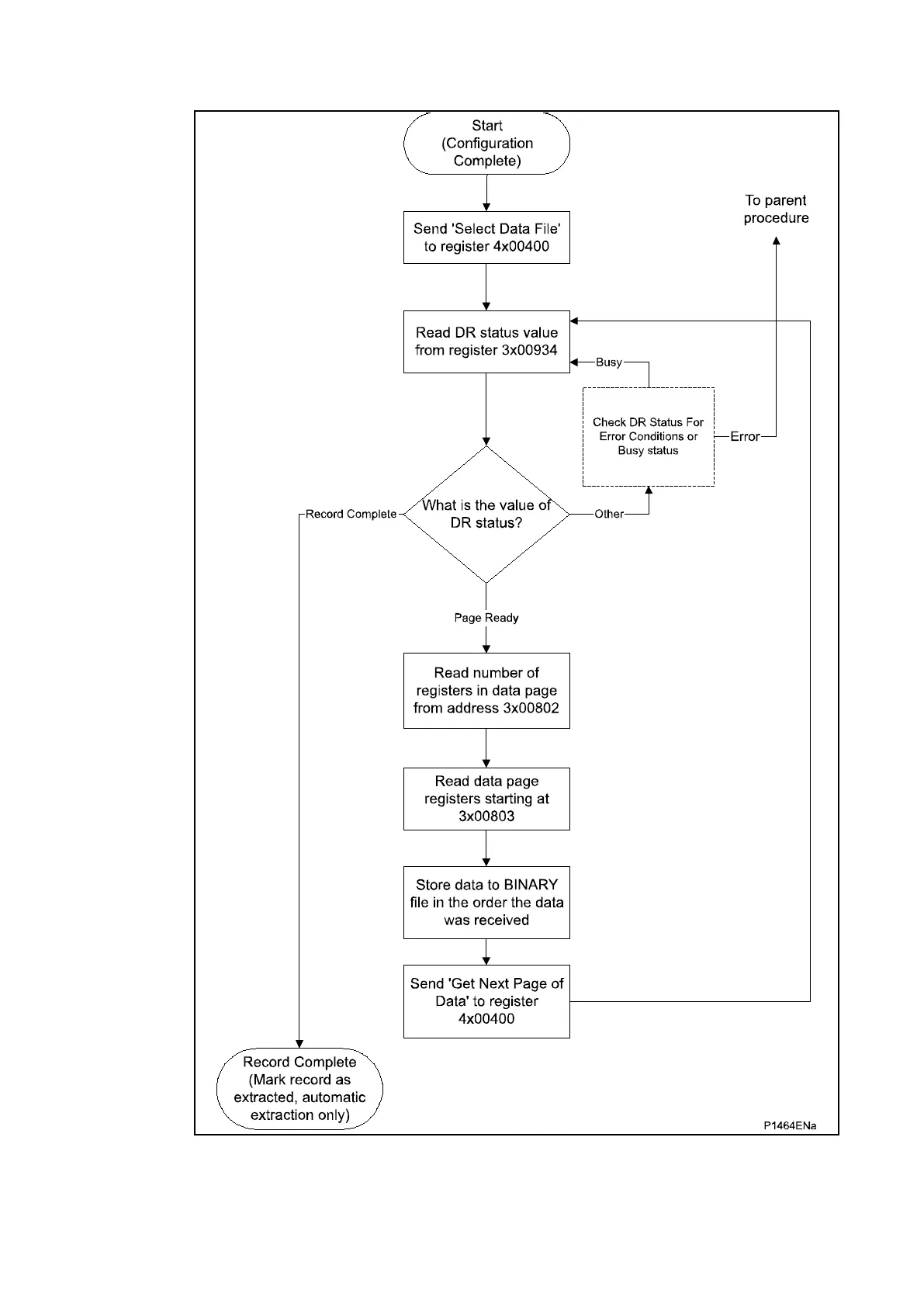

Figure 7
:
E
xtrac
ting the comtrade b
inary data file
During the extraction of
the COMTRADE
files, an error
may
occur that will be report
ed on the
DR Status register 3x0
0934. This can b
e caused by the relay ove
rwriting the re
cord being
extracted or due to t
he master station iss
uing a command that is no
t within the bounds of t
he
extraction procedure.
