P44x/EN IN/Hb
P442, P444 (IN) 14-

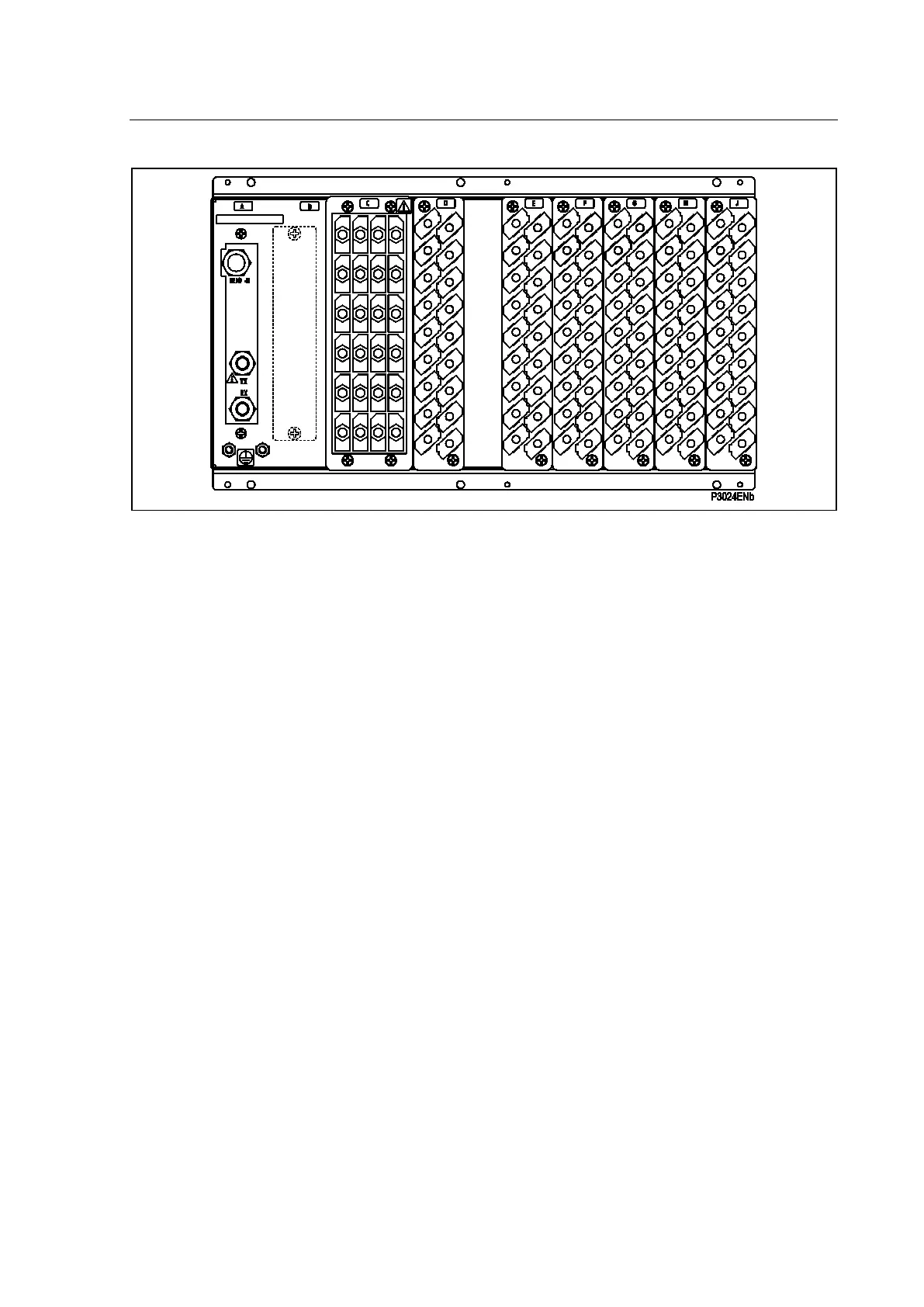

7 MICOM P442 – REAR VIEW (HARDWARE M)
A – Optional board
(1)
F – Output relay/High Break board
(2)
B – Optional board
(1)
G – Output relay board
C – Current and voltage input board F – Power supply board
D – Opto-input board
E – Opto-input board * = option depending on the model
(1)
Hardware options:
Refer to Introduction chapter section 3.1 Ordering Options
(2)
Models:
Refer to Introduction chapter section 3.1 Ordering Options
