Getting Started
P44x/EN GS/Hb6
MiCOM P40 Agile P442, P444
(GS) 3-
7
A – Optional board * F Output relay/High Break board *
B – Optional board * G Output relay board
C Current and voltage input board F Power supply board
D Opto-input board
E – Opto-input board * = option depending on the model

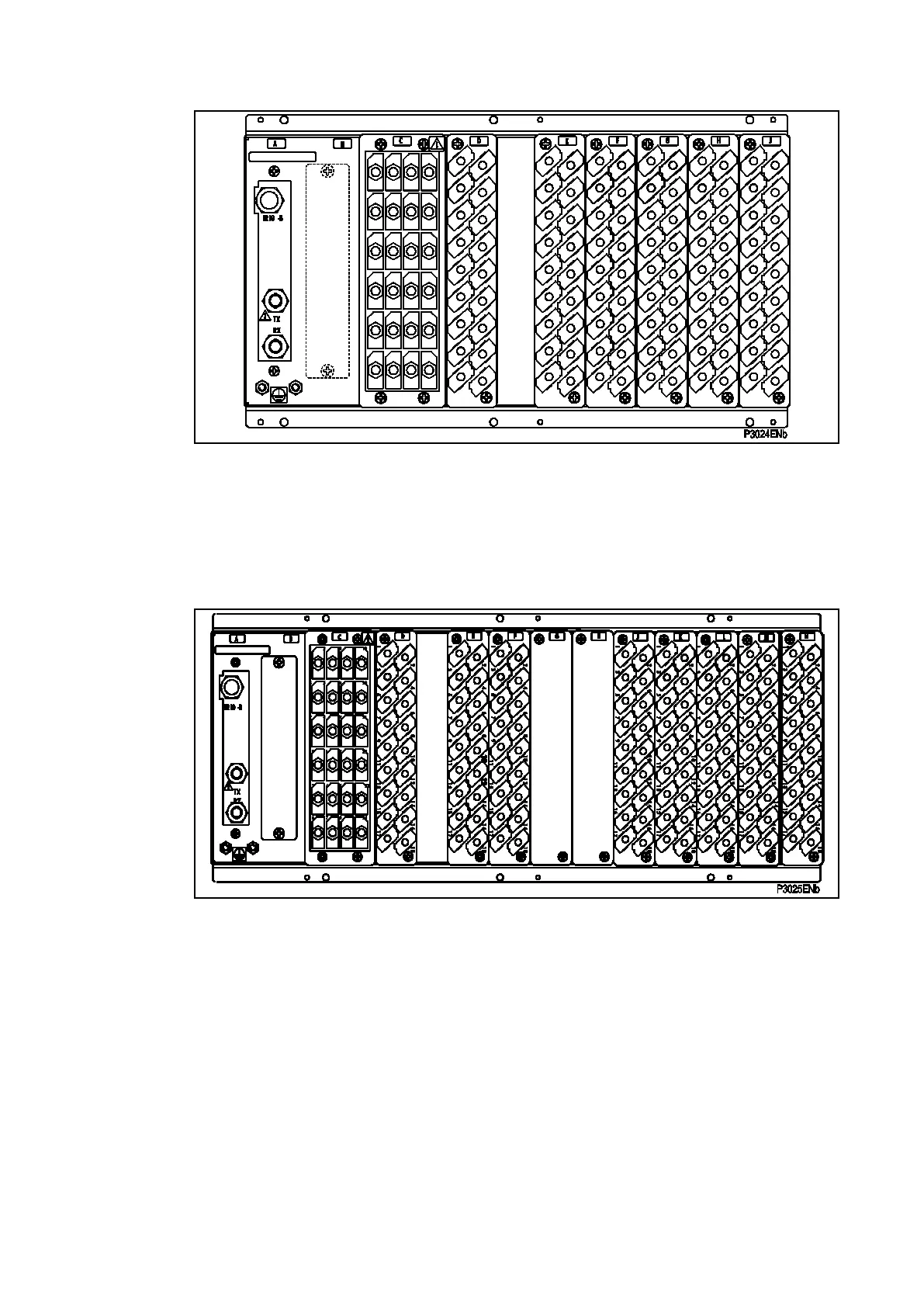

Figure 2a: P442 Relay rear view (60 TE case)
A – Optional board * H Relay board
B – Optional board * J – Output relay/High Break board *
C Current and voltage input board K – Output relay/High Break board *
D Opto-input board L Output relay/High Break board *
E – Opto-input board M – Relay board
F Opto Input board N Power supply board
G Relay board * * = option depending on the model
Figure 2b: P444 Relay rear view (80 TE case)
Refer to the wiring diagram in section P44x/EN IN for complete connection details.
