7 CiA402 device profile
7.4 Device control
187
Lenze · i700 servo inverter · reference manual · DMS 3.0 EN · 06/2016 · TD06
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.4.1.5 Disable operation
 From all states
 Power section inhibited (pulse inhibit)
 Power section enabled
This command serves to inhibit the enabled
operation again.
• The pulse inhibit is set.
• If automatic brake operation is activated,
the parameterised brake closing time is
observed: The system waits until the brake
is applied before the pulse inhibit is set.
• A changeover back to the "Switched on
"
device status takes place.
Bit pattern for the "Disable operation" command in the Controlword (0x6040 or 0x6840 for axis B):
Bits 15 - 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Fault reset Control bits depending on the operating mode Enable
operation
Activate quick
stop
Enable voltage Switching on
X0X X X0111

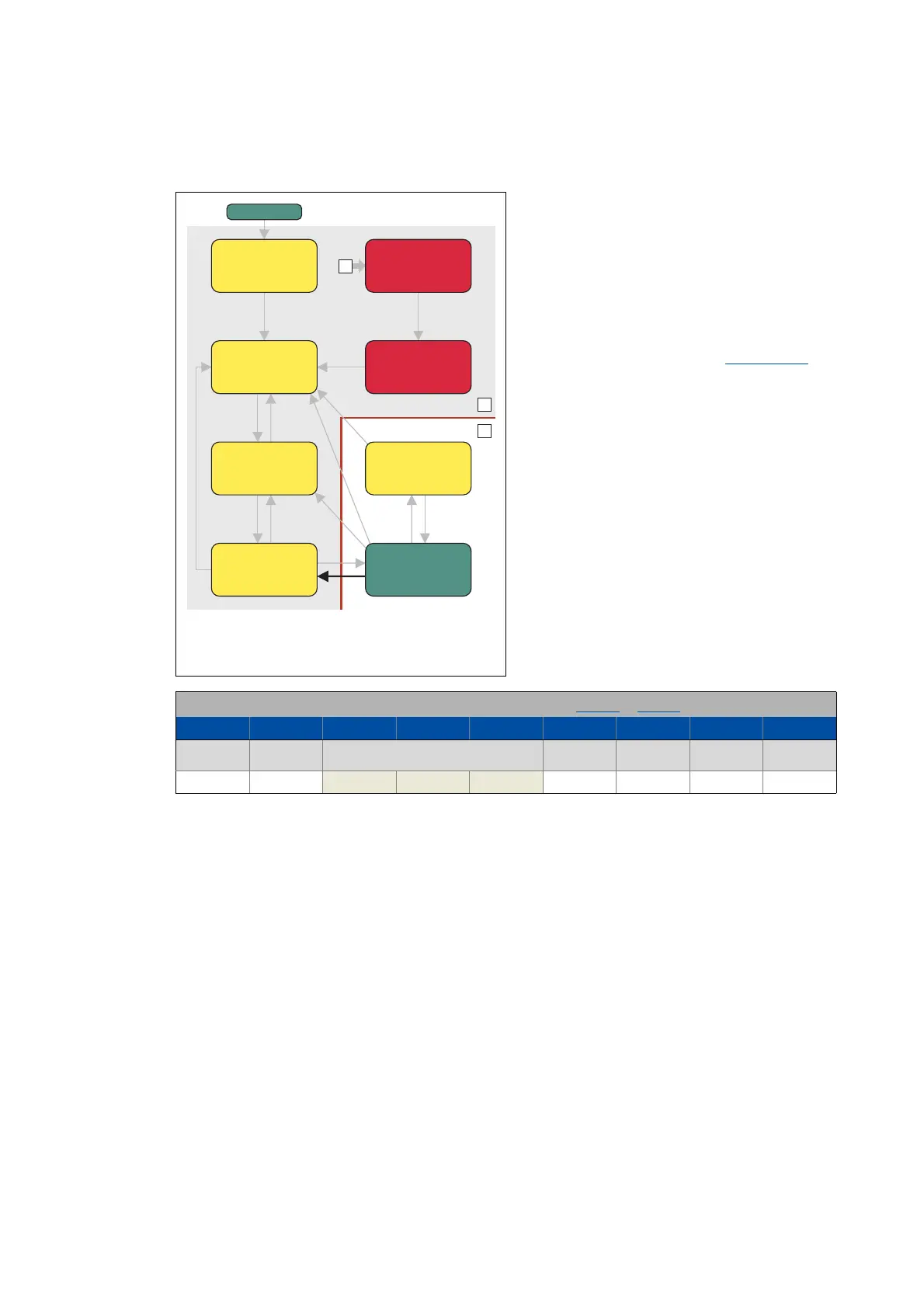

1
2
0
Ready to
switch on
Not ready to
switch on
Switched
on
Operation
enabled
Fault reaction
active
Fault
Switch-on
disabled
Quick stop
active
Power-on

Lenze i700 Specifications

General

Control Type	Vector control, V/f control
Safety	STO (Safe Torque Off)
Protection Class	IP20
Frequency	50/60 Hz
Communication Interfaces	CANopen
Cooling	Air cooled
Protection Features	Overvoltage, Undervoltage
Ambient Temperature	-10°C to +45°C
Frequency Range	0 Hz to 300 Hz
Supply Voltage	3-phase AC
