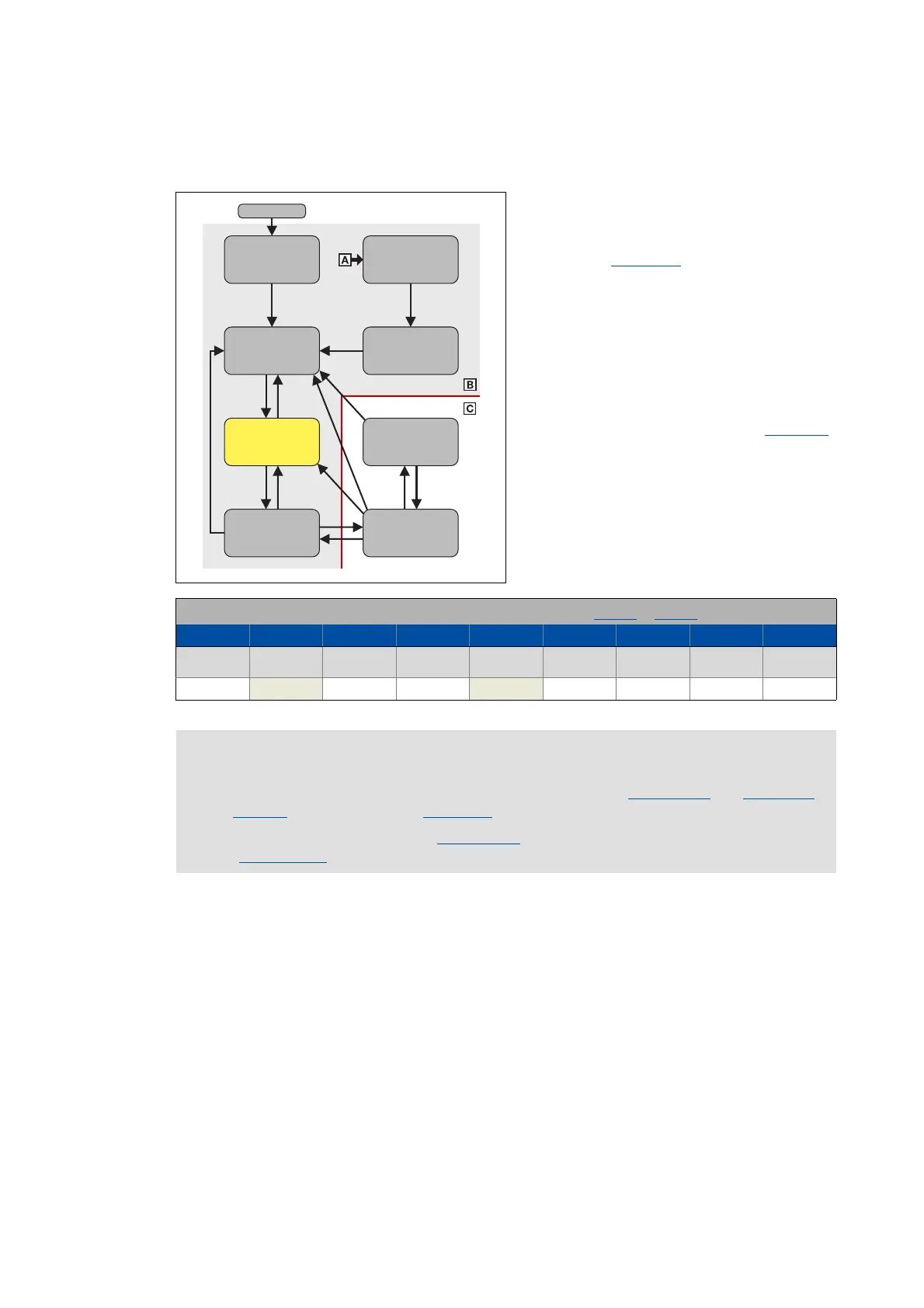

7 CiA402 device profile
7.4 Device control
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
7.4.2.3 Ready to switch on
This is the device status of the Servo-Inverter
i700 after the device has been initialised
successfully and after the servo inverter has
received the "Shutdown
" command.
• The process data monitoring is active.
• Communication is possible.
• DC-bus voltage is available.
• The Servo-Inverter i700 can be
parameterised.
• If the internal holding brake control is
active in the i700 servo inverter (0x2820:1
= 0), the motor brake is closed!
• The operation is inhibited.
Bit pattern for the "Ready to switch on" device status in the Statusword (0x6041 or 0x6841 for axis B):
Bits 15 - 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
Warning is
active
Switch on
disabled
Quick stop Voltage
enabled
Fault active Operation
enabled
Switched on Ready to
switch on
X X01X0001
 Note!
A changeover to this device status is also effected if, in the Switched on" or "Operation
enabled" device status, the "Shutdown" command is activated.
The change to the sequential "Switched on
" state is effected by activation of the
"Switching on
" command.
Ready to
switch on
Not ready to
switch on
Switched
on
Operation
enabled
Fault reaction
active
Fault
active
Switch on
disabled
Quick stop
active
Power on
