Remote Control

R&S

ESR

1037User Manual 1175.7068.02 ─ 12

length: 28800

number of periods: 3

gap: 3800 samples

Program

:TRACe1:IQ ON

trace:iq:set NORM,0,3200000,IFP,POS,0,228000

:TRIGger1:SEQuence:LEVel:IFPower -20

:TRACe1:IQ:EGATe ON

:TRACe1:IQ:EGATe:TYPE EDGE

:TRACe1:IQ:EGATe:LENGth 28800

:TRACe1:IQ:EGATe:NOF 3

:TRACe1:IQ:EGATe:GAP 3800

Result

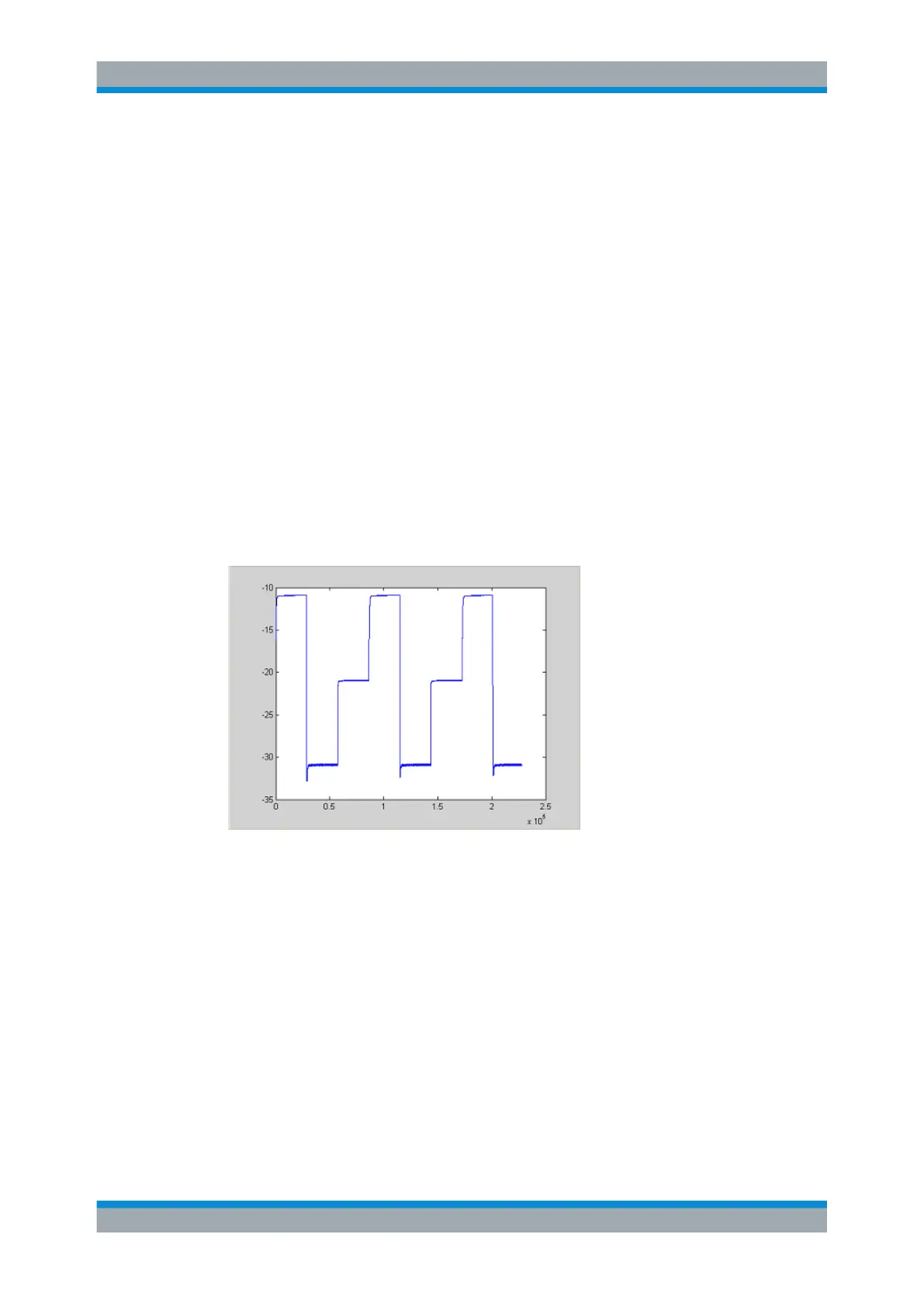

Figure 11-14: Result: periodic power ramp levels

11.17.16

Usage of Four Spectrum Instances

As of R&S ESR firmware version 1.50, you can open up to four tabs for spectrum

mode with the softkey "New Spectrum" in the "MODE" menu. The following remote

example shows how to set up four tabs with four different measurements on a WCDMA

signal.

REM ************************************************************************

Public Sub 4SpectrumTabs()

result$ = Space$(100)

'--------- R&S FSV default setting -----------------------------------------

CALL SetupStatusReg 'Set status registers

Remote Control – Programming Examples

R&S ESR Series User Manual
